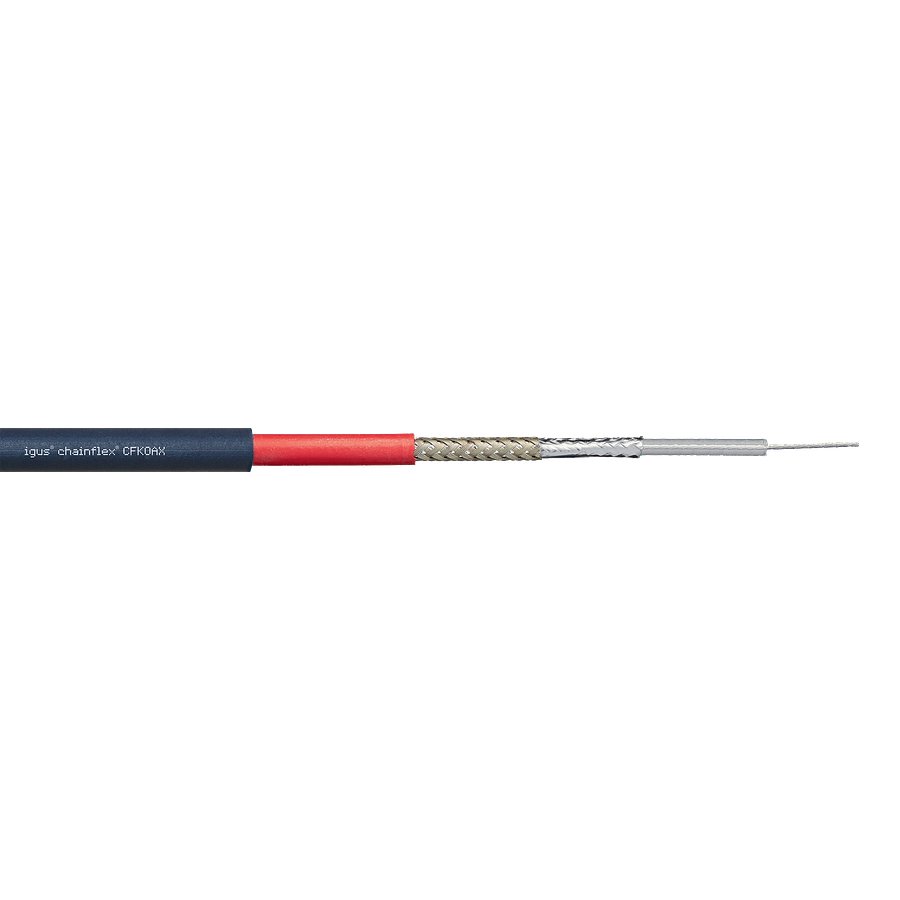

chainflex® CFKOAX coaxial cable
Part numberCFKOAX1.05HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® CFKOAX coaxial cable (part number CFKOAX1.05) is listed under Safety & Detection / Tools. Copper index kg/km: 34 kg/km; Stranding type: coaxial; Wave resistance approx.: 75 Ω; Shipping weight (kg or kg/m): 0.11; Outer diameter (d) max. mm: 10 mm; Weight per km: 110 kg/km.
Technical Specifications
- Manufacturer part number (MPN)
- CFKOAX1.05
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- 5xHF75-0.3/1.6
- Copper index kg/km
- 34 kg/km
- Stranding type
- coaxial
- Wave resistance approx.
- 75 Ω
- Shipping weight (kg or kg/m)
- 0.11
- Outer diameter (d) max. mm
- 10 mm
- Weight per km
- 110 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 100 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 80 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 50 mm
- Temperature e-chain®
- -35°C up to +100°C
- Temperature, flexible
- -50°C to +100°C (according to DIN EN 60811-504)
- Temperature, fixed
- -55°C to +100°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 5 m/s
- a max. (acceleration)
- 100 m/s²
- travel length
- Travels up to 400 m and more
- torsion
- No Torsion
- Conductor
- Multi-wire; single-wire diameter with pitch length adapted to suit the requirements in e-chains®.
- Core stranding
- Cores wound in a layer with especially short pitch length.
- Overall shield
- Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- Nominal voltage
- 500V (according to DIN VDE 0245)
- Test voltage
- 1500V (according to DIN EN 50395)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
