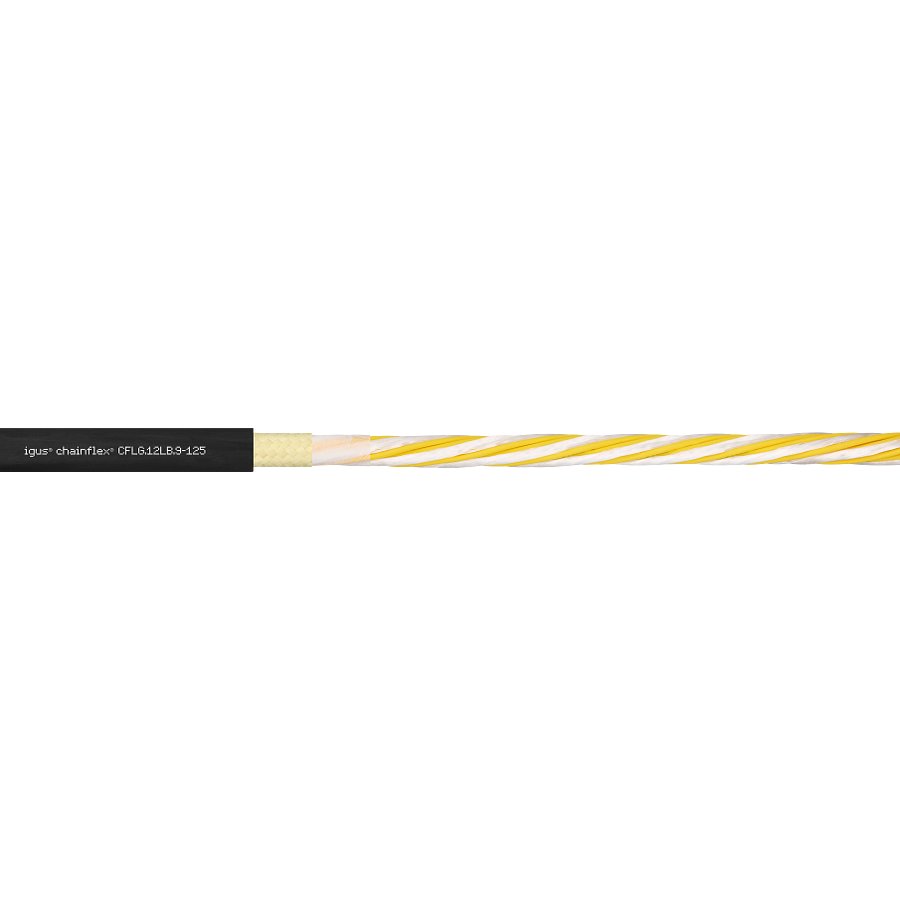

chainflex® fiber optic cable CFLG-LB
Part numberCFLG-12LB-9/125HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® fiber optic cable CFLG-LB (part number CFLG-12LB-9/125) is listed under Safety & Detection / Tools. Fibre type: GOF Single mode; Fibre identification: yellow with black numbers; Core group 1 core structure: 12x9/125; Attenuation [dB/km] @ 1310 nm: ≤ 0,5; Shipping weight (kg or kg/m): 0.15; Outer diameter (d) max. mm: 15 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFLG-12LB-9/125
- Brand
- IGUS
- Category
- Tools
- Fibre type
- GOF Single mode
- Fibre identification
- yellow with black numbers
- number of fibres
- 12
- Core group 1 core structure
- 12x9/125
- Attenuation [dB/km] @ 1310 nm
- ≤ 0,5
- Chromatic dispersion [ps/nm/km] @ 1,310nm
- 3,5
- Chromatic dispersion [ps/nm/km] @ 1,550nm
- 18
- Shipping weight (kg or kg/m)
- 0.15
- Outer diameter (d) max. mm
- 15 mm
- Weight per km
- 125 kg/km
- Min. bend radius, e-chain (factor)
- 5 x d
- Min. bend radius, e-chain
- 75 mm
- Min. bend radius, flexible (factor)
- 4 x d
- Min. bend radius, flexible
- 60 mm
- Min. bend radius, fixed (factor)
- 3 x d
- Min. bend radius, fixed
- 45 mm
- Temperature e-chain®
- -35°C up to +80°C
- Temperature, flexible
- -50°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -55°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported travel distances and up to 100 m for gliding applications
- torsion
- No Torsion
- Core stranding
- FOC cores wound with a short pitch length with high-tensile aramid dampers.
- Overall shield
- Extremely flexible aramid braid for torsion protection.
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
