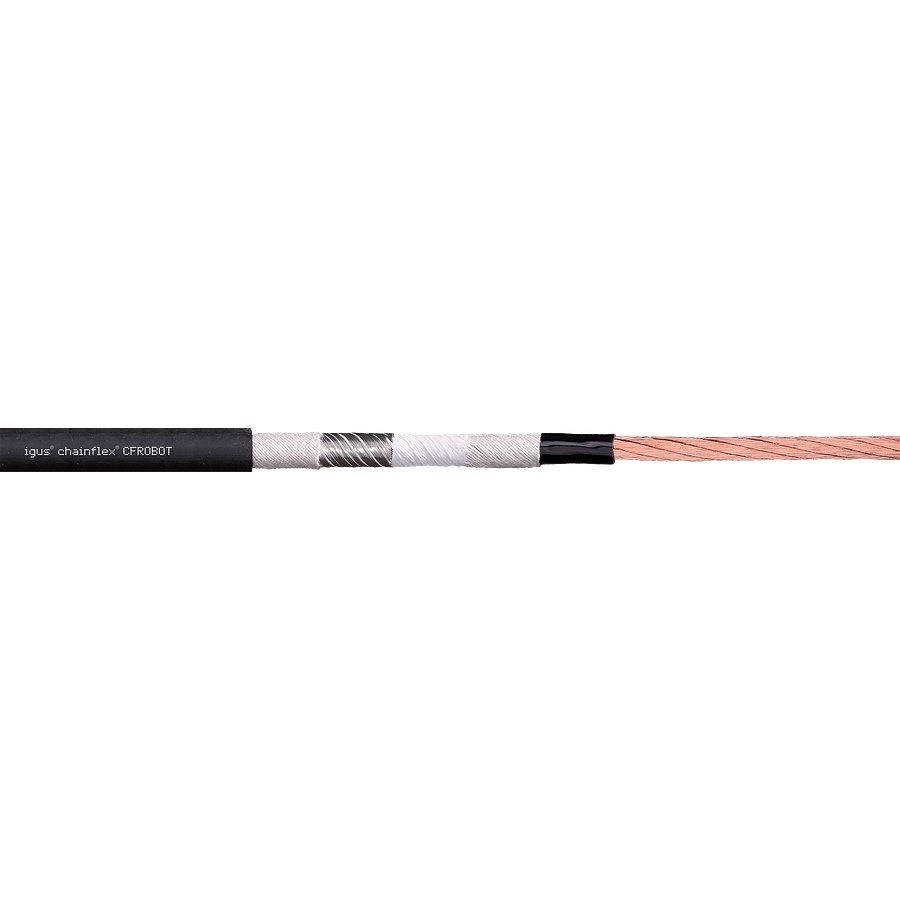

chainflex® motor cable CFROBOT
Part numberCFROBOT.035HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® motor cable CFROBOT (part number CFROBOT.035) is listed under Safety & Detection / Tools. Copper index kg/km: 125 kg/km; Core group 1 core structure: (1x10.0)C; Shipping weight (kg or kg/m): 0.194; Outer diameter (d) max. mm: 10.5 mm; Weight per km: 194 kg/km; Min. bend radius, e-chain: 105 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFROBOT.035
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (1x10)C
- Copper index kg/km
- 125 kg/km
- Core group 1 core structure
- (1x10.0)C
- Shipping weight (kg or kg/m)
- 0.194
- Outer diameter (d) max. mm
- 10.5 mm
- Weight per km
- 194 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 105 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 84 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 52.5 mm
- Temperature e-chain®
- -35°C up to +90°C
- Temperature, flexible
- -45°C to +100°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- travel length
- Robots and motions in 3D area, Class 1
- torsion
- Torsion ±180°, with 1m cable length, Class 3
- Conductor
- Extremely bend-resistant cable.
- Core insulation
- Mechanically high-quality TPE mixture.
- Overall shield
- Extremely torsion-resistant, tinned copper shield. Cover approx. 90% optical
- Outer jacket
- Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00863/20
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF34.UL.25.04.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10258 and 21387, 1000 V, 90 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
Standards & Compliance
- HS Code
- 8544.49
Cross References
- OEM-URL https://www.igus.com/product/CFROBOT
