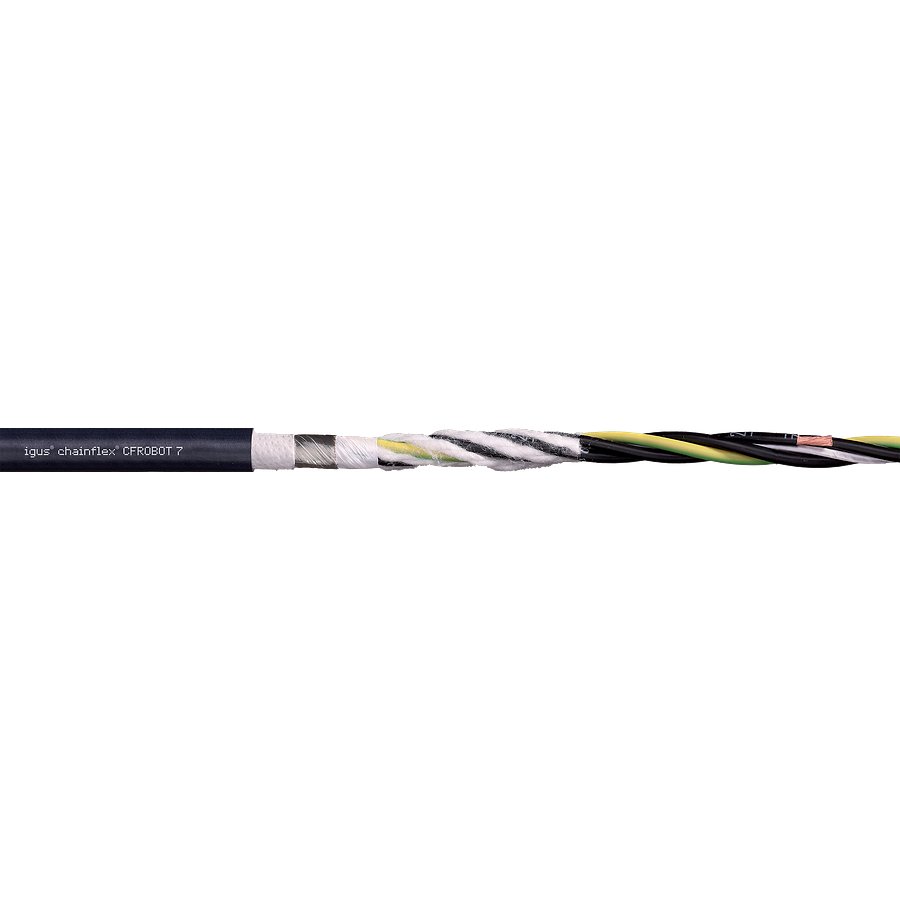

chainflex® motor cable CFROBOT7
Part numberCFROBOT7.15.03.CHS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® motor cable CFROBOT7 (part number CFROBOT7.15.03.C) is listed under Safety & Detection / Tools. Protective conductor: with green-yellow earth core; Copper index kg/km: 61 kg/km; Shipping weight (kg or kg/m): 0.098; Outer diameter (d) max. mm: 8.5 mm; Weight per km: 98 kg/km; Min. bend radius, e-chain: 85 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFROBOT7.15.03.C
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (3G1.5)C
- Protective conductor
- with green-yellow earth core
- Copper index kg/km
- 61 kg/km
- Shipping weight (kg or kg/m)
- 0.098
- Outer diameter (d) max. mm
- 8.5 mm
- Weight per km
- 98 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 85 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 68 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 42.5 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- travel length
- Robots and motions in 3D area, Class 1
- torsion
- Torsion ±180°, with 1m cable length, Class 3
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Overall shield
- Extremely torsion-resistant, tinned copper shield. Cover approx. 85% optical
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00863/20
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2 / Horizontal Flame, FT4
- NFPA
- According to NFPA 79-2018, chapter 12.9
- UKCA
- In accordance with the valid regulations of the United Kingdom (as of 08/2021)
Standards & Compliance
- HS Code
- 8544.49
