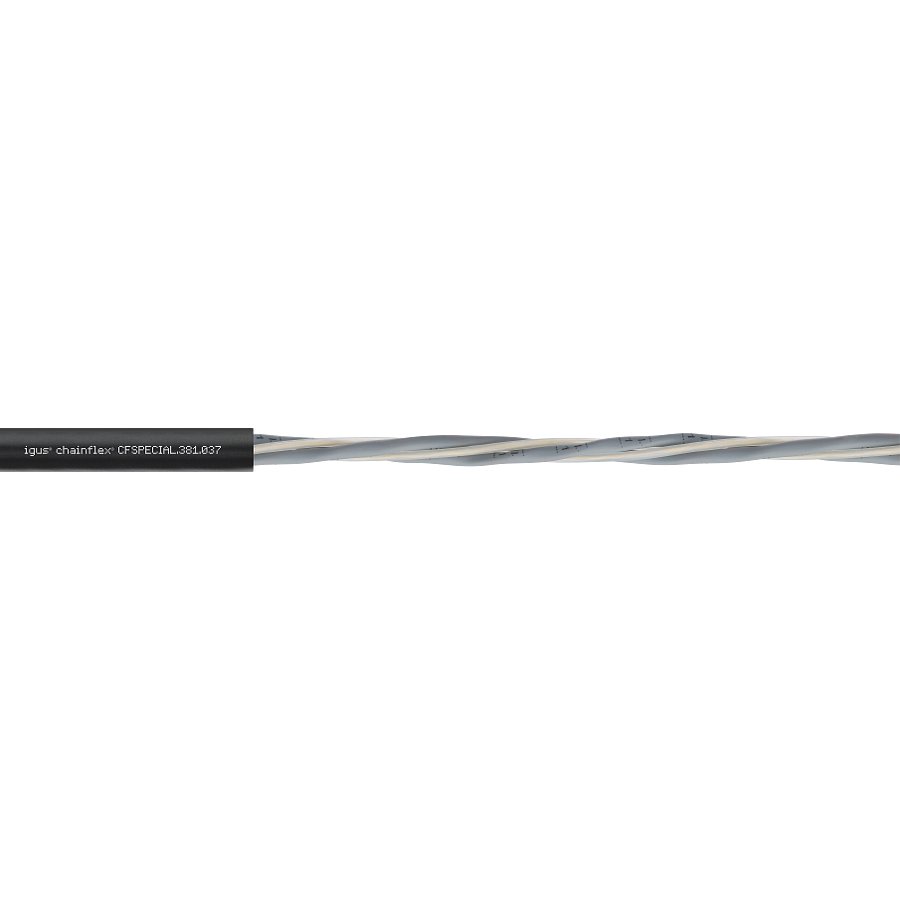

CFSPECIAL381 (CFSPECIAL.381.037)
Pricing
Request a quote
We reply within 24 hours
Product Description
Buy bus cable for theatre and stage technology online ✓ Without cutting charge ✓ Available from stock ✓ Ready to ship in 36 hours ✓ For moving applications
Technical Specifications
- Manufacturer part number (MPN)
- CFSPECIAL.381.037
- Brand
- IGUS
- Category
- Tools
- Bus system
- Microphone/DMX
- Number of cores and conductor nominal cross-section
- 2x(2x0,25)C
- Copper index kg/km
- 29 kg/km
- Shipping weight (kg or kg/m)
- 0.124
- Outer diameter (d) max. mm
- 11.5 mm
- Weight per km
- 124 kg/km
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 143.75 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, fixed (factor)
- 7 x d
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 30 m/s²
- travel length
- For hanging applications up to 30 m
- torsion
- No Torsion
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core stranding
- According to bus specification
- Inner jacket
- TPE mixture adapted to suit the requirements in e-chains®.
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical
- Outer jacket
- Low-adhesion PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 50V
- UV resistance
- Medium
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 11704 and 2532, 30 V, 80 °C
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
