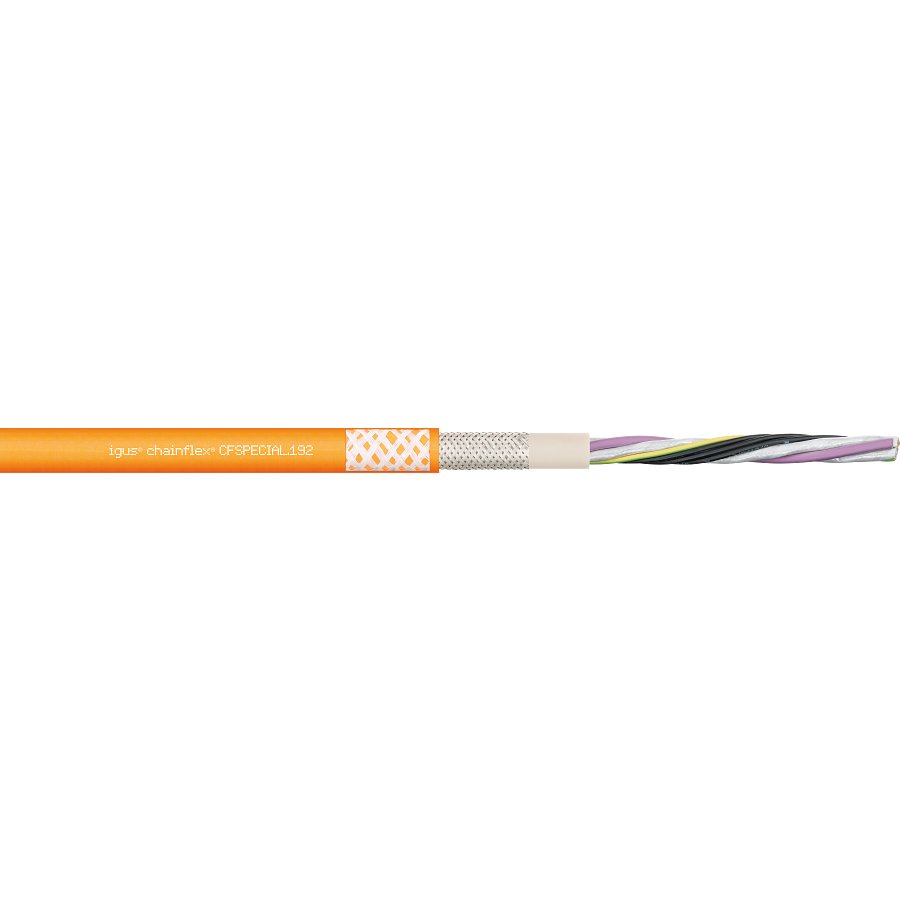

chainflex® PUR hybrid cable for hanging applications CFSPECIAL.192
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® PUR hybrid cable for hanging applications CFSPECIAL.192 (part number CFSPECIAL.192.H207.15.04.D) is listed under Safety & Detection / Tools. Protective conductor: with green-yellow earth core; Copper index kg/km: 199 kg/km; Shipping weight (kg or kg/m): 0.377; Outer diameter (d) max. mm: 17 mm; Weight per km: 377 kg/km; Min. bend radius, e-chain: 170 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFSPECIAL.192.H207.15.04.D
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (4G1.5+2x(2x1.0)C+HF50-0.9/2.95)C
- Protective conductor
- with green-yellow earth core
- Copper index kg/km
- 199 kg/km
- Shipping weight (kg or kg/m)
- 0.377
- Outer diameter (d) max. mm
- 17 mm
- Weight per km
- 377 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 170 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 136 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 85 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 50 m/s²
- travel length
- For hanging applications up to 50 m
- torsion
- No Torsion
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality, especially low-capacity XLPE mixture.HF50-0.9/2.95: special PE mixture.
- Core stranding
- Power cores and control pair elements wound with a short pitch length around a high tensile strength centre element.
- Inner jacket
- TPE mixture adapted to suit the requirements in e-chains®.
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical
- Element shield
- Flexible braiding made of tinned copper wires.
- Outer jacket
- Low-adhesion mixture on the basis of PUR, highly abrasion and bend-resistant, adapted to suit the requirements in hanging applications (according to DIN EN 50363-10-2).
- Outer jacket colour
- Pastel orange (comparable to RAL 2003)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- DESINA
- According to VDW, DESINA standardisation
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- Offshore
- MUD-resistant according to NEK 606 - status 2018
