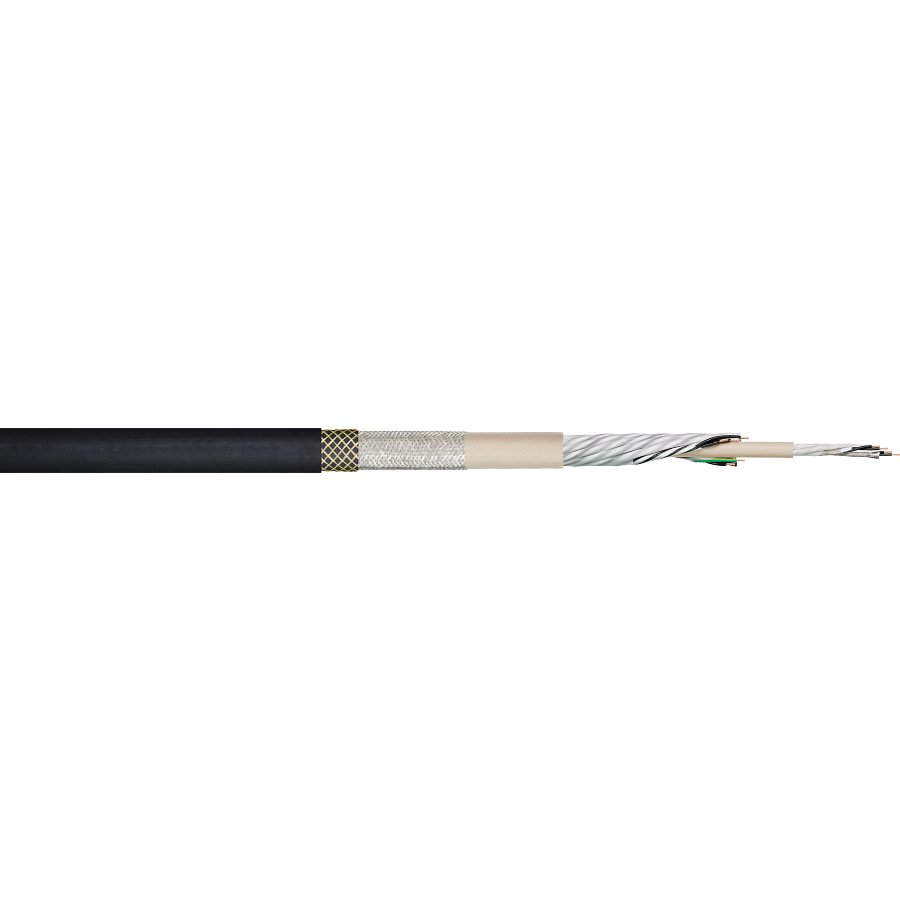

chainflex® hybrid cable for top drive applications CFSPECIAL.592
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® hybrid cable for top drive applications CFSPECIAL.592 (part number CFSPECIAL.592.001) is listed under Safety & Detection / Tools. Copper index kg/km: 1750 kg/km; Shipping weight (kg or kg/m): 2.63; Outer diameter (d) max. mm: 44 mm; Weight per km: 2630 kg/km; Min. bend radius, e-chain: 440 mm; Min. bend radius, flexible: 352 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFSPECIAL.592.001
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (30G4.0+4x(2x2.5)C)C
- Copper index kg/km
- 1750 kg/km
- Shipping weight (kg or kg/m)
- 2.63
- Outer diameter (d) max. mm
- 44 mm
- Weight per km
- 2630 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 440 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 352 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 220 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 50 m/s²
- travel length
- For hanging applications up to 50 m
- Conductor
- Conductor cable made of stranded wires (according to DIN EN 60228).
- Overall shield
- Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
- Outer jacket
- Low-adhesion, halogen-free PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- CE
- According to 2014/35/EU
- DNV
- Type Approval Certificate TAE00004KR
