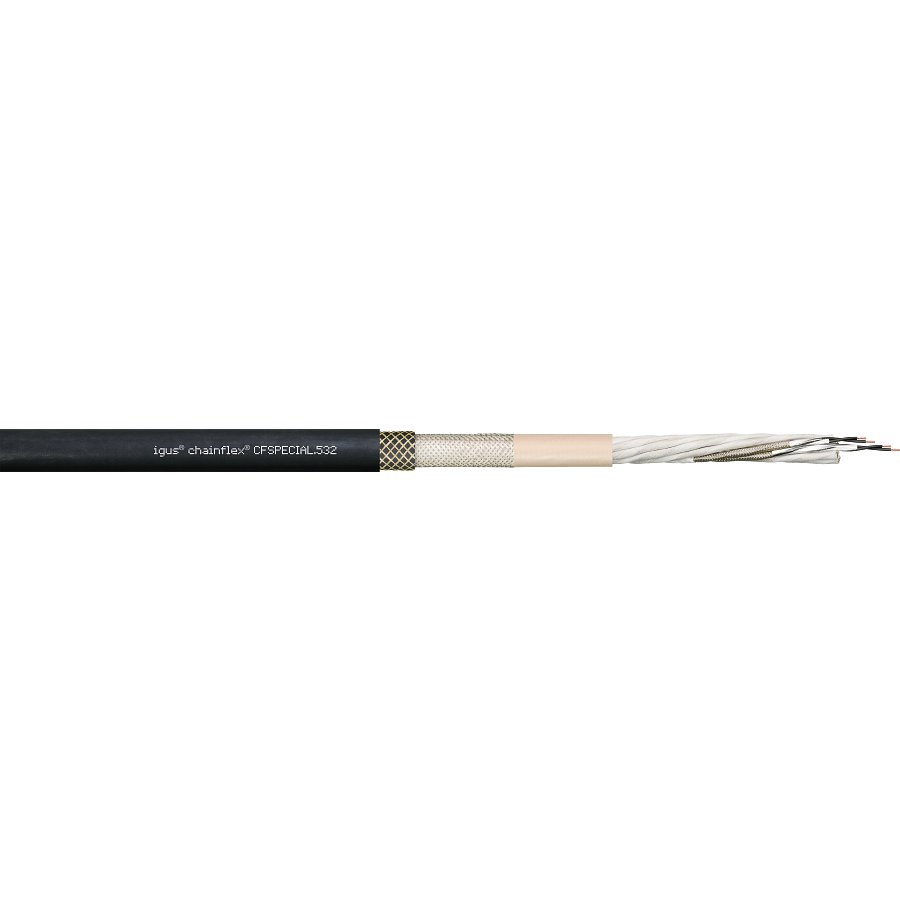

chainflex® data cable CFSPECIAL.532
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® data cable CFSPECIAL.532 (part number CFSPECIAL.532.15.08.02) is listed under Safety & Detection / Tools. Protective conductor: with green-yellow earth core; Copper index kg/km: 513 kg/km; Shipping weight (kg or kg/m): 1.014; Outer diameter (d) max. mm: 30 mm; Weight per km: 1014 kg/km; Min. bend radius, e-chain: 300 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFSPECIAL.532.15.08.02
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (8x(2x1.5)C)C
- Protective conductor
- with green-yellow earth core
- Copper index kg/km
- 513 kg/km
- Shipping weight (kg or kg/m)
- 1.014
- Outer diameter (d) max. mm
- 30 mm
- Weight per km
- 1014 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 300 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 240 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 150 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 2 m/s
- a max. (acceleration)
- 50 m/s²
- travel length
- cf_class_travel_15
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality, especially low-capacity XLPE mixture.
- Core stranding
- Cores twisted in pairs with short pitch lengths, core pairs then wound with short pitch lengths.
- Inner jacket
- TPE mixture adapted to suit the requirements in e-chains®.
- Overall shield
- Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
- Outer jacket
- High strength aramid braiding embedded in the PUR-outer jacket.
- Outer jacket colour
- Jet black (comparable to RAL 9005)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2)
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10492 and 10835, 1000 V, 80 °C
- UL verified
- Certificate no. B129699: "igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- DNV
- Type Approval Certificate TAE00004G4
- NFPA
- According to NFPA 79-2018, chapter 12.9
- Offshore
- MUD-resistant according to NEK 606 - status 2018
