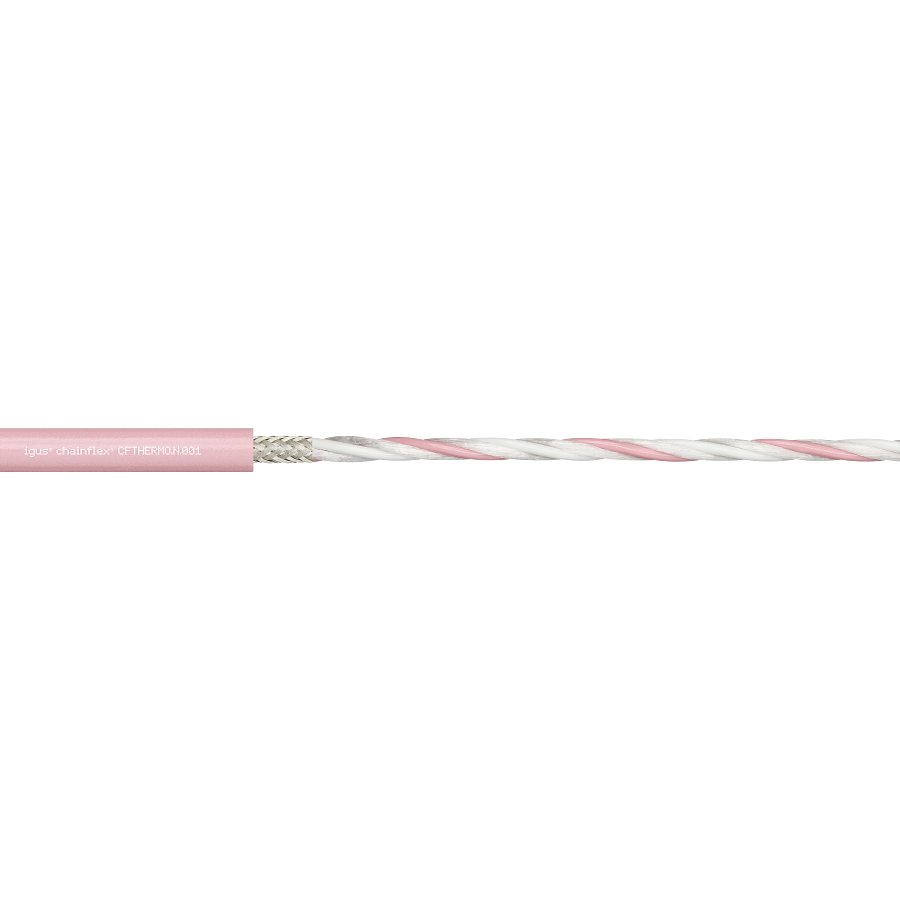

chainflex® CFTHERMO thermocouple cable
Part numberCFTHERMO.N.001HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
For high demands, PUR outer jacket, UV/oil and coolant-resistant, notch-resistant.
Technical Specifications
- Manufacturer part number (MPN)
- CFTHERMO.N.001
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (2x0.23)C
- Copper index kg/km
- 39 kg/km
- Thermo materials
- NiCrSi-NiSi
- Shipping weight (kg or kg/m)
- 0.039
- Outer diameter (d) max. mm
- 5.5 mm
- Min. bend radius, e-chain (factor)
- 12.5 x d
- Min. bend radius, e-chain
- 68.75 mm
- Min. bend radius, flexible (factor)
- 10 x d
- Min. bend radius, flexible
- 55 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 27.5 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 2 m/s
- v max. gliding (speed)
- 1 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Travels up to 50 m
- torsion
- No Torsion
- Conductor
- Conductor consisting of a highly flexible special alloy.
- Liner
- Fleece taping over the external layer.
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Light pink (comparable to RAL 3015)
- Nominal voltage
- 300/300V (according to DIN VDE 0298-3)
- Test voltage
- 1500V
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00300/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. B129699: "The igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- DESINA
- no
Standards & Compliance
- HS Code
- 8544.49
Cross References
- OEM-URL https://www.igus.com/product/CFTHERMO
More from igus
igus

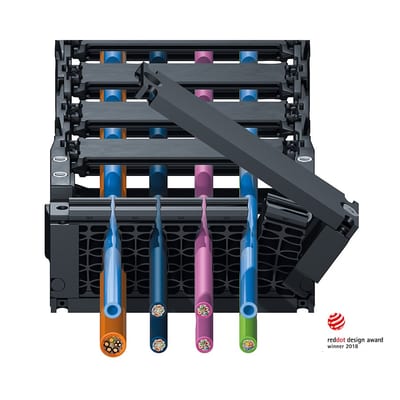

CFU.V Honeycomb Strain Relief
CFU.V.64.40.125.25.01
igus

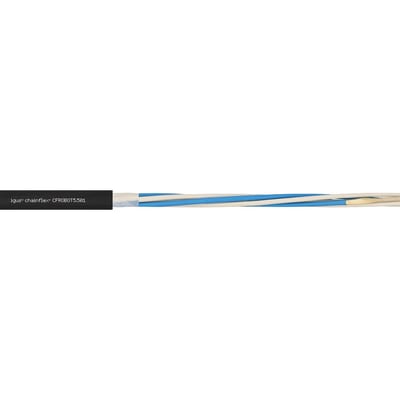

chainflex® fiber optic cable CFROBOT5
CFROBOT5.501
igus

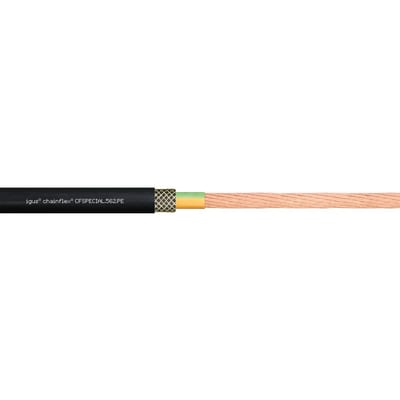

chainflex® motor cable CFSPECIAL.562.PE
CFSPECIAL.562.PE.700.01
igus

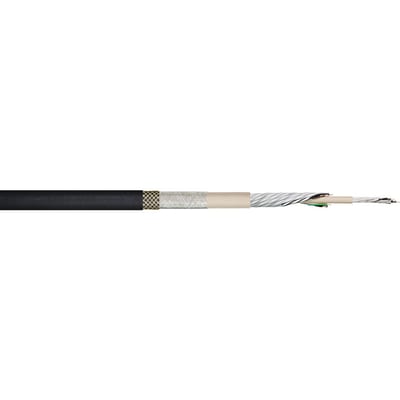

chainflex® hybrid cable for top drive applications CFSPECIAL.592
CFSPECIAL.592.001
igus
CFX38 Chainfix strain relief clamps
CFX38.1K
igus
CFX46 Chainfix strain relief clamps
CFX46-1-E
igus

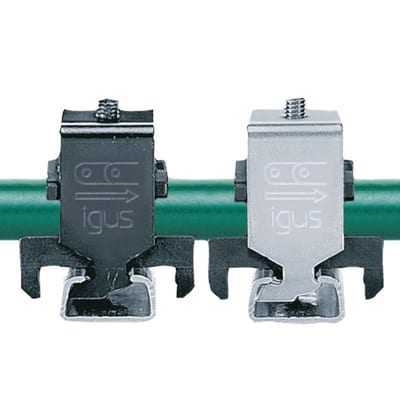

CFX50 Chainfix strain relief clamps
CFX50-1-E
igus

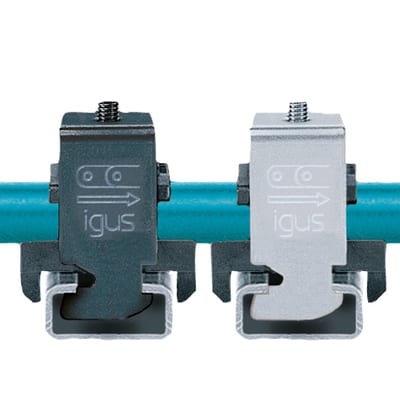

CFXL16 Chainfix strain relief clamps
