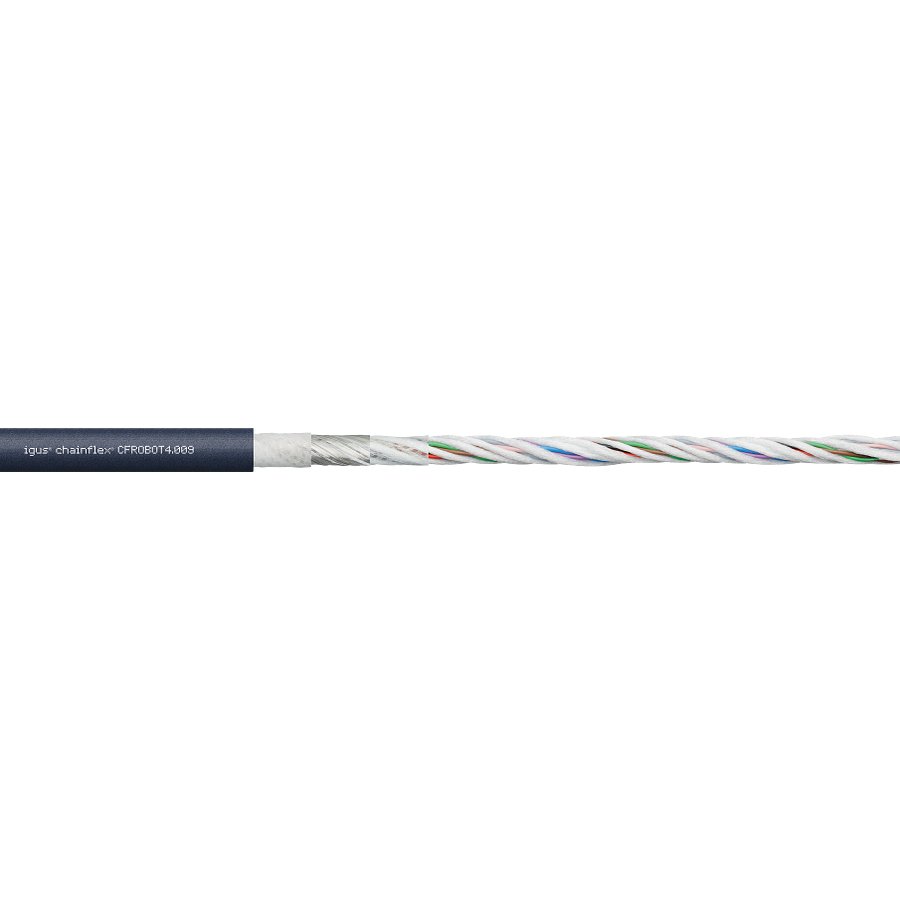

chainflex® servo motor feedback cable CFROBOT4

igus chainflex® servo motor feedback cable CFROBOT4 (part number CFROBOT4.009) is listed under Safety & Detection / Tools. Copper index kg/km: 48 kg/km; Core group 1 core structure: 4x(2x0.25); Core group 1 colour code: brown/green, blue/violet, grey/pink, red/black; Core group 2 core structure: 2x0.5; Core group 2 colour code: white, brown; Shipping weight (kg or kg/m): 0.09.

Manufacturer part number (MPN)

CFROBOT4.009

Brand

IGUS

Category

Tools

Number of cores and conductor nominal cross-section

(4x(2x0.25)+(2x0.5))C

Copper index kg/km

48 kg/km

Core group 1 core structure

4x(2x0.25)

Core group 1 colour code

brown/green, blue/violet, grey/pink, red/black

Core group 2 core structure

2x0.5

Core group 2 colour code

white, brown

Shipping weight (kg or kg/m)

0.09

Outer diameter (d) max. mm

9 mm

Weight per km

90 kg/km

Min. bend radius, e-chain (factor)

10 x d

Min. bend radius, e-chain

90 mm

Min. bend radius, flexible (factor)

8 x d

Min. bend radius, flexible

72 mm

Min. bend radius, fixed (factor)

5 x d

Min. bend radius, fixed

45 mm

Temperature e-chain®

-25°C up to +80°C

Temperature, flexible

-40°C to +80°C (according to DIN EN 60811-504)

Temperature, fixed

-50°C to +80°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

travel length

Robots and motions in 3D area, Class 1

torsion

Torsion ±180°, with 1m cable length, Class 3

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

According to measuring system specification

Overall shield

Extremely torsion-resistant, tinned copper shield. Cover approx. 80% optical

Element shield

Extremely torsion-resistant tinned wound copper shield.

Outer jacket

Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).

Outer jacket colour

Steel blue (comparable to RAL 5011)

Nominal voltage

50V

Test voltage

500V

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 50363-10-2), Class 3

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

EAC

Certificate No. RU C-DE.ME77.B.00295/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 1589 and 20236, 30 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

HS Code

8544.49
