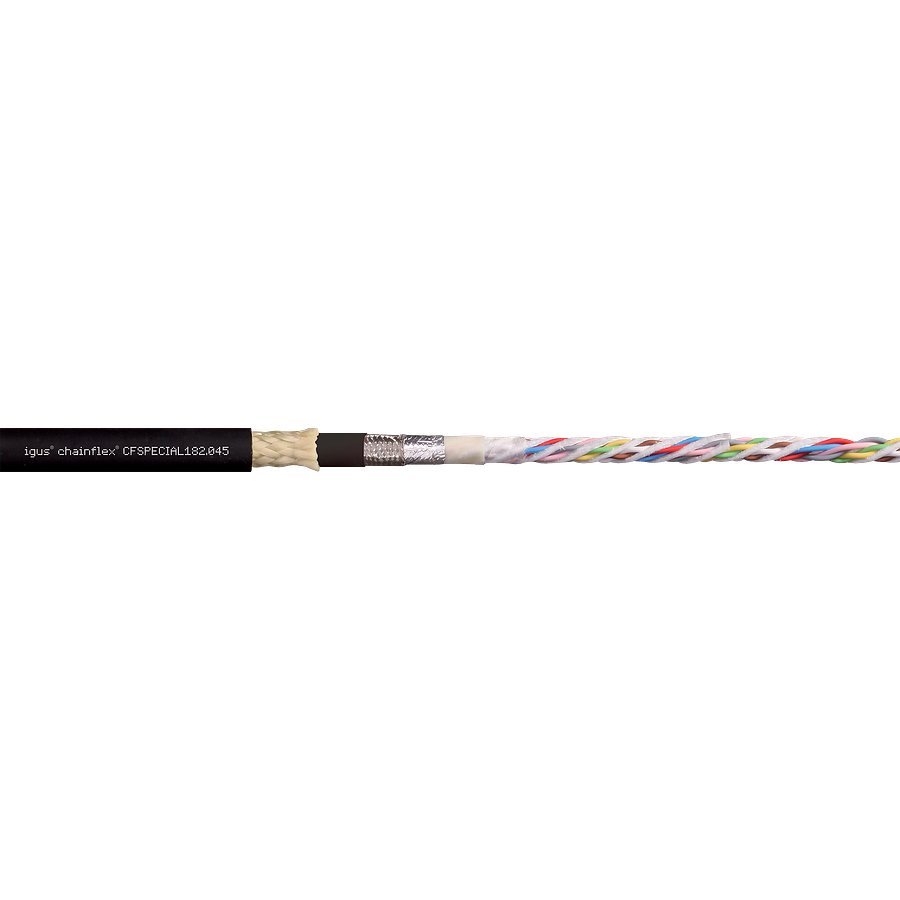

chainflex® PUR bus cable for hanging CFSPECIAL-182 applications
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® PUR bus cable for hanging CFSPECIAL-182 applications (part number CFSPECIAL.182.060) is listed under Safety & Detection / Tools. Bus system: Profinet; Copper index kg/km: 37 kg/km; Shipping weight (kg or kg/m): 0.125; Outer diameter (d) max. mm: 8.5 mm; Weight per km: 125 kg/km; Min. bend radius, e-chain: 85 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFSPECIAL.182.060
- Brand
- IGUS
- Category
- Tools
- Bus system
- Profinet
- Number of cores and conductor nominal cross-section
- (4x0.38)C
- Copper index kg/km
- 37 kg/km
- Core group 1 colour code
- white, orange, blue, yellow (star-quad stranding)
- Shipping weight (kg or kg/m)
- 0.125
- Outer diameter (d) max. mm
- 8.5 mm
- Weight per km
- 125 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 85 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 68 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 42.5 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- a max. (acceleration)
- 100 m/s²
- travel length
- For hanging applications up to 50 m
- torsion
- No Torsion
- Conductor
- Fine-wire stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- According to bus specification.
- Core stranding
- According to bus specification
- Inner jacket
- TPE mixture adapted to suit the requirements in e-chains®.
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical
- Outer jacket colour
- Yellow-green (comparable to RAL 6018)
- Nominal voltage
- 50V
- Test voltage
- 500V
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.01218
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10138 and 20233, 300 V, 80 °C
- UL verified
- Certificate no. B129699: "igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- Offshore
- MUD-resistant according to NEK 606 - status 2018
