igus

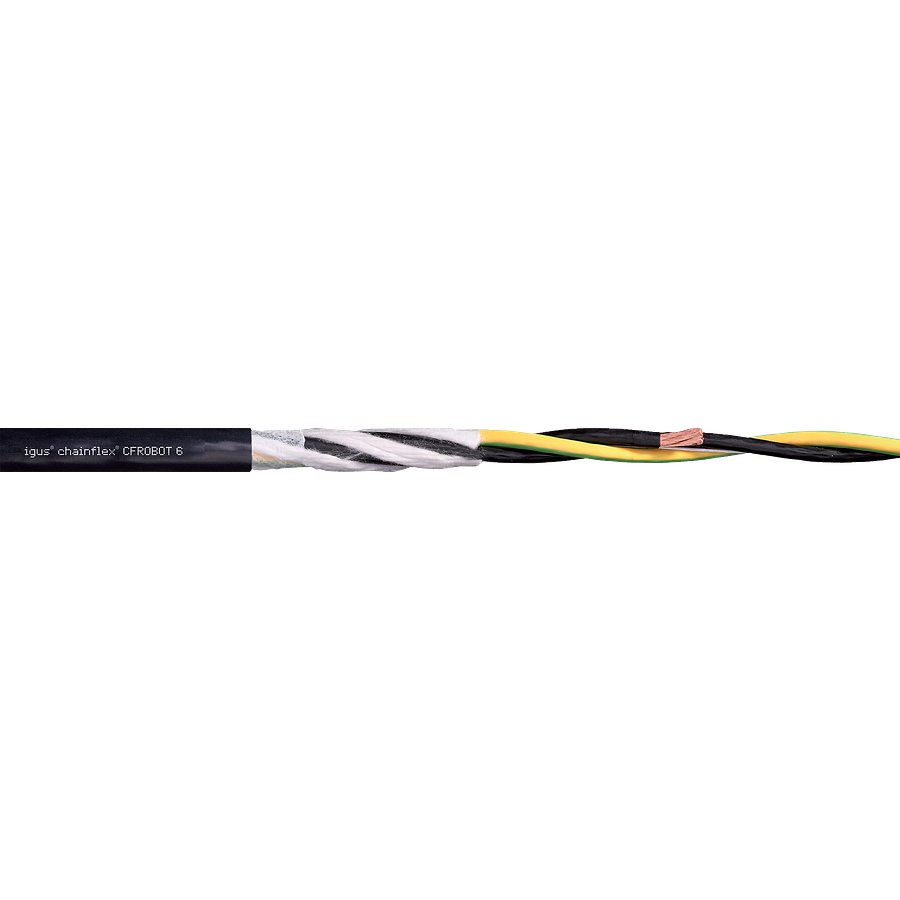

chainflex® motor cable CFROBOT6
Part numberCFROBOT6.160.03HS code8544.49
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® motor cable CFROBOT6 (part number CFROBOT6.160.03) is listed under Safety & Detection / Tools. Protective conductor: with green-yellow earth core; Copper index kg/km: 475 kg/km; Shipping weight (kg or kg/m): 0.578; Outer diameter (d) max. mm: 18 mm; Weight per km: 578 kg/km; Min. bend radius, e-chain: 180 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFROBOT6.160.03
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- 3G16
- Protective conductor
- with green-yellow earth core
- Copper index kg/km
- 475 kg/km
- Shipping weight (kg or kg/m)
- 0.578
- Outer diameter (d) max. mm
- 18 mm
- Weight per km
- 578 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 180 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 144 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 90 mm
- Temperature e-chain®
- -25°C up to +80°C
- Temperature, flexible
- -40°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -50°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- travel length
- Robots and motions in 3D area, Class 1
- torsion
- Torsion ±180°, with 1m cable length, Class 3
- Conductor
- Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality TPE mixture.
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Outer jacket colour
- Steel blue (comparable to RAL 5011)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- UV resistance
- High
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- EAC
- Certificate No. RU C-DE.ME77.B.00863/20
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10492 and 21223, 1000 V, 80 °C
- UL verified
- Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
Standards & Compliance
- HS Code
- 8544.49
