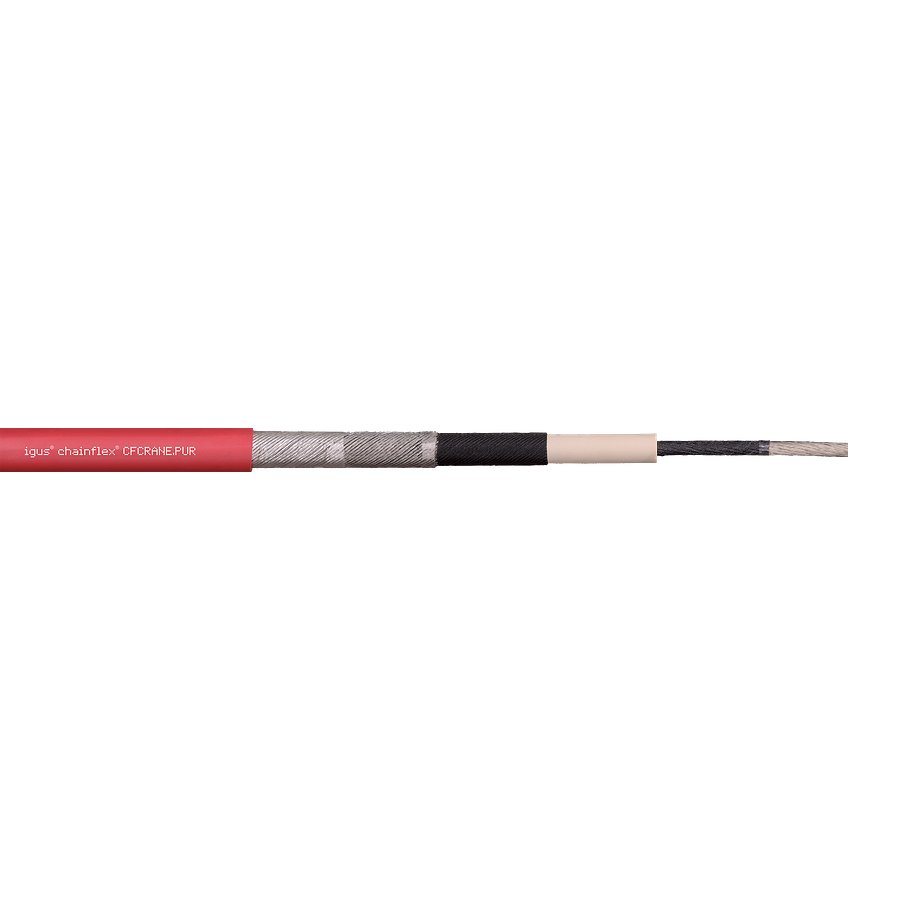

chainflex® motor cable CFCRANE PUR
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® motor cable CFCRANE PUR (part number CFCRANE.PUR.350.01.6/10KV) is listed under Safety & Detection / Tools. Copper index kg/km: 568 kg/km; Shipping weight (kg or kg/m): 0.852; Outer diameter (d) max. mm: 24.5 mm; Weight per km: 852 kg/km; Min. bend radius, e-chain: 260 mm; Min. bend radius, flexible: 208 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFCRANE.PUR.350.01.6/10KV
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (1x35/16)C
- Copper index kg/km
- 568 kg/km
- Shipping weight (kg or kg/m)
- 0.852
- Outer diameter (d) max. mm
- 24.5 mm
- Weight per km
- 852 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 260 mm
- Min. bend radius, flexible (factor)
- 8 x d
- Min. bend radius, flexible
- 208 mm
- Min. bend radius, fixed (factor)
- 5 x d
- Min. bend radius, fixed
- 130 mm
- Temperature e-chain®
- -20°C up to +80°C
- Temperature, flexible
- -25°C to +80°C (according to DIN EN 60811-504)
- Temperature, fixed
- -30°C to +80°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- a max. (acceleration)
- 50 m/s²
- travel length
- Travels up to 400 m and more
- torsion
- No Torsion
- Conductor
- Highly flexible cable consisting of bare copper wires (according to DIN EN 60228).
- Overall shield
- Extremely bend-resistant braiding made of tinned copper wires Coverage approx. 85% optical
- Outer jacket
- Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
- Nominal voltage
- 6/10 kV (according to DIN VDE 0250), other voltages on request.
- Test voltage
- 17 kV (according to DIN VDE 0250, part 813)
- UV resistance
- Medium
- Oil resistance
- Oil-resistant (according to DIN EN 50363-10-2), Class 3
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to DIN EN 60754
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2
