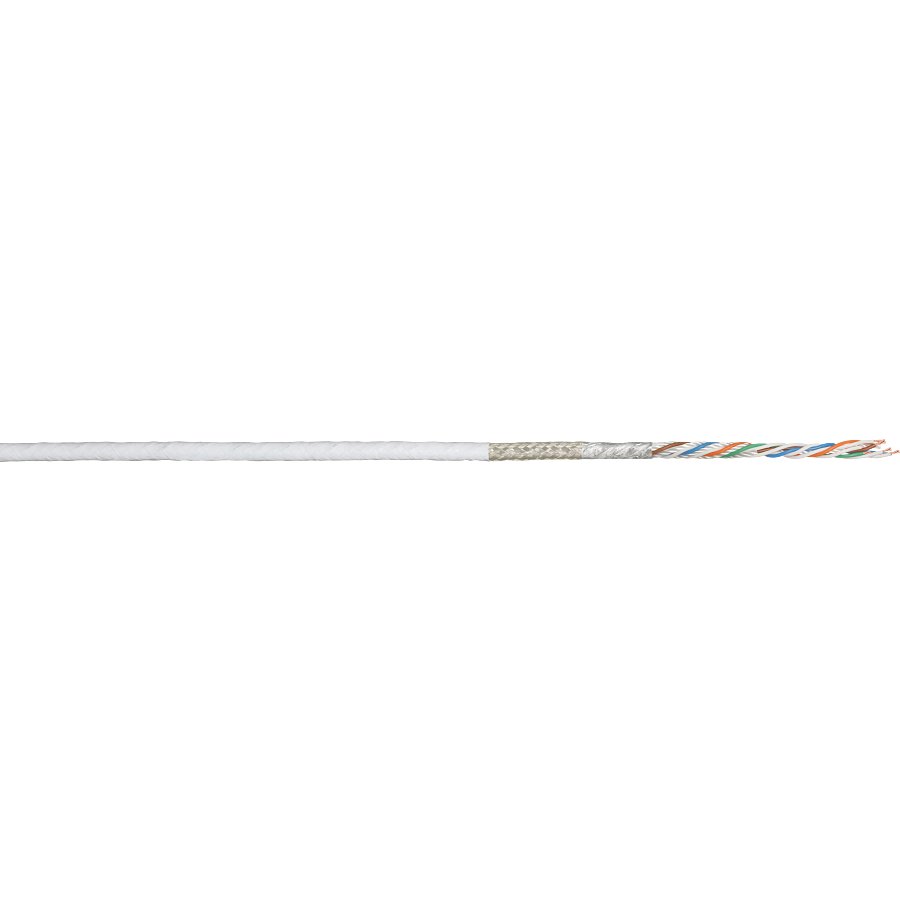

chainflex® CFCLEAN8 (CFCLEAN8.045)
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® CFCLEAN8 (CFCLEAN8.045) is listed under Safety & Detection / Tools. Bus system: Ethernet/CAT5; Copper index kg/km: 34 kg/km; Core group 1 core structure: 4x(2x0.14); Wave resistance approx.: 100 Ω; Shipping weight (kg or kg/m): 0.047; Outer diameter (d) max. mm: 5.5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CFCLEAN8.045
- Brand
- IGUS
- Category
- Tools
- Bus system
- Ethernet/CAT5
- Number of cores and conductor nominal cross-section
- (4x(2x0.14))C
- Copper index kg/km
- 34 kg/km
- Core group 1 core structure
- 4x(2x0.14)
- Core group 1 colour code
- white/blue, white/orange, white/green, white/brown
- Wave resistance approx.
- 100 Ω
- Shipping weight (kg or kg/m)
- 0.047
- Outer diameter (d) max. mm
- 5.5 mm
- Weight per km
- 47 kg/km
- Min. bend radius, fixed (factor)
- 3 x d
- Min. bend radius, fixed
- 16.5 mm
- Temperature, fixed
- -25°C to +90°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 2 m/s
- a max. (acceleration)
- 40 m/s²
- e-skin® flat temperature
- -10°C to +80°C
- e-skin® flat min. temperature
- -10 °C
- e-skin® flat max. temperature
- 80 °C
- Min. bend radius, e-skin® flat
- 40 mm
- e-skin® flat travel
- 3 m
- Conductor
- Very finely stranded special conductors with an especially soft and bend-resistant design, made of bare copper wires.
- Core insulation
- Mechanically high-quality FEP mixture
- Core stranding
- According to bus specification
- Overall shield
- Bend-resistant braiding made of tinned copper wires. Coverage approx. 70% linear, approx. 90% optical
- Outer film colour
- white
- Nominal voltage
- 300/300V
- Test voltage
- 2000V
- Oil resistance
- No oil resistance
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- Air Cleanliness Class 1, material/assembly tested by IPA according to ISO 14644-14, report IG 2107-1242
- CE
- According to 2014/35/EU
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
Standards & Compliance
- HS Code
- 8544.49
