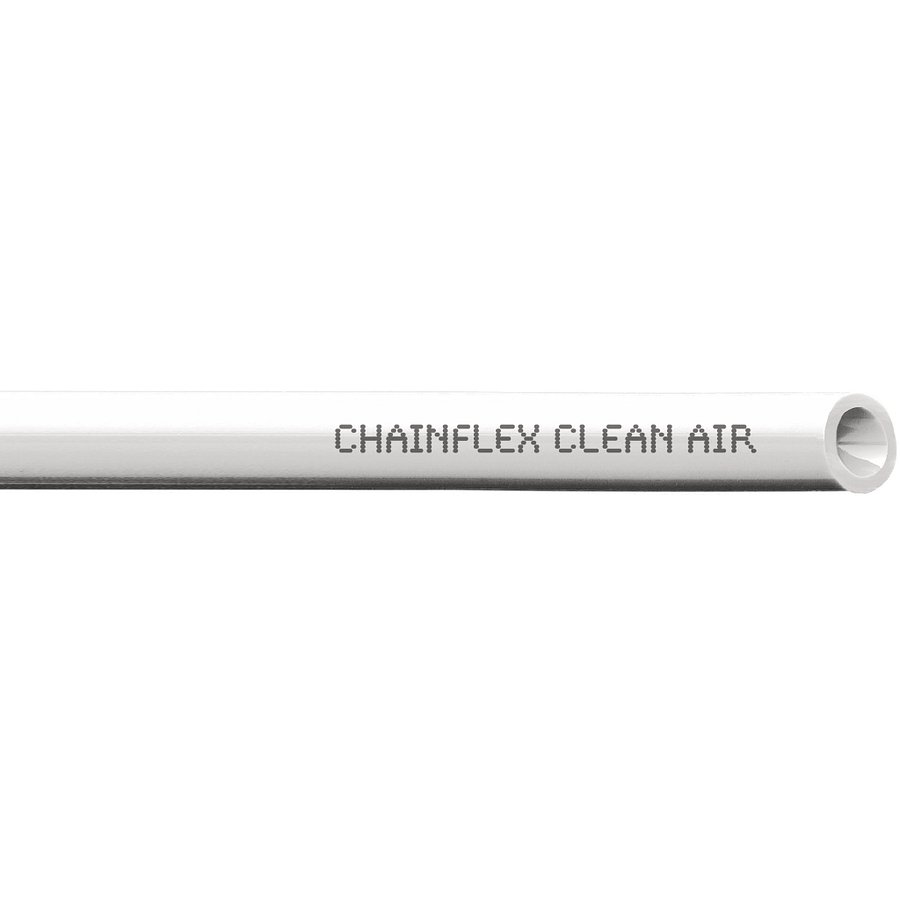

chainflex® Clean Air pneumatic hoses
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® Clean Air pneumatic hoses (part number CAPE.A.04.0) is listed under Safety & Detection / Tools. Dimensions: External tolerances; Colour: grey; Package length max.: 1 km; Inner diameter mm: 2.7 mm; Wall thickness mm: 0.65 mm; Outer diameter (d) max. mm: 4 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CAPE.A.04.0
- Brand
- IGUS
- Category
- Tools
- Material
- Highly abrasion-resistant polyethylene adapted to suit the requirements in e-chains®.
- Dimensions
- External tolerances
- Colour
- grey
- Package length max.
- 1 km
- Inner diameter mm
- 2.7 mm
- Wall thickness mm
- 0.65 mm
- Outer diameter (d) max. mm
- 4 mm
- Weight per km
- 8 kg/km
- Min. bend radius, e-chain (factor)
- 10 x d
- Min. bend radius, e-chain
- 40 mm
- Min. bend radius, fixed (factor)
- 7.5 x d
- Temperature, flexible
- -25°C up to +60°C
- Temperature, fixed
- -30°C to +65°C
- v max. unsupported (speed)
- 10 m/s
- v max. gliding (speed)
- 6 m/s
- Oil resistance
- Oil-resistant
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- Halogen-free
- According to EN 50267-2-1
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- Cleanroom
- According to ISO Class 1, material/hose tested by IPA according to DIN EN ISO standard 14644-1
- UL verified
- Certificate no. B129699: "igus 36-month chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
Standards & Compliance
- HS Code
- 8544.49
