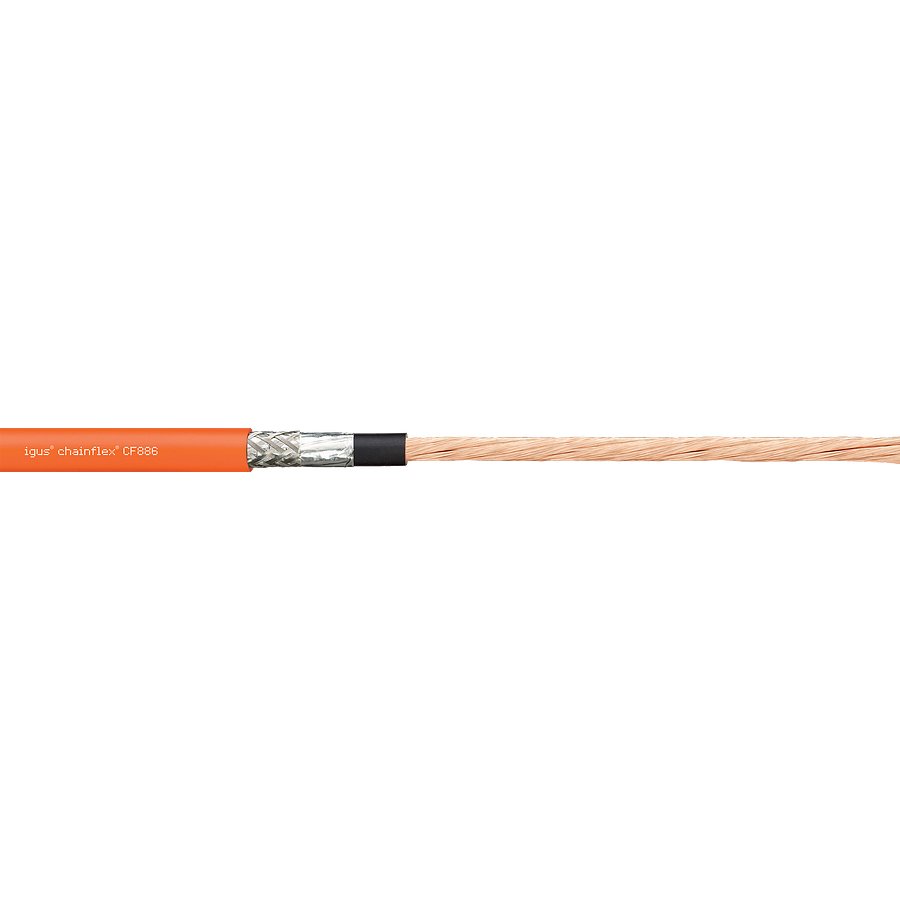

chainflex® motor cable CF886, lead screw cable/single core
Pricing
Request a quote
We reply within 24 hours
Overview
igus chainflex® motor cable CF886, lead screw cable/single core (part number CF886.160.01) is listed under Safety & Detection / Tools. Copper index kg/km: 186 kg/km; Shipping weight (kg or kg/m): 0.256; Outer diameter (d) max. mm: 11.5 mm; Weight per km: 262 kg/km; Min. bend radius, e-chain: 172.5 mm; Min. bend radius, flexible: 138 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CF886.160.01
- Brand
- IGUS
- Category
- Tools
- Number of cores and conductor nominal cross-section
- (1x16)C
- Copper index kg/km
- 186 kg/km
- Shipping weight (kg or kg/m)
- 0.256
- Outer diameter (d) max. mm
- 11.5 mm
- Weight per km
- 262 kg/km
- Min. bend radius, e-chain (factor)
- 15 x d
- Min. bend radius, e-chain
- 172.5 mm
- Min. bend radius, flexible (factor)
- 12 x d
- Min. bend radius, flexible
- 138 mm
- Min. bend radius, fixed (factor)
- 8 x d
- Min. bend radius, fixed
- 92 mm
- Temperature e-chain®
- +5°C up to +70°C
- Temperature, flexible
- -5°C to +70°C (according to DIN EN 60811-504)
- Temperature, fixed
- -15°C to +70°C (according to DIN EN 50305)
- v max. unsupported (speed)
- 3 m/s
- a max. (acceleration)
- 20 m/s²
- travel length
- Unsupported up to 10 m
- torsion
- No Torsion
- Conductor
- Finely stranded conductor consisting of bare copper wires (according to DIN EN 60228).
- Core insulation
- Mechanically high-quality PVC mixture.
- Overall shield
- Braiding made of tinned copper wires. Cover approx. 60% optical.
- Outer jacket
- Low-adhesion PVC mixture, adapted to suit the requirements in e-chains®.
- Outer jacket colour
- Pastel orange (comparable to RAL 2003)
- Nominal voltage
- 600/1,000V (according to DIN VDE 0298-3)
- Test voltage
- 4000V (according to DIN EN 50395)
- Oil resistance
- No oil resistance
- Silicone-free
- Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
- EAC
- Certificate No. RU C-DE.ME77.B.00302/19
- REACH
- In accordance with Regulation (EC) No. 1907/2006 (REACH)
- Lead-free
- According to 2011/65/EU (RoHs-II/RoHS-III)
- CE
- According to 2014/35/EU
- UL/CSA AWM
- Style 10107, 600 V, 80 °C
- UL verified
- Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“
- Flame-retardant
- According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
- NFPA
- According to NFPA 79-2018, chapter 12.9
Standards & Compliance
- HS Code
- 8544.49
Cross References
- OEM-URL https://www.igus.com/product/CF886_Spindelleitung_Einzeladern
More from igus
igus
chainflex® motor cable CF885
CF885.10.04
igus
chainflex® servo cable CF887
CF887.07.05.02.01
igus
chainflex® servo motor feedback cable CF894
CF894.022
igus
chainflex® bus cable CF898
CF898.001
igus
chainflex® motor cable CF896
CF896.07.04
igus
chainflex® servo cable CF897
CF897.15.15.02.01
igus
chainflex® control cable CF98.PLUS
CF98.PLUS.01.02
igus
chainflex® control cable CF98
CF98.01.03
