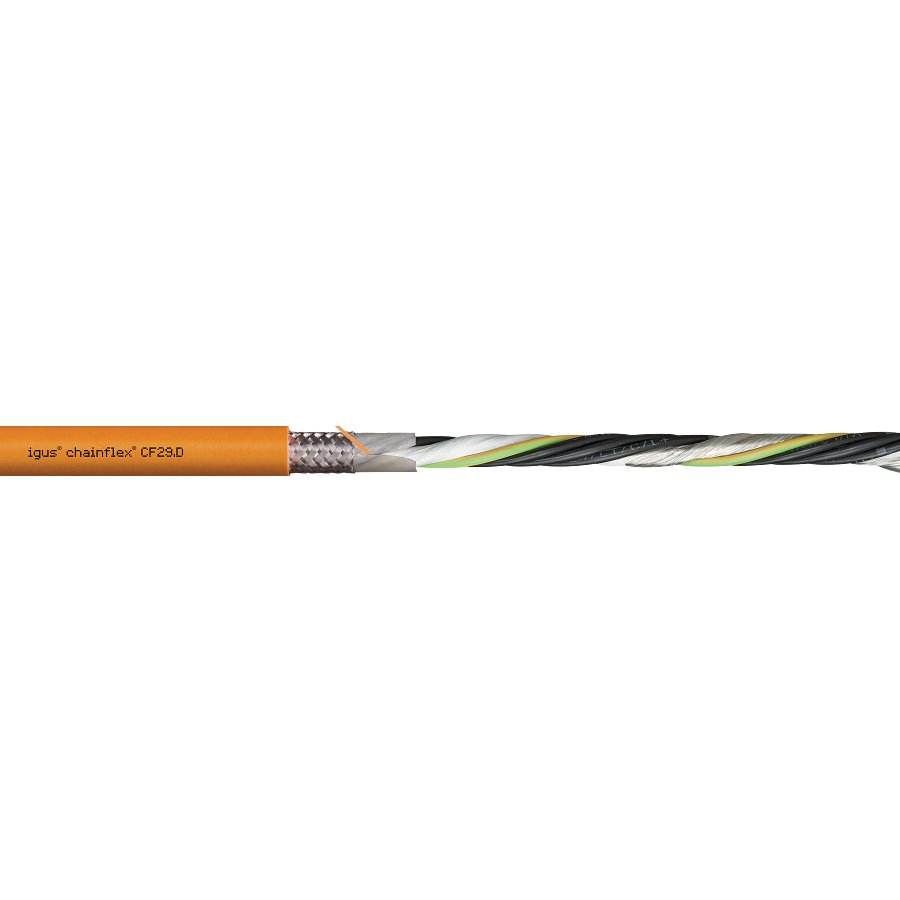

chainflex® servo cable CF29.D

igus chainflex® servo cable CF29.D (part number CF29.15.15.02.01.D) is listed under Safety & Detection / Tools. Protective conductor: with green-yellow earth core; Copper index kg/km: 145 kg/km; Core group 1 core structure: 4G1.5; Core group 2 core structure: (2x1.5)C; Shipping weight (kg or kg/m): 0.231; Outer diameter (d) max. mm: 13 mm.

Manufacturer part number (MPN)

CF29.15.15.02.01.D

Brand

IGUS

Category

Tools

Number of cores and conductor nominal cross-section

(4G1.5+(2x1.5)C)C

Protective conductor

with green-yellow earth core

Copper index kg/km

145 kg/km

Core group 1 core structure

4G1.5

Core group 2 core structure

(2x1.5)C

Shipping weight (kg or kg/m)

0.231

Outer diameter (d) max. mm

13 mm

Weight per km

231 kg/km

Min. bend radius, e-chain (factor)

6.8 x d

Min. bend radius, e-chain

88.4 mm

Min. bend radius, flexible (factor)

5 x d

Min. bend radius, flexible

65 mm

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

52 mm

Temperature e-chain®

-35°C up to +100°C

Temperature, flexible

-50°C to +100°C (according to DIN EN 60811-504)

Temperature, fixed

-55°C to +100°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

5 m/s

a max. (acceleration)

80 m/s²

travel length

Travels up to 400 m and more

torsion

No Torsion

Conductor

Stranded conductor in an especially bend-resistant version consisting of bare copper wires (according to DIN EN 60228).

Core insulation

Mechanically high-quality, especially low-capacity XLPE mixture.

Core stranding

Power cores with control pair elements wound with elements for high-tensile stresses.

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Element shield

Extremely bend-resistant braiding made of tinned copper wires.

Outer jacket

Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.

Outer jacket colour

Pastel orange (comparable to RAL 2003)

CFRIP®

Strip cables faster: a tear strip is moulded into the inner jacket

Nominal voltage

600/1,000V (according to DIN VDE 0298-3)

Test voltage

4000V (according to DIN EN 50395)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL AWM

Style 30052 and 22351, 1000 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

DESINA

According to VDW, DESINA standardisation

UKCA

In accordance with the valid regulations of the United Kingdom (as of 08/2021)

HS Code

8544.49
