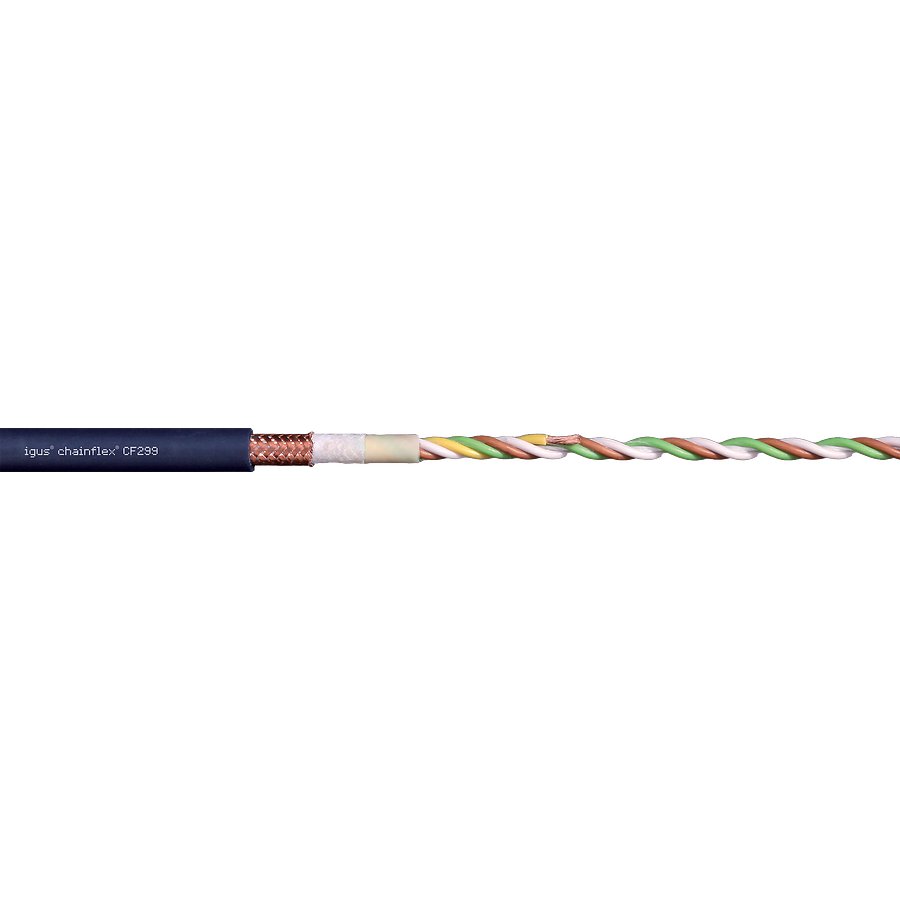

chainflex® data cable CF299

igus chainflex® data cable CF299 (part number CF299.01.08) is listed under Safety & Detection / Tools. Copper index kg/km: 35 kg/km; Stranding type: Stranded in layers; Shipping weight (kg or kg/m): 0.08; Outer diameter (d) max. mm: 8.5 mm; Weight per km: 80 kg/km; Min. bend radius, e-chain: 34 mm.

Manufacturer part number (MPN)

CF299.01.08

Brand

IGUS

Category

Tools

Number of cores and conductor nominal cross-section

(8x0.14)C

Copper index kg/km

35 kg/km

Stranding type

Stranded in layers

Shipping weight (kg or kg/m)

0.08

Outer diameter (d) max. mm

8.5 mm

Weight per km

80 kg/km

Min. bend radius, e-chain (factor)

4 x d

Min. bend radius, e-chain

34 mm

Min. bend radius, fixed (factor)

3 x d

Min. bend radius, fixed

25.5 mm

Temperature e-chain®

-35°C up to +90°C

Temperature, flexible

-50°C to +90°C (according to DIN EN 60811-504)

Temperature, fixed

-55°C to +90°C (according to DIN EN 50305)

v max. unsupported (speed)

10 m/s

v max. gliding (speed)

6 m/s

a max. (acceleration)

100 m/s²

travel length

Unsupported travel distances and up to 100 m for gliding applications

torsion

No Torsion

Conductor

Conductor consisting of a flexible special alloy.

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

Cores wound in a layer with especially short pitch length.

Inner jacket

TPE mixture adapted to suit the requirements in e-chains®.

Overall shield

Extremely bend-resistant braiding made of alloy wires. Coverage approx. 70% linear, approx. 90% optical

Outer jacket

Low-adhesion, extremely abrasion-resistant and highly flexible TPE mixture, adapted to suit the requirements in e-chains®.

Outer jacket colour

Steel blue (comparable to RAL 5011)

Nominal voltage

300/300V

Test voltage

1500V

UV resistance

High

Oil resistance

Oil-resistant (according to DIN EN 60811-404), bio-oil-resistant (according to VDMA 24568 with Plantocut 8 S-MB tested by DEA), Class 4

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

Halogen-free

According to DIN EN 60754

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF9.15.07 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

HS Code

8544.49
