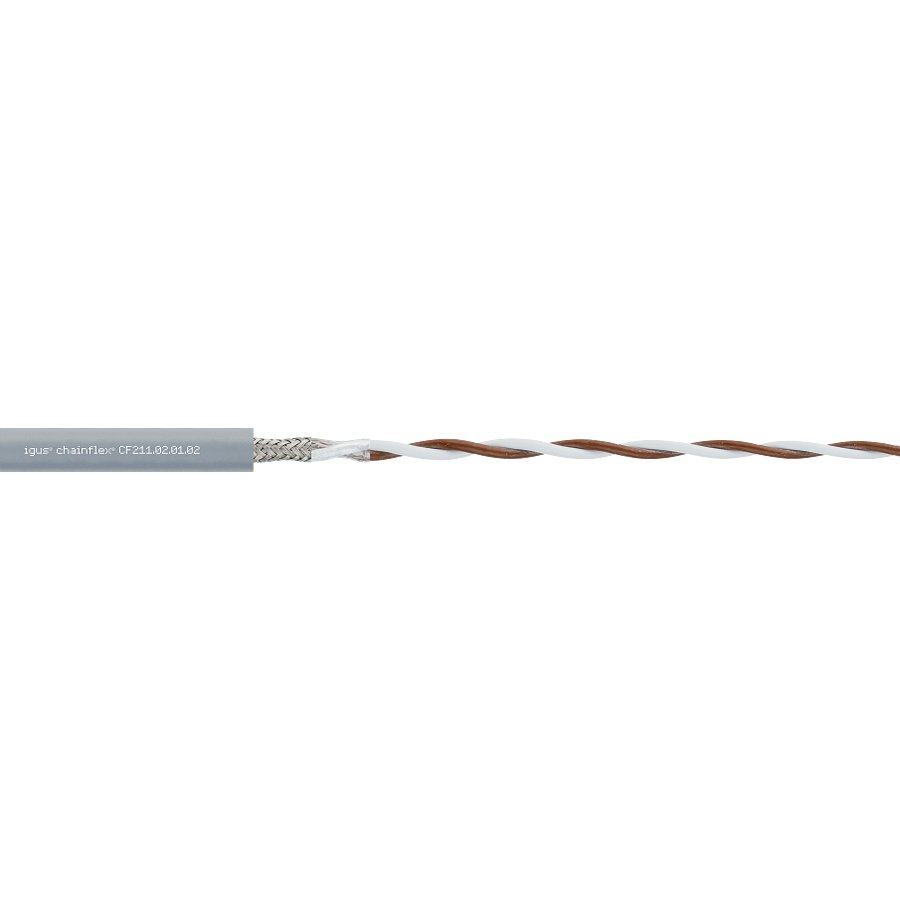

chainflex® CF211 data cable PVC

igus chainflex® CF211 data cable PVC (part number CF211.02.01.02) is listed under Safety & Detection / Tools. Copper index kg/km: 18 kg/km; Stranding type: Twisted Pair; Shipping weight (kg or kg/m): 0.033; Outer diameter (d) max. mm: 5 mm; Weight per km: 33 kg/km; Min. bend radius, e-chain: 37.5 mm.

Manufacturer part number (MPN)

CF211.02.01.02

Brand

IGUS

Category

Tools

Number of cores and conductor nominal cross-section

(2x0.25)C

Copper index kg/km

18 kg/km

Stranding type

Twisted Pair

Shipping weight (kg or kg/m)

0.033

Outer diameter (d) max. mm

5 mm

Weight per km

33 kg/km

Min. bend radius, e-chain (factor)

7.5 x d

Min. bend radius, e-chain

37.5 mm

Min. bend radius, flexible (factor)

6 x d

Min. bend radius, flexible

30 mm

Min. bend radius, fixed (factor)

4 x d

Min. bend radius, fixed

20 mm

Temperature e-chain®

+5°C up to +70°C

Temperature, flexible

-5°C to +70°C (according to DIN EN 60811-504)

Temperature, fixed

-15°C to +70°C (according to DIN EN 50305)

v max. unsupported (speed)

5 m/s

v max. gliding (speed)

3 m/s

a max. (acceleration)

50 m/s²

travel length

Unsupported travel distances and up to 100 m for gliding applications

torsion

No Torsion

Conductor

Very finely stranded special conductors of a particularly bend-resistant design, made of bare copper wires.

Core insulation

Mechanically high-quality TPE mixture.

Core stranding

Cores twisted in pairs with short pitch lengths, core pairs then wound with short pitch lengths.

Overall shield

Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%

Outer jacket

Low-adhesion, oil-resistant PVC mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-4-1).

Outer jacket colour

Silver grey (comparable to RAL 7001)

Nominal voltage

300/300V (according to DIN VDE 0298-3)

Test voltage

1500V (according to DIN EN 50395)

UV resistance

Medium

Oil resistance

Oil-resistant (according to DIN EN 50363-4-1), Class 2

Silicone-free

Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)

EAC

Certificate No. RU C-DE.ME77.B.00300/19

REACH

In accordance with Regulation (EC) No. 1907/2006 (REACH)

Lead-free

According to 2011/65/EU (RoHs-II/RoHS-III)

Cleanroom

According to ISO Class 1 The outer jacket material of this series complies with CF240.02.24 - tested by IPA according to standard DIN EN ISO 14644-1

CE

According to 2014/35/EU

UL/CSA AWM

Style 10493 and 2464, 300 V, 80 °C

UL verified

Certificate no. V293650: "The igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year“

Flame-retardant

According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame

NFPA

According to NFPA 79-2018, chapter 12.9

HS Code

8544.49
