igus

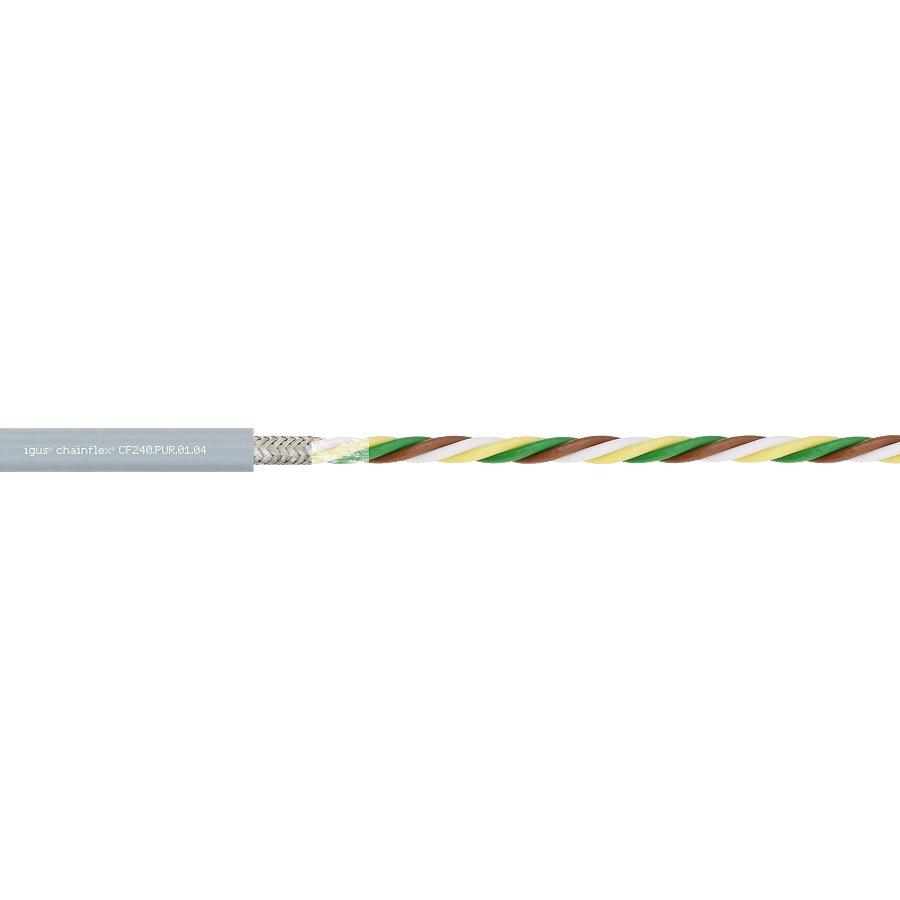

chainflex® CF240-PUR data cable PUR

Name: chainflex® CF240-PUR data cable PUR
Brand: igus
SKU: CF240.PUR.01.04

Part numberCF240.PUR.01.04HS code8544.49

Safety & Detection

Tools

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Overview

igus chainflex® CF240-PUR data cable PUR (part number CF240.PUR.01.04) is listed under Safety & Detection / Tools. Copper index kg/km: 15 kg/km; Stranding type: Stranded in layers; Shipping weight (kg or kg/m): 0.039; Outer diameter (d) max. mm: 5.5 mm; Weight per km: 39 kg/km; Min. bend radius, e-chain: 55 mm.

Technical Specifications

Manufacturer part number (MPN): CF240.PUR.01.04
Brand: IGUS
Category: Tools
Number of cores and conductor nominal cross-section: (4x0.14)C
Copper index kg/km: 15 kg/km
Stranding type: Stranded in layers
Shipping weight (kg or kg/m): 0.039
Outer diameter (d) max. mm: 5.5 mm
Weight per km: 39 kg/km
Min. bend radius, e-chain (factor): 10 x d
Min. bend radius, e-chain: 55 mm
Min. bend radius, flexible (factor): 8 x d
Min. bend radius, flexible: 44 mm
Min. bend radius, fixed (factor): 5 x d
Min. bend radius, fixed: 27.5 mm
Temperature e-chain®: -25°C up to +80°C
Temperature, flexible: -40°C to +80°C (according to DIN EN 60811-504)
Temperature, fixed: -50°C to +80°C (according to DIN EN 50305)
v max. unsupported (speed): 3 m/s
v max. gliding (speed): 2 m/s
a max. (acceleration): 20 m/s²
travel length: Travels up to 50 m
torsion: No Torsion
Conductor: Very finely stranded special conductors of a particularly bend-resistant design, made of bare copper wires.
Core insulation: Mechanically high-quality TPE mixture.
Core stranding: The individual cores are wound in layers with a short pitch length.
Overall shield: Extremely flexible braiding made of tinned copper wires. Coverage linear approx. 70%, optical approx. 90%
Outer jacket: Low-adhesion, halogen-free, highly abrasion-resistant PUR mixture, adapted to suit the requirements in e-chains® (according to DIN EN 50363-10-2).
Outer jacket colour: Window grey (comparable to RAL 7040)
Nominal voltage: 300/300V (according to DIN VDE 0298-3)
Test voltage: 1500V (according to DIN EN 50395)
UV resistance: Medium
Oil resistance: Oil-resistant (according to DIN EN 50363-10-2), Class 3
Silicone-free: Free from silicone which can affect paint adhesion (according to PV 3.10.7 – status 1992)
Halogen-free: According to DIN EN 60754
EAC: Certificate No. RU C-DE.ME77.B.00300/19
REACH: In accordance with Regulation (EC) No. 1907/2006 (REACH)
Lead-free: According to 2011/65/EU (RoHs-II/RoHS-III)
Cleanroom: According to ISO Class 1 The outer jacket material of this series complies with CF77.UL.05.12.D - tested by IPA according to standard DIN EN ISO 14644-1
CE: According to 2014/35/EU
UL/CSA AWM: val_ul_csa_75
UL verified: Certificate no. V293650: "igus 4-year chainflex cable guarantee and service life calculator based on 2 billion test cycles per year"
Flame-retardant: According to IEC 60332-1-2, Cable Flame, VW-1, FT1, FT2/Horizontal Flame
DNV: Type approval certificate TAE00003X3
NFPA: According to NFPA 79-2018, chapter 12.9
Offshore: MUD-resistant according to NEK 606 - status 2018

Standards & Compliance

HS Code: 8544.49

Cross References

OEM-URL https://www.igus.com/product/CF240_PUR

More from igus

igus

chainflex® hybrid servo cable CF220-UL-H PVC

CF220.UL.H300.03.04

igus

chainflex® data cable CF299

CF299.01.08

igus

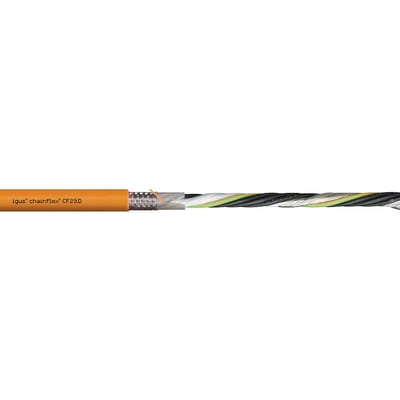

chainflex® servo cable CF29.D

CF29.15.15.02.01.D

igus

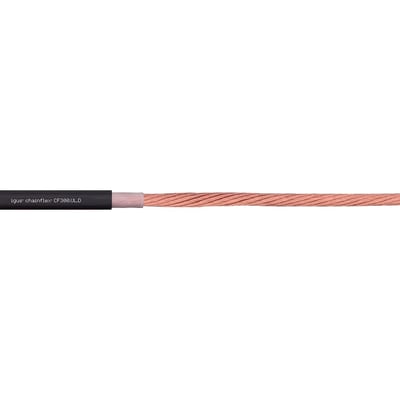

chainflex® motor cable CF300-UL-D

CF300.UL.40.01.D

igus

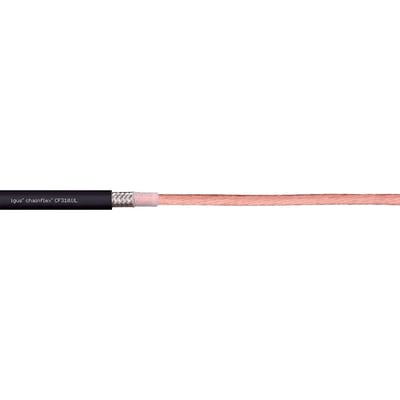

chainflex® motor cable CF310-UL

CF310.UL.25.01

igus

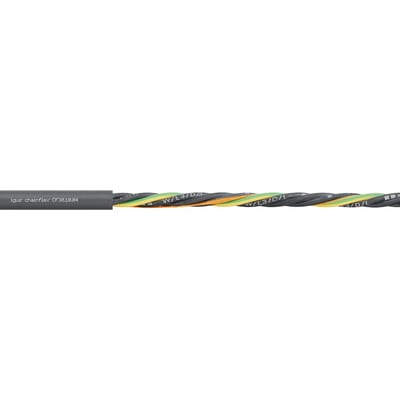

chainflex® motor cable CF30

CF30-10-04

igus

chainflex® motor cable CF31

CF31.10.04

igus

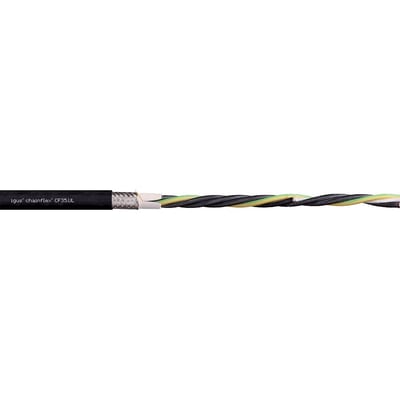

chainflex® motor cable CF35-UL
