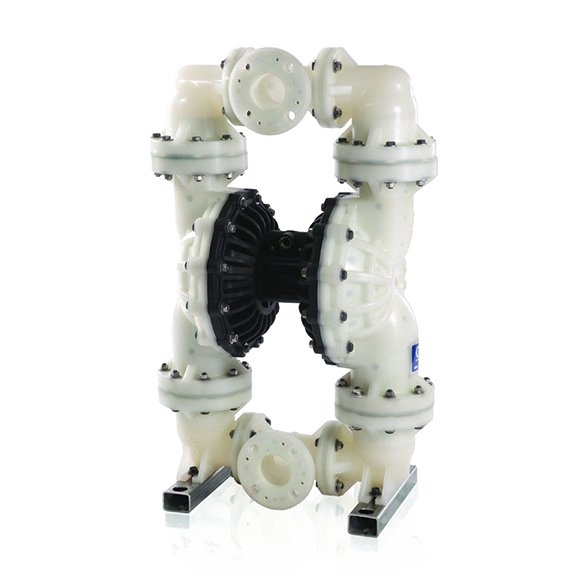

Graco Husky 3300 air-operated double diaphragm pump, polypropylene, 3 in.

Graco Husky 3300 air-operated double diaphragm (AODD) pump, part number 652404, polypropylene fluid section with a polypropylene center section, polypropylene seats, PTFE balls and a PTFE diaphragm, with 3 in. (76.2 mm) ANSI/DIN flange fluid ports. Maximum free-flow delivery 280 gpm (1,059 lpm) at up to 100 psi (7.0 bar) fluid pressure — the large-flow end of the Husky line.

Brand

Graco

Range

Husky 3300 (air-operated double diaphragm)

Part number

652404

Fluid section

polypropylene

Configuration

polypropylene body, polypropylene center section, polypropylene seats, PTFE balls, PTFE diaphragm

Maximum fluid working pressure

100 psi (7.0 bar, 0.7 MPa)

Maximum free-flow delivery (standard diaphragms)

280 gpm (1,059 lpm)

Maximum pump speed (standard diaphragms)

97 cpm

Maximum suction lift

8 ft (2.4 m) dry

Maximum size pumpable solids

0.5 in (13 mm)

Sound power at 50 psi and 50 cpm

92 dBa

Sound power at 120 psi and full flow

99 dBa

Sound pressure at 50 psi and 50 cpm

86 dBa

Sound pressure at 120 psi and full flow

93 dBa

Maximum air consumption

275 scfm (7.8 m3/min)

Air pressure operating range

20 to 100 psi (1.4 to 7.0 bar, 0.14 to 0.7 MPa)

Air inlet size

3/4 npt(f)

Fluid inlet and outlet size

3 in (76.2 mm) ANSI/DIN flange

Weight

200 lb (91 kg)

Material

Polypropylene (fluid section)

Pressure Rating

100 psi (7.0 bar, 0.7 MPa)

HS Code

8413.81
