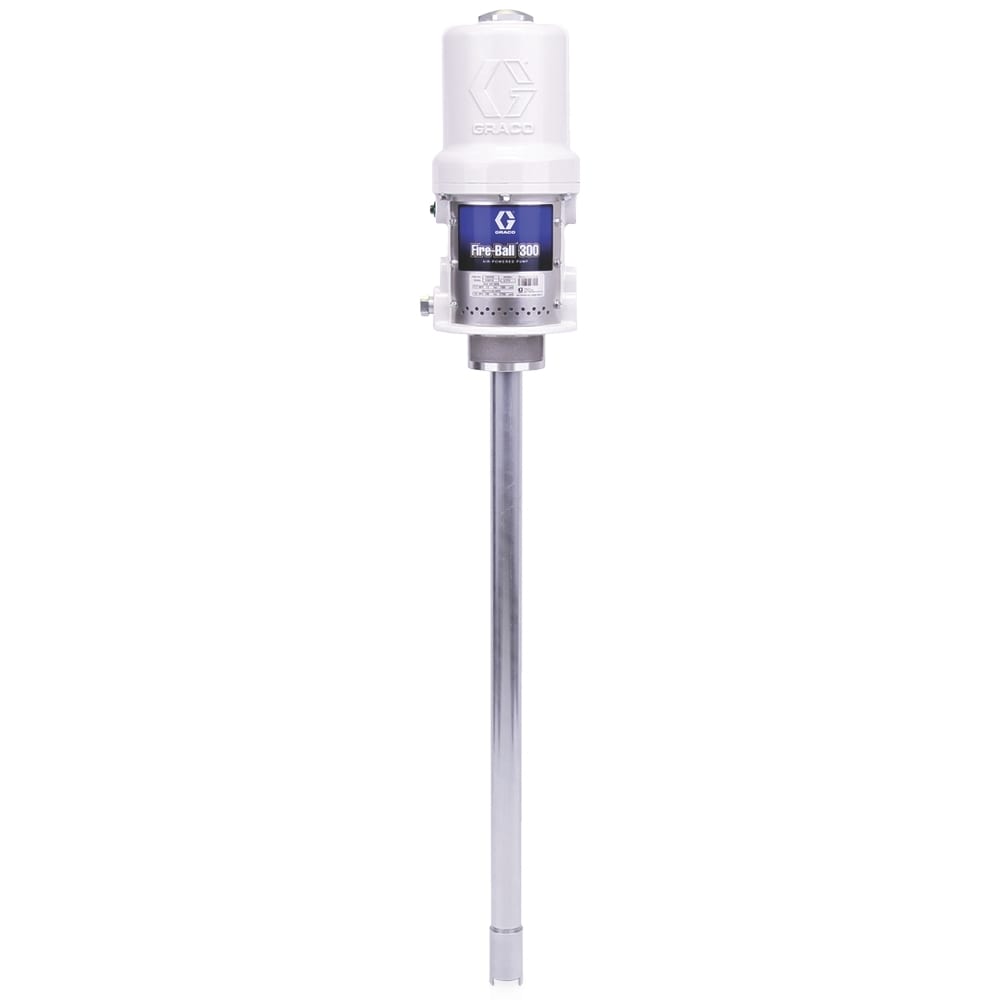

Graco Fire-Ball 300 15:1 grease pump, 120 lb (55 kg) drum length
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco Fire-Ball 300 air-operated piston pump, model 206699 (Series J), 15:1 ratio, 120 lb (55 kg) drum size, for grease and petroleum-based heavy fluids. Maximum fluid working pressure 2700 psi (18.6 MPa, 186 bar). Used across marine engine-room, cargo transfer, ballast, bilge, cooling and process fluid transfer duty.
Technical Specifications
- Brand
- Graco Range: Fire-Ball 300 (air-operated piston pump, 15:1) Model number: 206699 (Series J) Pump ratio: 15:1 Container size: 120 lb (55 kg) drum length Maximum fluid working pressure: 2700 psi (18.6 MPa, 186 bar) Maximum air input pressure: 180 psi (1.2 MPa, 12 bar) Maximum cycle rate: 66 cycles/min Maximum air consumption: 14 scfm Maximum flow rate: 0.7 gpm (2.6 lpm) Type: pneumatic piston pump Wetted parts: carbon steel, brass, copper, aluminium, PTFE, nitrile rubber, leather Weight: 22 lb (10 kg) Sound pressure level: 77.8 dB(A); sound power level: 85.6 dB(A)
Standards & Compliance
- Material
- Carbon steel, brass, copper, aluminium, PTFE, nitrile rubber, leather (wetted parts)
- Pressure Rating
- 2700 psi (18.6 MPa, 186 bar)
- HS Code
- 8413.50
Compatibility & Fitment
15:1 Fire-Ball 300 series; the 35 lb pail version is model 206405 and the 400 lb drum version model 206700 (per the 306531 manual). The 206699 fits 120 lb (55 kg) drums.
