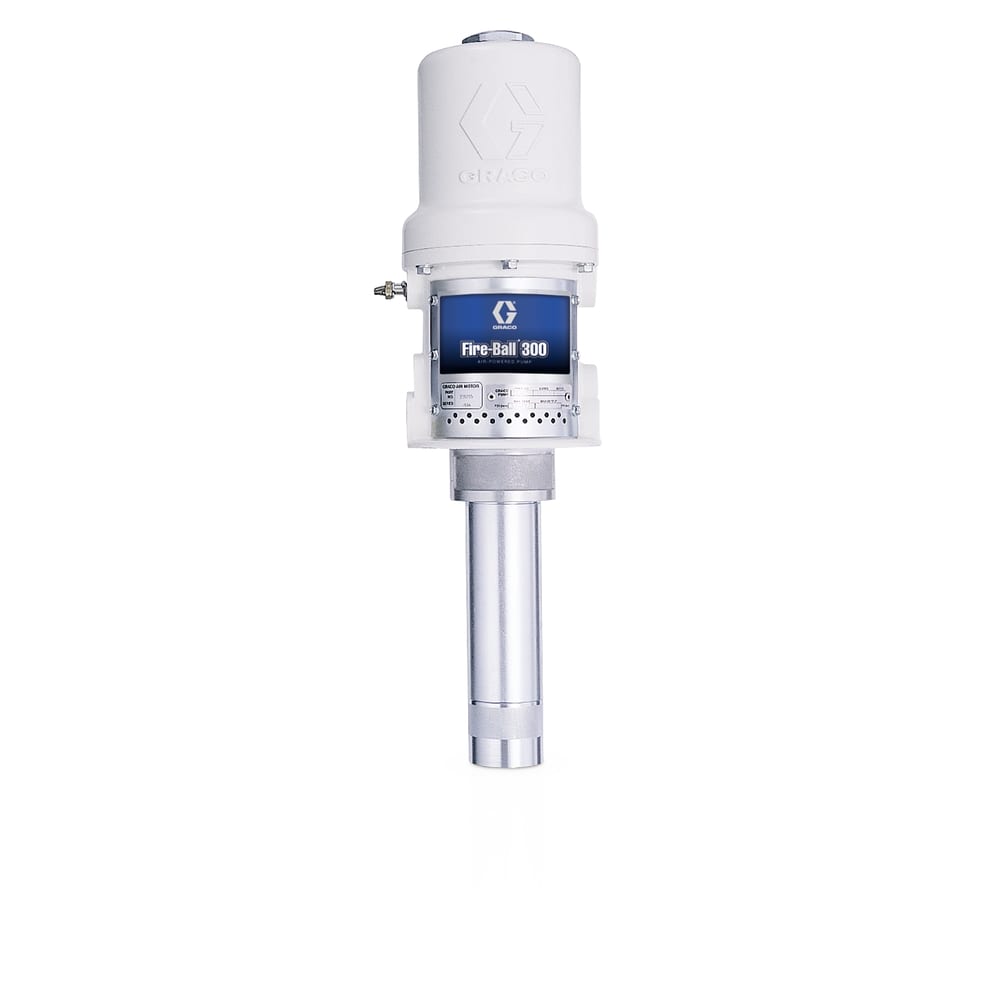

Graco Fire-Ball 300 5:1 oil and lubricant pump, universal size
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco Fire-Ball 300 air-operated piston pump, model 203876, 5:1 ratio, universal size, for oil and lubricant transfer and dispense. Maximum fluid working pressure 900 psi (6.2 MPa, 62 bar). Used across marine engine-room, cargo transfer, ballast, bilge, cooling and process fluid transfer duty.
Technical Specifications
- Brand
- Graco
- Range
- Fire-Ball 300 (air-operated piston pump, 5:1)
- Model number
- 203876
- Pump ratio
- 5:1
- Container size
- universal size
- Maximum fluid working pressure
- 900 psi (6.2 MPa, 62 bar)
- Maximum air input pressure
- 180 psi (1.2 MPa, 12 bar)
- Maximum cycle rate
- 70 cycles/min (continuous and intermittent)
- Maximum air consumption
- 25 scfm
- Type
- pneumatic piston pump
- Wetted parts
- steel, polyurethane, aluminium, Buna-N
- Air inlet size
- 3/8 in npt(f)
- Weight
- 17 lb (7.7 kg)
Standards & Compliance
- Material
- Steel, polyurethane, aluminium, Buna-N (wetted parts)
- Pressure Rating
- 900 psi (6.2 MPa, 62 bar)
- HS Code
- 8413.50
Compatibility & Fitment
5:1 Fire-Ball 300 series; the 306518 manual also covers models 203872, 203857, 204254 and 222087. The 203876 is the universal-size oil and lubricant transfer build.
