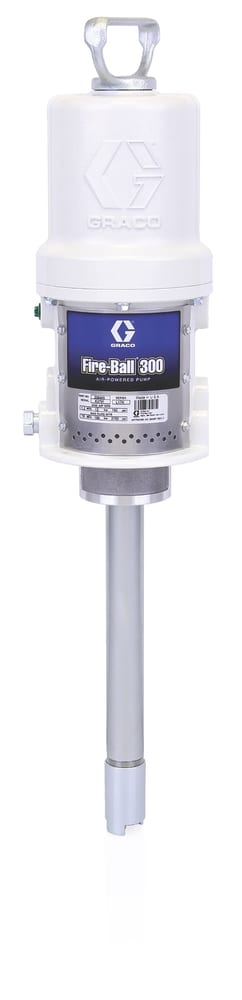

Graco Fire-Ball 300 15:1 grease pump, 35 lb (16 kg) pail
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco Fire-Ball 300 air-operated piston pump, model 206405 (Series K), 15:1 ratio, 35 lb (16 kg) pail size, for grease and petroleum-based heavy fluids. Maximum fluid working pressure 2700 psi (18.6 MPa, 186 bar). Used across marine engine-room, cargo transfer, ballast, bilge, cooling and process fluid transfer duty.
Technical Specifications
- Brand
- Graco
- Range
- Fire-Ball 300 (air-operated piston pump, 15:1)
- Model number
- 206405 (Series K)
- Pump ratio
- 15:1
- Container size
- 35 lb (16 kg) pail
- Maximum fluid working pressure
- 2700 psi (18.6 MPa, 186 bar)
- Maximum air input pressure
- 180 psi (1.2 MPa, 12 bar)
- Maximum cycle rate
- 66 cycles/min
- Maximum air consumption
- 14 scfm
- Type
- pneumatic piston pump
- Wetted parts
- carbon steel, brass, copper, aluminium, PTFE, nitrile rubber, leather
- Weight
- 22 lb (10 kg)
- Sound pressure level
- 77.8 dB(A); sound power level: 85.6 dB(A)
Standards & Compliance
- Material
- Carbon steel, brass, copper, aluminium, PTFE, nitrile rubber, leather (wetted parts)
- Pressure Rating
- 2700 psi (18.6 MPa, 186 bar)
- HS Code
- 8413.50
Compatibility & Fitment
15:1 Fire-Ball 300 series; the 120 lb drum version is model 206699 and the 400 lb drum version model 206700 (per the 306531 manual). The 206405 fits 35 lb (16 kg) grease pails.
