Product Description

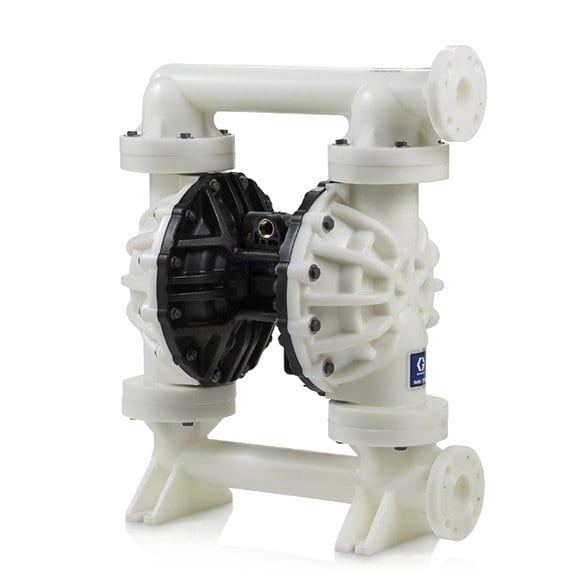

Graco Husky 2200 air-operated double diaphragm (AODD) pump, part number 653528, polypropylene fluid section and polypropylene center section, with Santoprene seats, Santoprene balls and a Santoprene diaphragm, in the end-flange manifold configuration with 2 in. (51 mm) fluid ports. Maximum free-flow delivery 200 gpm (757 lpm) at up to 125 psi (8.6 bar) fluid pressure — the 200 gpm Husky 2200 size.
Technical Specifications
- Brand
- Graco Range: Husky 2200 (air-operated double diaphragm) Part number: 653528 Fluid section material: polypropylene Center section material: polypropylene Seat material: Santoprene Ball material: Santoprene Diaphragm material: Santoprene Manifold configuration: end port (end-flange) Manifold O-ring material: PTFE Maximum fluid working pressure: 125 psi (8.6 bar, 0.86 MPa) Maximum free-flow delivery: 200 gpm (757 lpm) Maximum pump speed: 125 cpm (standard diaphragm), 155 cpm (overmolded diaphragm) Displacement per cycle: 1.6 gallon (6.1 liter) standard diaphragm, 1.3 gallon (4.9 liter) overmolded diaphragm Maximum size pumpable solids: 0.375 in (Graco product page) Maximum operating temperature: 150 degF (65.5 degC) minimum operating temperature: 32 degF (0 degC) Maximum air consumption: 140 scfm (4.0 m3/min) standard diaphragm, 157 scfm (4.4 m3/min) overmolded diaphragm Air pressure operating range: 20 to 125 psi (1.4 to 8.6 bar, 0.14 to 0.86 MPa) Air inlet size: 3/4 npt(f) Air exhaust port size: 1 in npt(f) Fluid inlet and outlet size: 2 in (51 mm) end-flange Weight (polypropylene): 80 lb (36.3 kg) Standards met: CE
Standards & Compliance
- Material
- Polypropylene (fluid section)
- Pressure Rating
- 125 psi (8.6 bar, 0.86 MPa)
- Temperature Range
- Operating temperature 32 to 150 degF (0 to 65.5 degC)
- HS Code
- 8413.81
Compatibility & Fitment
Husky 2200 series, 2 in. end-flange AODD pump (200 gpm) — a larger-capacity 2 in. size than the Husky 2150 (DF2911, 150 gpm) and above the 1-1/2 in. Husky 1590 (DB2966). Seat, ball and diaphragm materials are selected by configuration; confirm fluid compatibility before ordering.
