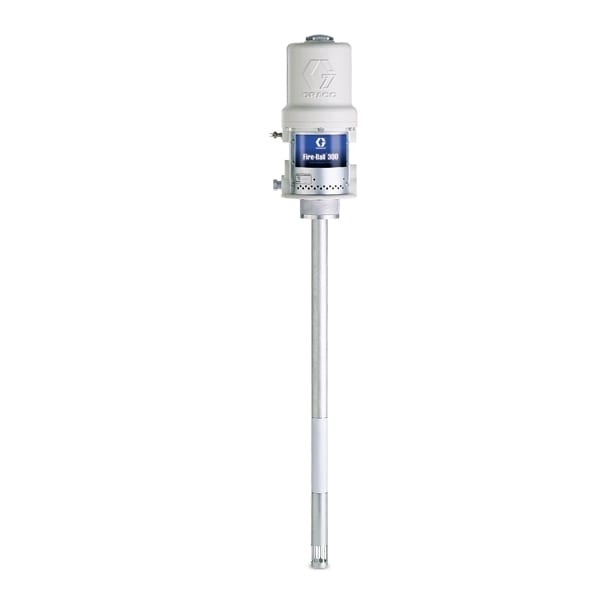

Graco Fire-Ball 300 50:1 grease pump, 120 lb (55 kg)
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco Fire-Ball 300 air-operated piston grease pump, model 239887, 50:1 ratio, for 120 lb (55 kg) grease containers. Double-acting pump driven by a 3 in. (76 mm) differential air motor. Maximum fluid working pressure 8400 psi (58 MPa, 580 bar).
Technical Specifications
- Brand
- Graco
- Range
- Fire-Ball 300 (air-operated piston grease pump)
- Model number
- 239887
- Pump ratio
- 50:1
- Container size
- 120 lb (55 kg)
- Maximum fluid working pressure
- 8400 psi (58 MPa, 580 bar)
- Maximum air input pressure
- 140 psi (0.97 MPa, 9.7 bar)
- Air pressure operating range
- 30-140 psi (0.3-0.97 MPa, 3-9.7 bar)
- Air motor effective diameter
- 3.0 in (76 mm)
- Maximum delivery
- 0.22 gpm (0.82 lpm) at 76 cycles/min
- Maximum cycle rate
- 76 cycles/min (continuous and intermittent)
- Maximum air consumption
- 22.8 scfm
- Type
- pneumatic piston pump
- Wetted parts
- steel, brass, aluminium, acetal, nitrile rubber, polyurethane
- Air inlet size
- 3/8 in npt(f)
- Weight
- 22 lb (10 kg)
- Sound pressure level
- 77.8 dB(A); sound power level: 85.6 dB(A)
Standards & Compliance
- Material
- Steel, brass, aluminium, acetal, nitrile rubber, polyurethane (wetted parts)
- Pressure Rating
- 8400 psi (58 MPa, 580 bar)
- HS Code
- 8413.50
Compatibility & Fitment
Fire-Ball 300 50:1 series; the 35/70 lb pail-length version is model 239877 and the 400 lb drum-length version model 239888. The 239887 fits 120 lb (55 kg) containers.
