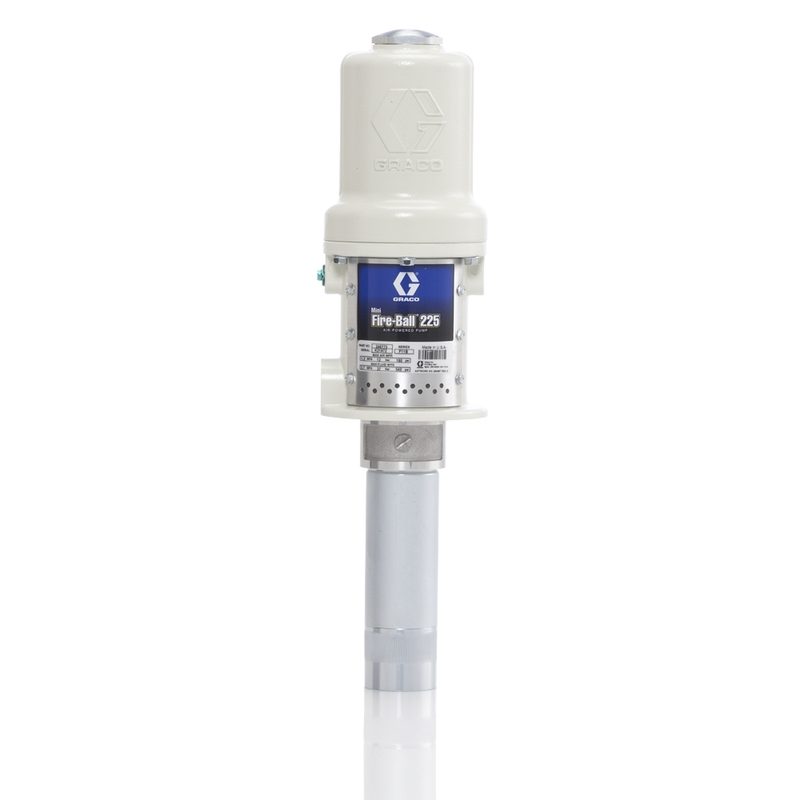

Graco Mini Fire-Ball® 225 3:1 Universal Pump
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 248230 Mini Fire-Ball® 225 3:1 Universal Pump, part number 248230. Mini Fire-Ball pneumatic piston pump, 3:1 pump ratio. Maximum working pressure 540 psi (37 bar). Wetted parts: Steel, Aluminum, Polyurethane, Buna-N. Includes: Hose Installation Kit. All values read from the Graco product page (248230 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Mini Fire-Ball
- Part number
- 248230
- Pump ratio
- 3:1
- Maximum working pressure
- 540 psi (37 bar)
- Type
- Pneumatic Piston Pump
- Application
- Industrial
- Compatible material
- Oil
- Maximum air consumption
- 20
- Maximum continuous cycle rate
- 100
- Air inlet size
- 3/8 in. Female NPT
- Fluid inlet size
- 1-1/2 in. Female NPT
- Fluid outlet size
- 1/2 in. Female NPT
- Maximum air inlet pressure
- 180 psi (12.41 bar)
- Weight
- 16 lb (0.7264 kg)
- Wetted material
- Steel, Aluminum, Polyurethane, Buna-N
- Includes
- Hose Installation Kit
Standards & Compliance
- Material
- Steel, Aluminum, Polyurethane, Buna-N
- Pressure Rating
- 540 psi (37 bar) max working
- HS Code
- 8413.50
Compatibility & Fitment
Mini Fire-Ball 225 is Graco's compact air-operated lubrication pump line. Pump ratio 3:1 (oil/lubricant); develops 540 psi fluid pressure; this package includes: Hose Installation Kit. Confirm the container/drum size, fluid type, and air supply suit the application before ordering.
