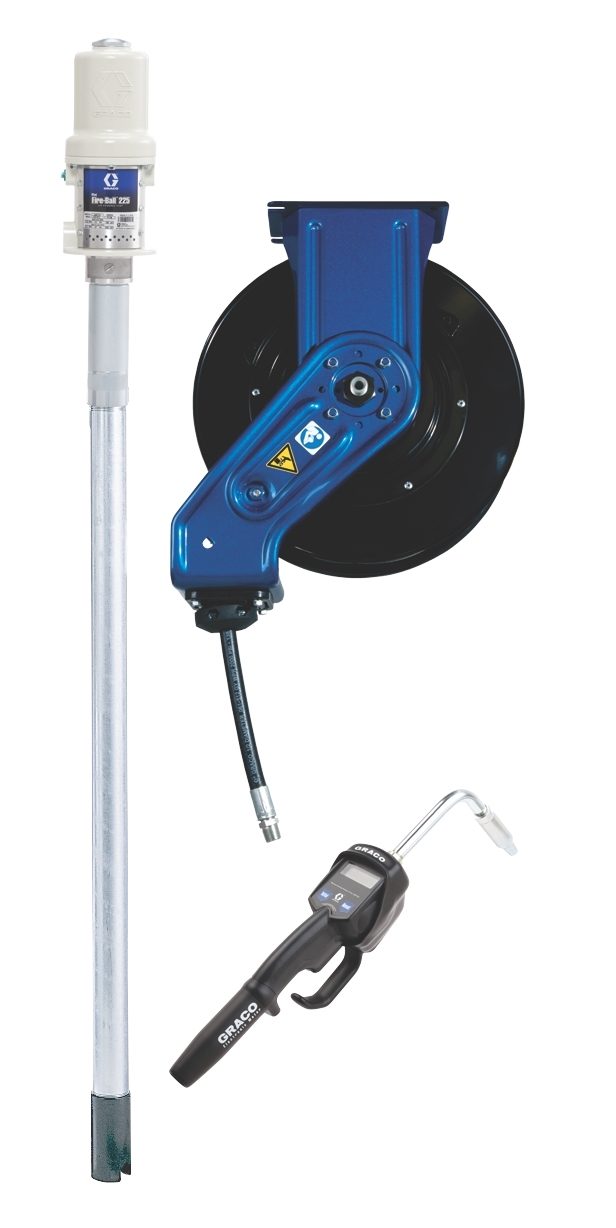

Graco Mini Fire-Ball® 225 3:1 1/2 in. x 35 ft. (12.7 mm x 11 m) Manual Hose Reel Package for Oil
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 248622 Mini Fire-Ball® 225 3:1 1/2 in. x 35 ft. (12.7 mm x 11 m) Manual Hose Reel Package for Oil, part number 248622. Mini Fire-Ball piston pump package, 3:1 pump ratio. Maximum working pressure 540 psi (37 bar). Maximum flow rate 1.84 gpm. Container size None lb. Wetted parts: Steel, Buna-N, Polyurethane, Aluminum, Rulon. Includes: Bung Adapter, Down Tube, SD Series Reel, Fluid Hose, Meter. All values read from the Graco product page (248622 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Mini Fire-Ball
- Part number
- 248622
- Pump ratio
- 3:1
- Maximum working pressure
- 540 psi (37 bar)
- Maximum flow rate
- 1.84 gpm
- Type
- Piston Pump Package
- Application
- Industrial
- Motor type
- Pneumatic
- Compatible material
- Oil
- Container size
- None
- Air inlet size
- 0.375 in. Female NPT
- Fluid inlet size
- 1.5 in. Female NPT
- Fluid outlet size
- 1/2 in. Female NPT
- Maximum air working pressure
- 180
- Weight
- 16 lb
- Wetted material
- Steel, Buna-N, Polyurethane, Aluminum, Rulon
- Includes
- Bung Adapter, Down Tube, SD Series Reel, Fluid Hose, Meter
Standards & Compliance
- Material
- Steel, Buna-N, Polyurethane, Aluminum, Rulon
- Pressure Rating
- 540 psi (37 bar) max working
- HS Code
- 8413.50
Compatibility & Fitment
Mini Fire-Ball 225 is Graco's compact air-operated lubrication pump line. Pump ratio 3:1 (oil/lubricant); matched to None lb containers; develops 540 psi fluid pressure; this package includes: Bung Adapter, Down Tube, SD Series Reel, Fluid Hose, Meter. Confirm the container/drum size, fluid type, and air supply suit the application before ordering.
