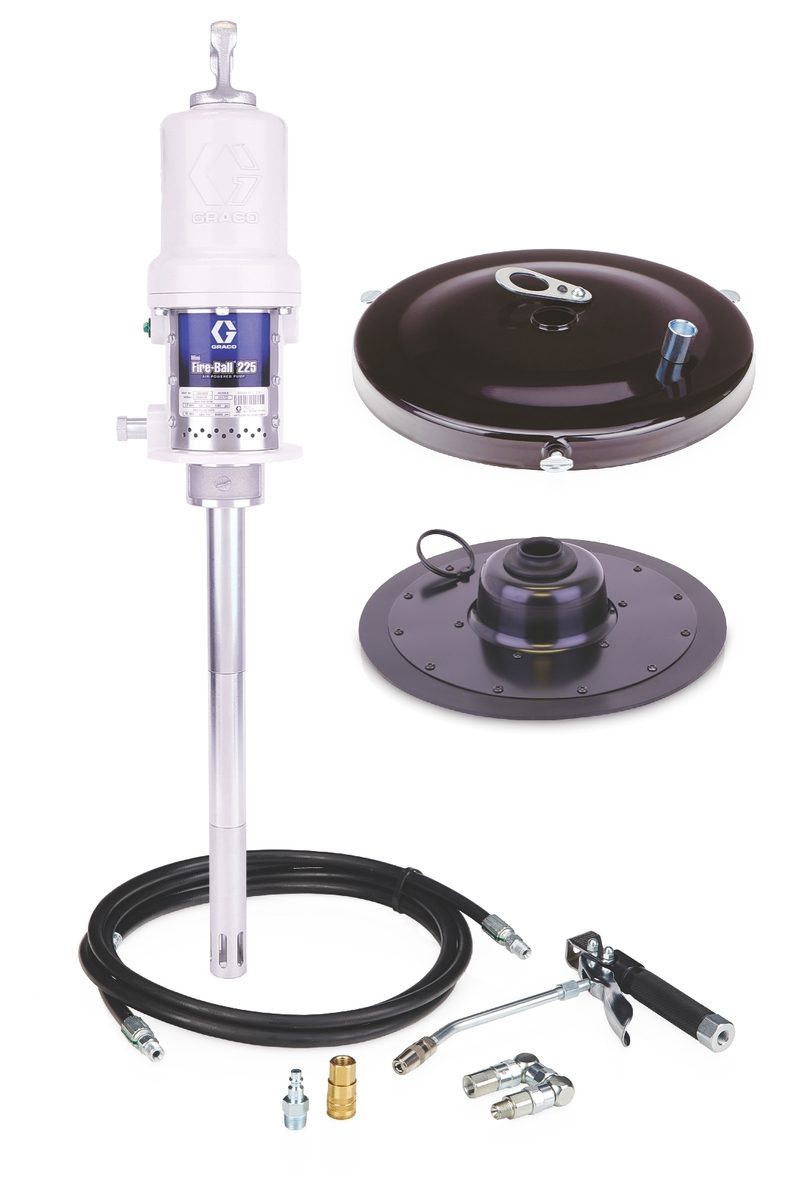

Graco Mini Fire-Ball® 225 50:1 35 lb. (16 kg) Grease Pump with Dispense Kit
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 253362 Mini Fire-Ball® 225 50:1 35 lb. (16 kg) Grease Pump with Dispense Kit, part number 253362. Mini Fire-Ball piston pump package, 50:1 pump ratio. Maximum working pressure 5000 psi (345 bar). Container size 35 lb. Wetted parts: Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin. Includes: Dispense Kit, Cover, Follow Plate. All values read from the Graco product page (253362 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Mini Fire-Ball
- Part number
- 253362
- Pump ratio
- 50:1
- Maximum working pressure
- 5000 psi (345 bar)
- Type
- Piston Pump Package
- Application
- Industrial
- Motor type
- Pneumatic
- Compatible material
- Grease
- Container size
- 35
- Air inlet size
- 0.375 in. Female NPT
- Fluid outlet size
- 1/4 in. Female NPT
- Maximum air working pressure
- 8400
- Weight
- 15 lb
- Wetted material
- Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin
- Includes
- Dispense Kit, Cover, Follow Plate
Standards & Compliance
- Material
- Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin
- Pressure Rating
- 5000 psi (345 bar) max working
- HS Code
- 8413.50
Compatibility & Fitment
Mini Fire-Ball 225 is Graco's compact air-operated lubrication pump line. Pump ratio 50:1 (grease); matched to 35 lb containers; develops 5000 psi fluid pressure; this package includes: Dispense Kit, Cover, Follow Plate. Confirm the container/drum size, fluid type, and air supply suit the application before ordering.
