Product Description

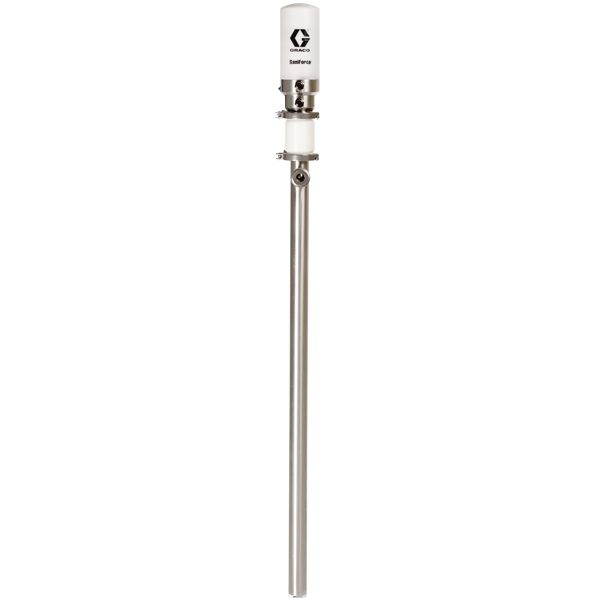

Graco 24N344 2:1 Ratio SaniForce Long Double Ball Piston Pump with PTFE & FKM Packings, part number 24N344. SaniForce pneumatic piston pump, 2:1 pump ratio. Maximum working pressure 250 psi (17 bar). Maximum flow rate 2.5 gpm. Wetted parts: Stainless Steel, Acetal, PTFE, FKM, UHMWPE. All values read from the Graco product page (24N344 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- SaniForce
- Part number
- 24N344
- Pump ratio
- 2:1
- Maximum working pressure
- 250 psi (17 bar)
- Maximum flow rate
- 2.5 gpm (9.46 L/min)
- Type
- Pneumatic Piston Pump
- Application
- Sanitary
- Compatible material
- Food, Personal Care
- Portable
- Non-Portable
- Seal material
- PTFE, Nitrile
- Standards met
- FDA Compliant Materials, CE
- Air inlet size
- 3/8 in. Female NPT
- Fluid outlet size
- 1 in.
- Maximum air inlet pressure
- 100 psi (6.9 bar)
- Maximum air consumption
- 6 scfm
- Maximum continuous cycle rate
- 60 cpm
- Wetted material
- Stainless Steel, Acetal, PTFE, FKM, UHMWPE
Standards & Compliance
- Material
- Stainless Steel, Acetal, PTFE, FKM, UHMWPE
- Pressure Rating
- 250 psi (17 bar) max working
- HS Code
- 8413.50
Compatibility & Fitment
SaniForce is Graco's sanitary (FDA-compliant) double-ball piston pump line for food and personal-care transfer. Pump ratio 2:1; develops up to 250 psi fluid pressure; seal/packing material PTFE, Nitrile; Confirm fluid compatibility, container/drum size, and air supply suit the application before ordering.
