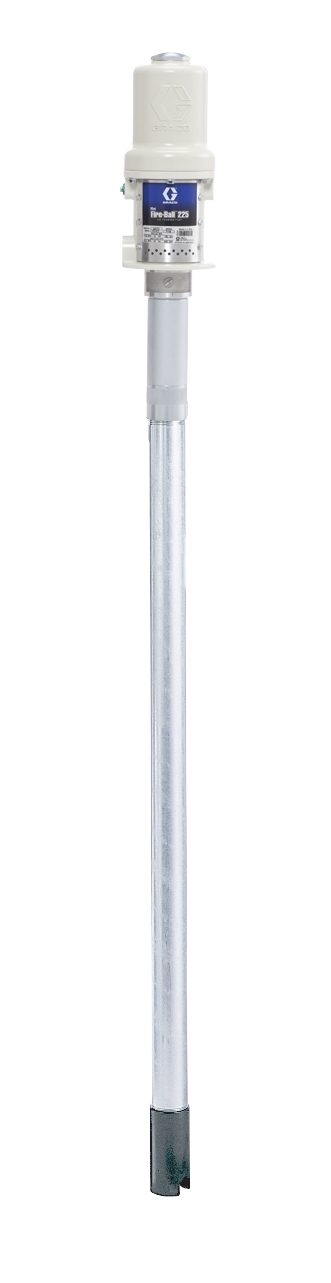

Graco Mini Fire-Ball® 225 3:1 Universal Size Oil Pump with Suction Tube and Bung Adapter
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 248097 Mini Fire-Ball® 225 3:1 Universal Size Oil Pump with Suction Tube and Bung Adapter, part number 248097. Mini Fire-Ball pneumatic piston pump, 3:1 pump ratio. Maximum working pressure 540 psi (37 bar). Wetted parts: Steel, Polyurethane, Aluminum, Buna-N. Includes: Hose Installation Kit, drum Cover, Air controller. All values read from the Graco product page (248097 on graco.com).
Technical Specifications
- Brand
- Graco Model: Mini Fire-Ball Part number: 248097 Pump ratio: 3:1 Maximum working pressure: 540 psi (37 bar) Type: Pneumatic Piston Pump Application: Industrial Compatible material: Oil Maximum air consumption: 20 Maximum continuous cycle rate: 100 Air inlet size: 3/8 in. Female NPT Fluid inlet size: 1-1/2 in. Female NPT Fluid outlet size: 1/2 in. Female NPT Maximum air inlet pressure: 180 psi (12.41 bar) Portable: Portable Weight: 16 lb (0.7264 kg) Wetted material: Steel, Polyurethane, Aluminum, Buna-N Includes: Hose Installation Kit, drum Cover, Air controller
Standards & Compliance
- Material
- Steel, Polyurethane, Aluminum, Buna-N
- Pressure Rating
- 540 psi (37 bar) max working
- HS Code
- 8413.50
Compatibility & Fitment
Mini Fire-Ball 225 is Graco's compact air-operated lubrication pump line. Pump ratio 3:1 (oil/lubricant); develops 540 psi fluid pressure; this package includes: Hose Installation Kit, Drum Cover, Air Regulator. Confirm the container/drum size, fluid type, and air supply suit the application before ordering.
Product Documentation
More from Graco
Graco
Graco Mini Fire-Ball® 225 50:1 35 lb. (16 kg) Grease Pump with Dispense Kit
253362
Graco
Graco Mini Fire-Ball® 225 50:1 400 lb. (181 kg) Grease Pump - Stationary Supply Package
253390
Graco
Graco 2:1 Ratio SaniForce Long Double Ball Piston Pump with PTFE & FKM Packings
24N344
Graco
Graco 2:1 Ratio SaniForce Long Double Ball Piston Pump with UHMWPE & FKM Packings
24N300
Graco
Graco 15:1 Merkur Pump, 0.8 gpm (3 lpm) fluid flow, Wall Mount, Pump/Gun Air Controls
G15W21
Graco
Graco Gusmer GH-2 Proportioner Package, 10 kW, 230 V, 1PH
26C200
Graco
Graco Gusmer GH-2 Proportioner Package, 10 kW, 230 V, 3PH
26C201
Graco
Graco Gusmer GH-2 Proportioner Package, 10 kW, 400 V, 3PH
26C202
Catalogue entry last verified: 2026-08-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 248097?
- 248097 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 248097.
- What is the HS code for 248097?
- The customs tariff (HS) code for 248097 is 8413.50.
- Who manufactures 248097?
- 248097 is a Graco product in the Lubrication Systems range.
- Is a datasheet available for 248097?
- Yes — the 248097 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 248097?
- The minimum order quantity is 1.
- Is 248097 available?
- Yes — 248097 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
