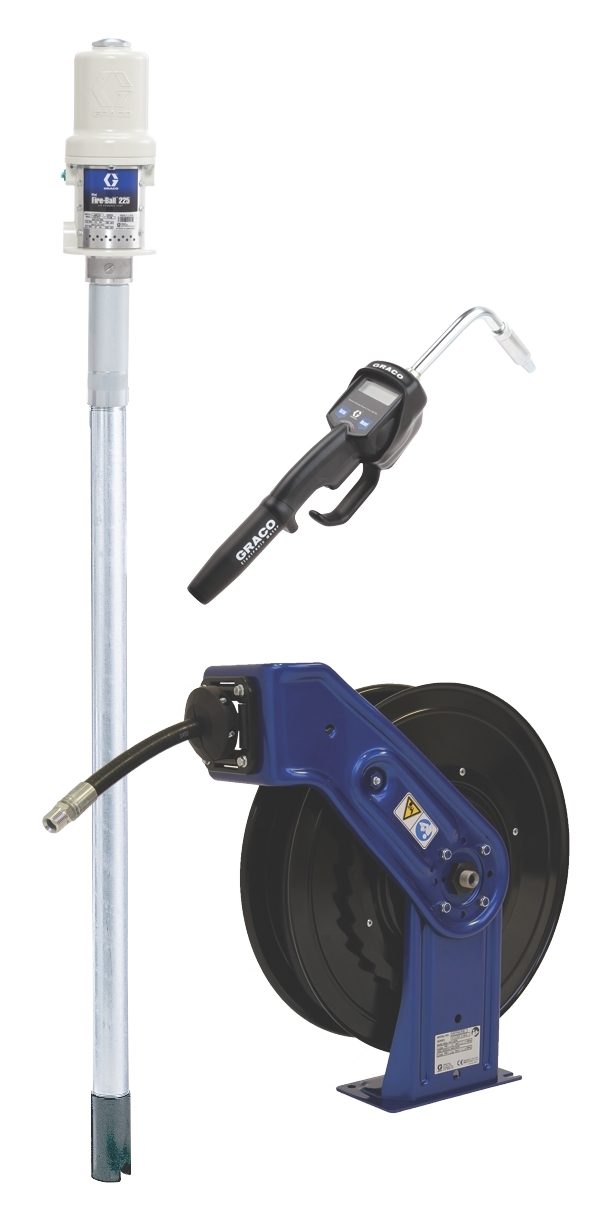

Graco Mini Fire-Ball® 225 3:1 1/2 in. x 50 ft. (12.7 mm x 15.2 m) Manual Hose Reel Package for Oil
Pricing
Request a quote
We reply within 24 hours
Product Description
Graco 248623 Mini Fire-Ball® 225 3:1 1/2 in. x 50 ft. (12.7 mm x 15.2 m) Manual Hose Reel Package for Oil, part number 248623. Mini Fire-Ball piston pump package, 3:1 pump ratio. Maximum working pressure 540 psi (37 bar). Maximum flow rate 1.84 gpm. Container size None lb. Wetted parts: Steel, Buna-N, Polyurethane, Aluminum, Rulon. Includes: Bung Adapter, Down Tube, SD Series Reel, Fluid Hose, Meter. All values read from the Graco product page (248623 on graco.com).
Technical Specifications
- Brand
- Graco
- Model
- Mini Fire-Ball
- Part number
- 248623
- Pump ratio
- 3:1
- Maximum working pressure
- 540 psi (37 bar)
- Maximum flow rate
- 1.84 gpm
- Type
- Piston Pump Package
- Application
- Industrial
- Motor type
- Pneumatic
- Compatible material
- Oil
- Container size
- None
- Air inlet size
- 0.375 in. Female NPT
- Fluid inlet size
- 1.5 in. Female NPT
- Fluid outlet size
- 1/2 in. Female NPT
- Maximum air working pressure
- 180
- Weight
- 16 lb
- Wetted material
- Steel, Buna-N, Polyurethane, Aluminum, Rulon
- Includes
- Bung Adapter, Down Tube, SD Series Reel, Fluid Hose, Meter
Standards & Compliance
- Material
- Steel, Buna-N, Polyurethane, Aluminum, Rulon
- Pressure Rating
- 540 psi (37 bar) max working
- HS Code
- 8413.50
Compatibility & Fitment
Mini Fire-Ball 225 is Graco's compact air-operated lubrication pump line. Pump ratio 3:1 (oil/lubricant); matched to None lb containers; develops 540 psi fluid pressure; this package includes: Bung Adapter, Down Tube, SD Series Reel, Fluid Hose, Meter. Confirm the container/drum size, fluid type, and air supply suit the application before ordering.
Product Documentation
More from Graco
Graco
Graco Mini Fire-Ball® 225 3:1 Universal Size Oil Pump with Suction Tube and Bung Adapter
248097
Graco
Graco Mini Fire-Ball® 225 50:1 35 lb. (16 kg) Grease Pump with Dispense Kit
253362
Graco
Graco Mini Fire-Ball® 225 50:1 400 lb. (181 kg) Grease Pump - Stationary Supply Package
253390
Graco
Graco 2:1 Ratio SaniForce Long Double Ball Piston Pump with PTFE & FKM Packings
24N344
Graco
Graco 2:1 Ratio SaniForce Long Double Ball Piston Pump with UHMWPE & FKM Packings
24N300
Graco
Graco 15:1 Merkur Pump, 0.8 gpm (3 lpm) fluid flow, Wall Mount, Pump/Gun Air Controls
G15W21
Graco
Graco Gusmer GH-2 Proportioner Package, 10 kW, 230 V, 1PH
26C200
Graco
Graco Gusmer GH-2 Proportioner Package, 10 kW, 230 V, 3PH
26C201
Catalogue entry last verified: 2026-08-13. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 248623?
- 248623 can be ordered from cballast.com as a Graco catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Graco product?
- The manufacturer part number is 248623.
- What is the HS code for 248623?
- The customs tariff (HS) code for 248623 is 8413.50.
- Who manufactures 248623?
- 248623 is a Graco product in the Lubrication Systems range.
- Is a datasheet available for 248623?
- Yes — the 248623 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 248623?
- The minimum order quantity is 1.
- Is 248623 available?
- Yes — 248623 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
