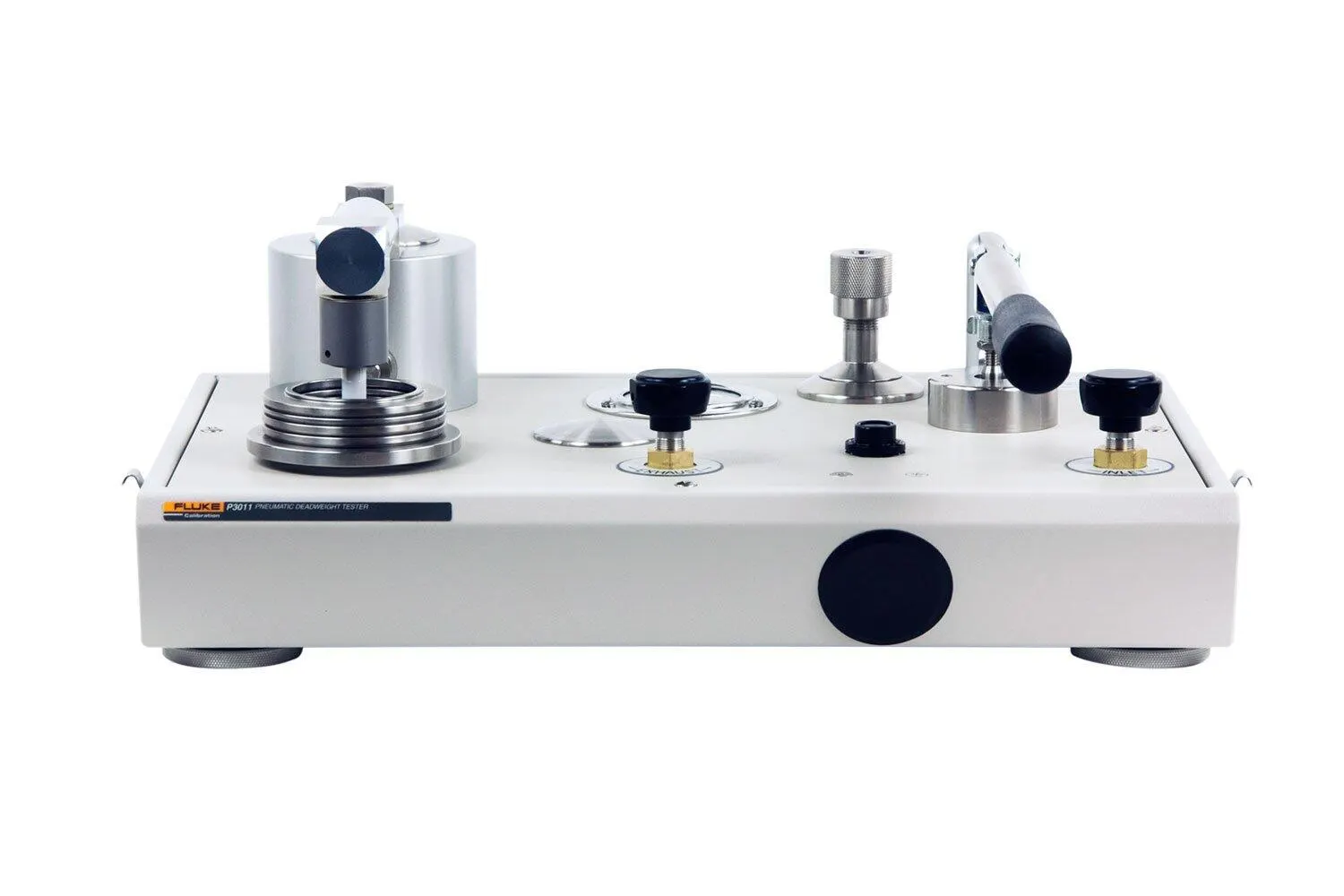

Fluke Calibration P3000 Pneumatic Deadweight Testers

The combined pressure and vacuum deadweight tester provide calibrations from 1-30 inHg vacuum (0.03-1 bar) and 3-500 psi (0.2-35 bar) in one primary standard.

Manufacturer part number (MPN)

4184776 Brand: Fluke Category: Tools Accuracy1: ±0.015% of reading (±0.008% optional) Standard weight material: Series 3 non-magnetic austenitic stainless steel Weight density: 7.8 g/cm³ Optional fractional weights: Solution heat treated aluminum Piston material: Ceramic Cylinder material: Martensitic steel Coefficient of expansion: 11 ppm/°C Model P3016 Piston material: Tungsten carbide Model P3016 Cylinder material: Tungsten carbide Model P3016 Coefficient of Expansion: 11 ppm/°C Test port adaptors: 1/8, 1/4, 3/8 and ½ NPT or BSP Instrument weight: 24 lbs Instrument size (W x D x H): 17.5 x 12 x 8.5 Mass set weight (typical): 65 lbs P3012, P3022 Pressure: 1 inH2O, (5 mbar) P3013, P3023 Pressure: 2 inH2O, (10 mbar) P3014, P3015, P3025 Pressure: 1 psi, (0.1 bar) P3016, P3031, P3032: 1 psi, (0.1 bar) P3011, P3022, P3023, P3025 Vacuum: 0.2 inHg (10 mbar) Pressure mode: Max pressure 300 psi (20 bar) Vacuum mode: To 90% vacuum Krytox: For oxygen-safe applications (optional) PressCal Software: Windows-based software program that allows users to easily apply all necessary corrections to enhance the deadweight tester performance. Calibration details are then stored and/or used to automatically create a calibration certificate. PressCal is provided as standard with all 0.008% instruments.

HS Code

9031.80

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/pressure-calibrators/fluke-calibration-p3000
