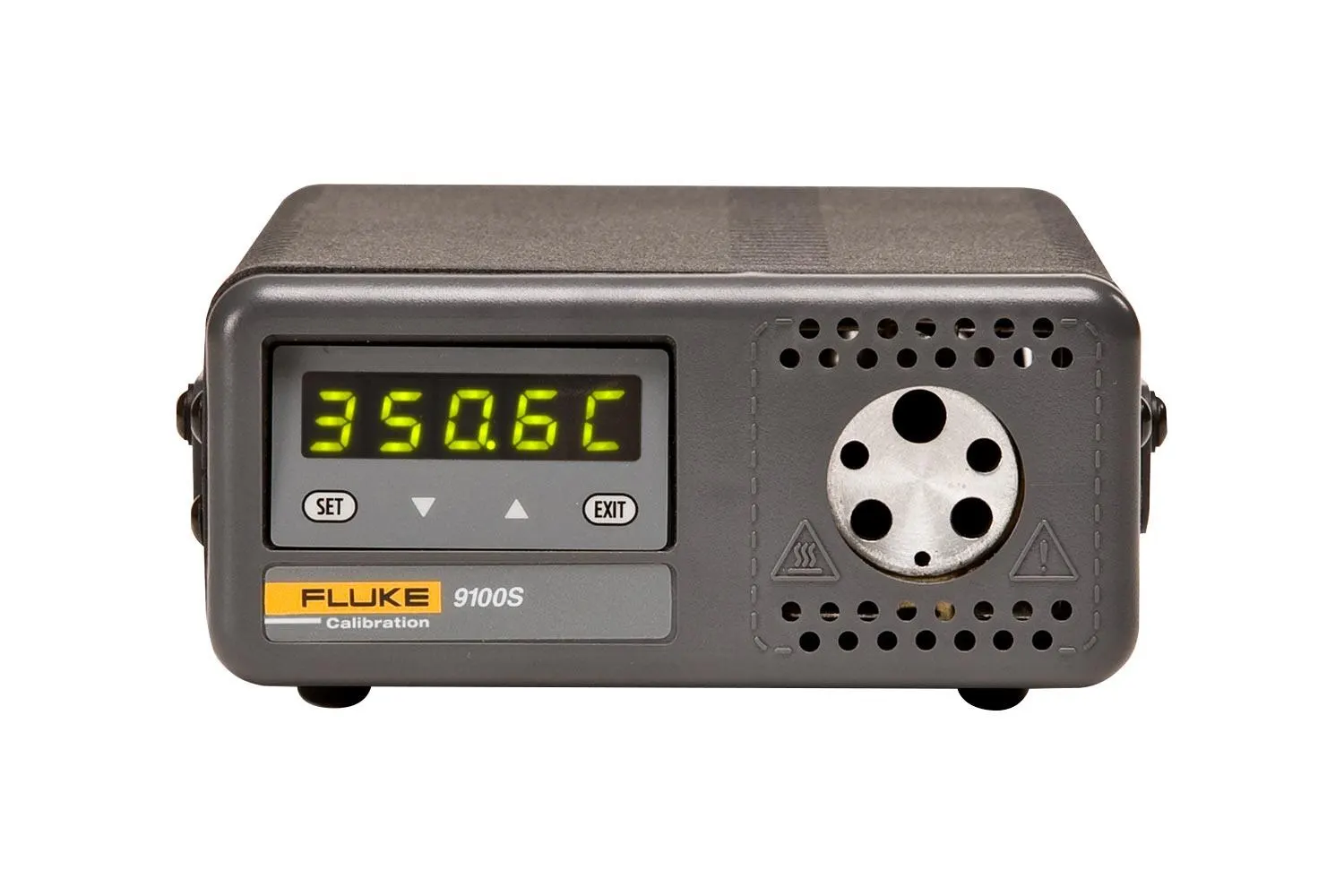

Fluke Calibration 9100S Handheld Dry-Well

Truly portable handheld dry-block temperature calibrators. They’re the smallest, lightest, and most portable dry-wells in the world.

Manufacturer part number (MPN)

1885080

Brand

Fluke

Category

Tools

Specifications 9100S

9102S

Range 35°C to 375°C (95°F to 707°F)

–10°C to 122°C (14°F to 252°F) at 23°C ambient

Accuracy ±0.25°C at 50°C; ±0.25°C at 100°C; ±0.5°C at 375°C

±0.25°C

Stability ±0.07°C at 50°C; ±0.1°C at 100°C; ±0.3°C at 375°C

±0.05°C

Well-to-well uniformity

±0.2°C with sensors of similar size at equal depths within wells

Stabilization 5 minutes

7 minutes

102 mm (4 in); 1.6 mm (1/16 in) hole is 89 mm (3.5 in) deep

102 mm (4 in)

Removable inserts N/A

Available in sizes from 1.6 mm (1/16 in) to 11.1 mm (7/16 in) [6.4 mm (1/4 in) and 4.8 mm (3/16 in) included]

Size (H x W x D) 57 x 125 x 150 mm (2.25 x 4.9 x 6.1 in)

99 x 140 x 175 mm (3.9 x 5.5 x 6.9 in)

Weight 1 kg (2 lb 3 oz)

1.8 kg (4 lb)

Computer interface

RS-232 included

Data at 50°C, 100°C, 150°C, 200°C, 250°C, 300°C and 375°C

Data at –10°C, 0°C, 25 °C, 50°C, 75 °C,100°C and 122°C

HS Code

9031.80

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/temperature-calibrators/fluke-calibration-9100s
