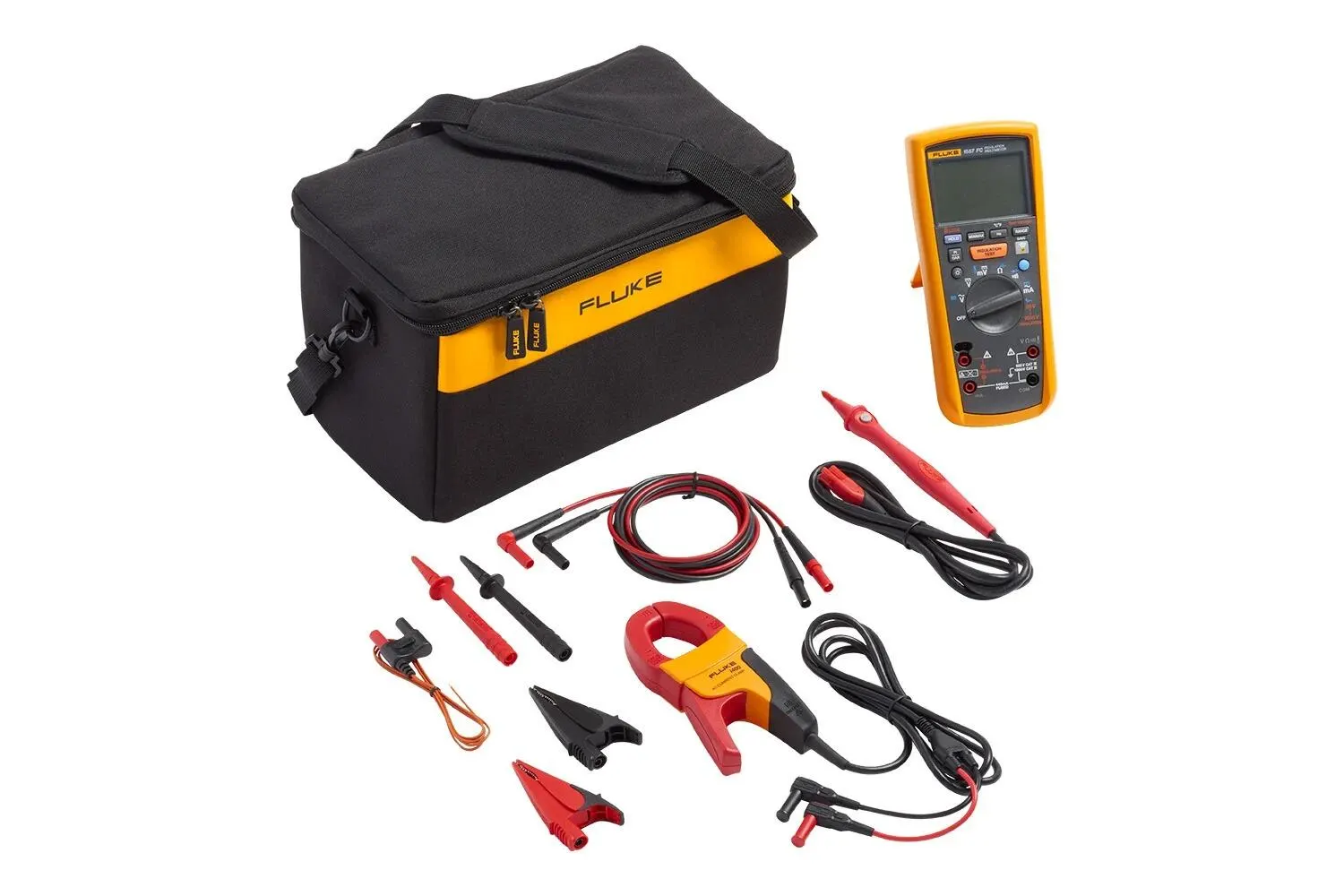

Fluke 1587/I400 Current Clamp FC Kit

Includes the 1587 FC 2-in-1 Insulation DMM and the i400 Current Clamp.

Manufacturer part number (MPN)

4692725

Brand

Fluke

Category

Tools

600.0 mV Resolution

0.1 mV

600.0 mV Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)

±(1% + 3)

600.0 mV Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)

±(2% + 3)

6.000 V Resolution

0.001 V

6.000 V Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)

±(1% + 3)

6.000 V Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)

±(2% + 3)

1000 V Resolution

1 V

1000 V Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts)

±(2% + 3)

1000 V Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts)

±(2% + 3)¹

600.0 mV Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)

+(2% + 3), -(6% - 3)

6.000 V Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)

+(2% + 3), -(6% - 3)

1000 V Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts)

+(2% + 3), -(6% - 3)

Range Resolution

Accuracy ±(% of Rdg + Counts)

6.000 V dc 0.001 V

±(0.09% + 2)

60.00 V dc 0.01 V

±(0.09% + 2)

600.0 V dc 0.1 V

±(0.09% + 2)

1000 V dc 1 V

±(0.09% + 2)

Input impedance

10 MΩ (nominal), <100 pF

Normal mode rejection ratio

>60 dB @ 50 Hz or 60 Hz

Common mode rejection ratio

>120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance)

600.0 mVdc 0.1 mV

±(0.1% + 1)

Range

400 mA

Resolution

0.1 mA

Accuracy ±(% of Rdg+Counts)

±(1.5% + 2)¹

Burden voltage (Typical)

2 mV/mA

Overload

600 mA for 2 minutes maximum

Fuse protection for mA input

0.44 mA, 1000 V, IR 10 kA

AC conversion

Inputs are ac-coupled and calibrated to the rms value of its wave input

600.0 Ω 0.1 Ω

±(0.9% + 2)

6.000 kΩ 0.001 kΩ

±(0.9% + 2)

60.00 kΩ 0.01 kΩ

±(0.9% + 2)

600.0 kΩ 0.1 KΩ

±(0.9% + 2)

6.000 MΩ 0.001 MΩ

±(0.9% + 2)

50.0 MΩ ² 0.01 MΩ

±(1.5% + 3)

Overload protection

1000 V rms or dc

Open circuit test voltage

<8.0 V dc

Short circuit current

<1.1 mA

Diode test indication

Display voltage drop: 0.6 V at1.0 mA nominal test current:

Accuracy

±(2% + 3)

Continuity indication

Continuous audible tone for testresistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω

Open circuit voltage

<8.0 V

Response time

>1 m sec

99.99 Hz 0.01 Hz

±(0.1% + 1)

999.9 Hz 0.1 Hz

±(0.1% + 1)

9.999 kHz 0.001 kHz

±(0.1% + 1)

99.99 kHz 0.01 kHz

±(0.1% + 1)

600.0 mV ac V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

100.0 mV

V ac Sensitivity (RMS Its Wave)¹ 20 kHz to 100 kHz

150.0 mV

6.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

1.0 V

6.0 V V ac Sensitivity (RMS Its Wave)¹ 20 kHz to 100 kHz

1.5 V

6.0 V DC Trigger Levels¹ to 20 kHz²

-400.0 mV and 2.5 V

60.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

10.0 V

60.0 V V ac Sensitivity (RMS Its Wave)¹ 20 kHz to 100 kHz

36.0 V

60.0 V DC Trigger Levels¹ to 20 kHz²

1.2 V and 4.0 V

600.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

100.0 V

600.0 V DC Trigger Levels¹ to 20 kHz²

12.0 V and 40.0 V

1000.0 V V ac Sensitivity (RMS Its Wave)¹ 5 Hz to 20 kHz

300.0 V

1000.0 V DC Trigger Levels¹ to 20 kHz²

12.0 V and 40.0 V

1000 nF 1 nF

±(1.2% + 2)

10.00 μF 0.01 μF

±(1.2% + 2)

100.0 μF 0.1 μF

±(1.2% ±90 counts)

9999 μF 1 μF

±(1.2% ±90 counts)

-40 ° C to 537 ° C 0.1 °C

±(1% + 10 counts)

-40 ° F to 998 ° F 0.1 °F

±(1% + 18 counts)

Measurement range

0.01 MΩ to 2 GΩ

Test voltages

50, 100, 250, 500, 1000 V

Test voltage accuracy

+20%, -0%

Short-circuit test current

1 mA nominal

Auto discharge

Discharge time <0.5 second for C = 1 μF or less

Live circuit detection

Inhibit test if terminal voltage > 30 V prior to initialization of test

Maximum capacitive load

Operable with up to 1 μF load

50 V (0% to +20%) Display range

0.01 to 6.00 MΩ

50 V (0% to +20%) Resolution

0.01 MΩ

50 V (0% to +20%) Test current

1 mA @ 50 kΩ

50 V (0% to +20%) Resistance accuracy ±(% of Rdg + Counts)

±(3% + 5 counts)

100 V (0% to +20%) Display range

0.01 to 6.00 MΩ

100 V (0% to +20%) Resolution

0.01 MΩ

100 V (0% to +20%) Test current

1 mA @ 100 kΩ

100 V (0% to +20%) Resistance accuracy ±(% of Rdg + Counts)

±(3% + 5 counts)

250 V (0% to +20%) Display range

0.1 to 60.0 MΩ

250 V (0% to +20%) Resolution

0.1 MΩ

250 V (0% to +20%) Test current

1 mA @ 250 kΩ

250 V (0% to +20%) Resistance accuracy ±(% of Rdg + Counts)

±(1.5% + 5 counts)

500 V (0% to +20%) Display range

0.1 to 60.0 MΩ

500 V (0% to +20%) Resolution

0.1 MΩ

500 V (0% to +20%) Test current

1 mA @ 500 kΩ

500 V (0% to +20%) Resistance accuracy ±(% of Rdg + Counts)

±(1.5% + 5 counts)

1000 V (0% to +20%) Display range

0.1 to 60.0 MΩ

1000 V (0% to +20%) Resolution

0.1 MΩ

1000 V (0% to +20%) Test current

1 mA @ 1 MΩ

1000 V (0% to +20%) Resistance accuracy ±(% of Rdg + Counts)

±(1.5% + 5 counts)

Maximum voltage applied to any terminal and common

1000 V

Storage temperature

-40 °C to 60 °C (-40 °F to 140 °F)

Operating temperature

-20 °C to 55 °C (-4 °F to 131 °F)

Temperature coefficient

0.05 x (specified accuracy) per °C for temperatures 28 °C (82 °F)

Relative humidity

Noncondensing

Vibration

Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument

Radio frequency communication

2.4 GHz ISM Band

Radio frequency certification

FCC: T68-FBLE, IC: 6627A-FBLE

International

IEC 61326-1:Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A

Korea (KCC)

Class A Equipment (Industrial Broadcasting & Communication Equipment)

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

Enclosure protection

IEC 60529: IP40 (non-operating)

IEC 61010-1

Pollution Degree 2

IEC 61010-2-033

CAT IV 600 V / CAT III 1000 V

Batteries

Four AA batteries (NEDA 15A or IEC LR6)

Battery life

Meter use 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.

Size (H x W x L)

5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)

Weight

550 g (1.2 lb)

Altitude Operating

2000 m

Altitude Storage

12,000 m

Over-range capability

110% of range except for capacitance which is 100%

Frequency overload protection

<107 V Hz

Nominal current range

400 A

Continuous current range

1 A - 400 A

Maximum non-destructive current

1000 A

Lowest measurable current

1 A

HS Code

9030.33
