Fluke

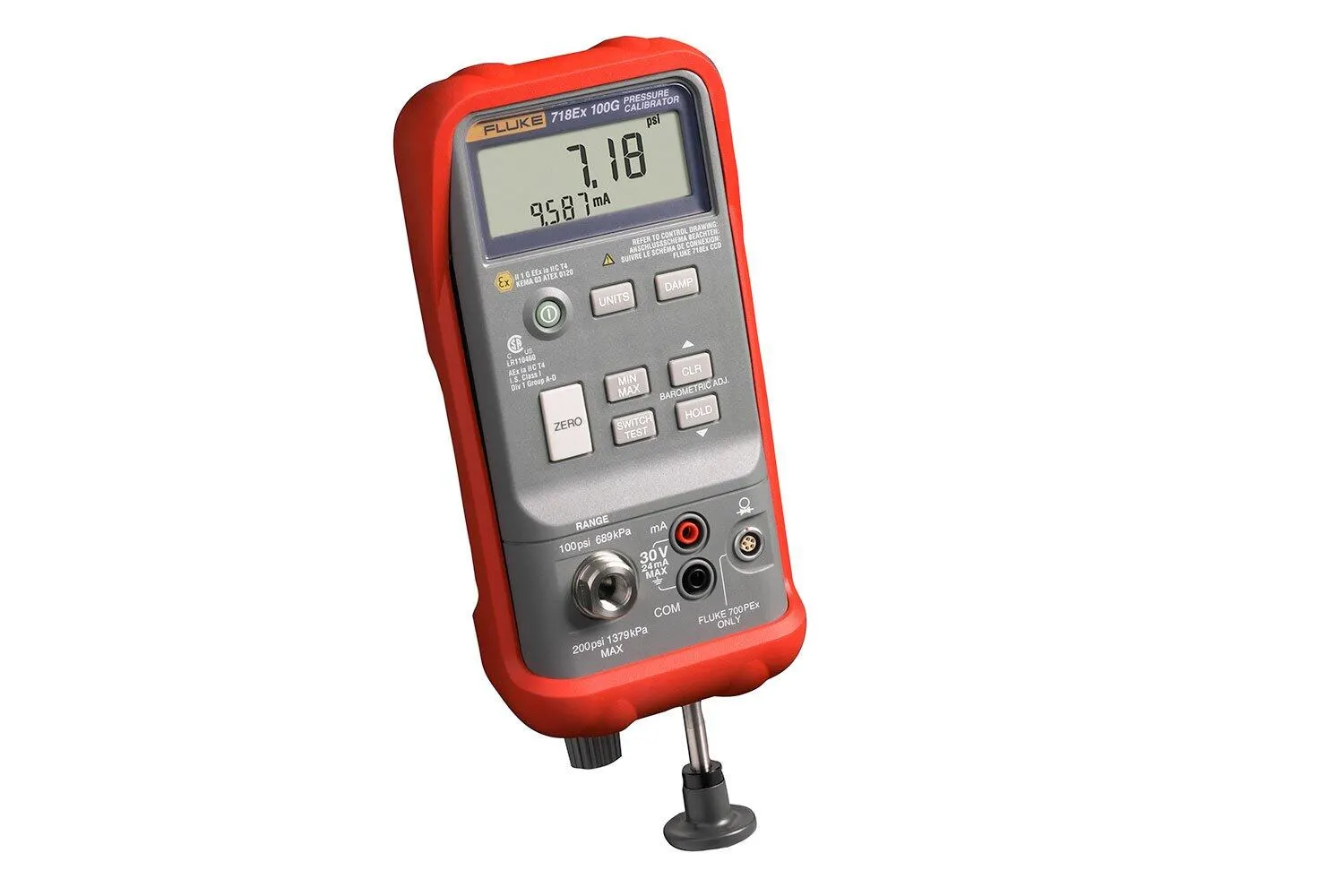

Fluke 718EX Intrinsically Safe Pressure Calibrator
Part number2096310HS code9031.80
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
The Fluke 718Ex Intrinsically Safe Pressure Calibrator is a powerful self-contained portable calibrator for use in explosive environments. Get specs & details.
Technical Specifications
- Manufacturer part number (MPN)
- 2096310
- Brand
- Fluke
- Category
- Tools
- Fluke 718Ex 30G Range
- -830 mbar to 2 bar (internal sensor) Over pressure: 3x FS
- Fluke 718Ex 30G Resolution
- 0.0001 bar
- Fluke 718Ex 30G Accuracy
- 0.05% FS
- Fluke 718Ex 30G Functions
- Zero, Min, Max, Hold, Damp
- Fluke 718Ex 100G Range
- -830 mbar to 2 bar (internal sensor) Over pressure: 2x FS
- Fluke 718Ex 100G Resolution
- 0.001 bar
- Fluke 718Ex 100G Accuracy
- 0.05% FS
- Fluke 718Ex 100G Functions
- Zero, Min, Max, Hold, Damp
- Fluke 718Ex 300G Range
- -830 mbar to 20 bar (internal sensor) Over pressure: 375 psi, 25 bar
- Fluke 718Ex 300G Resolution
- 0.0001 bar
- Fluke 718Ex 300G Accuracy
- 0.05% FS
- Fluke 718Ex 300G Functions
- Zero, Min, Max, Hold, Damp
- Fluke 718Ex series Range
- Via pressure module connector 29 pressure modules, 2.5 mbar to 700 bar Over pressure per pressure module specs
- Fluke 718Ex series Resolution
- Per pressure module specs
- Fluke 718Ex series Accuracy
- To 0.025% of full span, per pressure module specs
- Fluke 718Ex series Functions
- Zero, Min, Max, Hold, Damp
- Fluke 718Ex series Source pressure, built in pump range
- -820 mbar to full scale
- Measure accuracy Range
- 0-24 mA
- Measure accuracy Resolution
- 0.001 mA
- Measure accuracy Accuracy
- 0.02% rdg ±2 counts
- Display
- LCD, 5 digit pressure and current simultaneous
- Operating temperature
- -10°C to 55°C
- Storage temperature
- -40°C to 60°C
- Humidity (without condensation)
- 95% (10°C to 30°C)
- Operating altitude
- 3,000 m max
- Safety
- ATEX II 1G Ex ia IIC T4 compliant
- Size (L x W x H)
- 216 x 94 x 66 mm (with holster)
- Weight
- Approx. 992 g (with holster)
- Warranty
- Three years, one year for pump
- Shock
- 1 meter drop test
- Vibration
- Random, 2 G, 5-500 Hz
- Battery type
- One 9-volt alkaline battery ANSI/NEDA 1604A or IEC 6LR619V
- Battery life
- 4 to 20 hours, depending on functions used
Standards & Compliance
- HS Code
- 9031.80
Cross References
- OEM-URL https://www.fluke.com/en-us/product/intrinsically-safe/fluke-718ex
Product Documentation
Document preview: 718Ex Intrinsically Safe Pressure Calibrator and Pressure Modules
More from Fluke
Fluke
Fluke T5-600/62MAX+/1AC II IR Thermometer, Electrical Tester and Voltage Detector Kit
4297115
Fluke

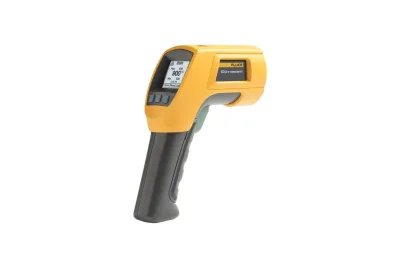

572-2 High Temperature Infrared Thermometer
5065952
Fluke

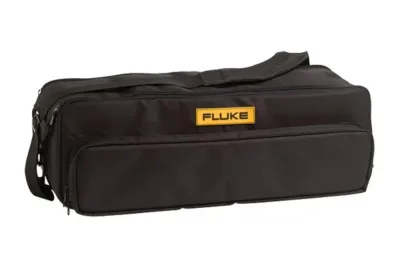

Fluke C500L Soft Carrying Case (Large)
FLUKE-C500L
Fluke
Fluke 830/MAGNET
4551330
Fluke

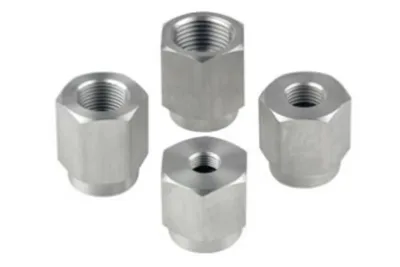

P5540 and P5541 Adapter Sets
3875928
Fluke

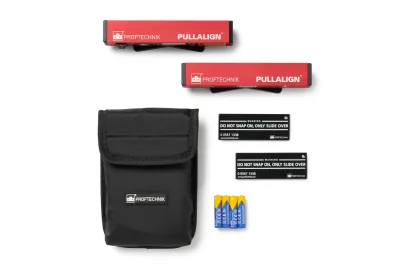

Fluke PULLALIGN
FLUKE-PULLALIGN
Fluke

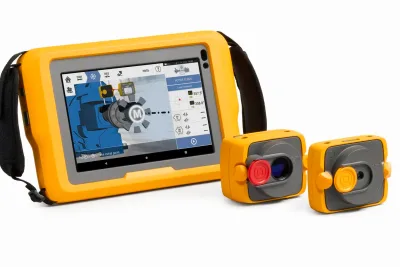

Fluke RotAlign Core
FLUKE-ROTALIGN-CORE
Fluke

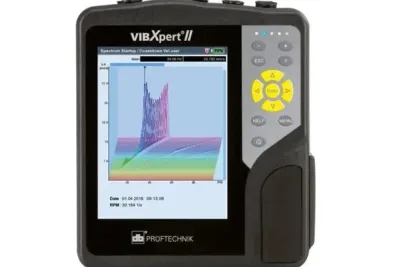

Vibxpert II
