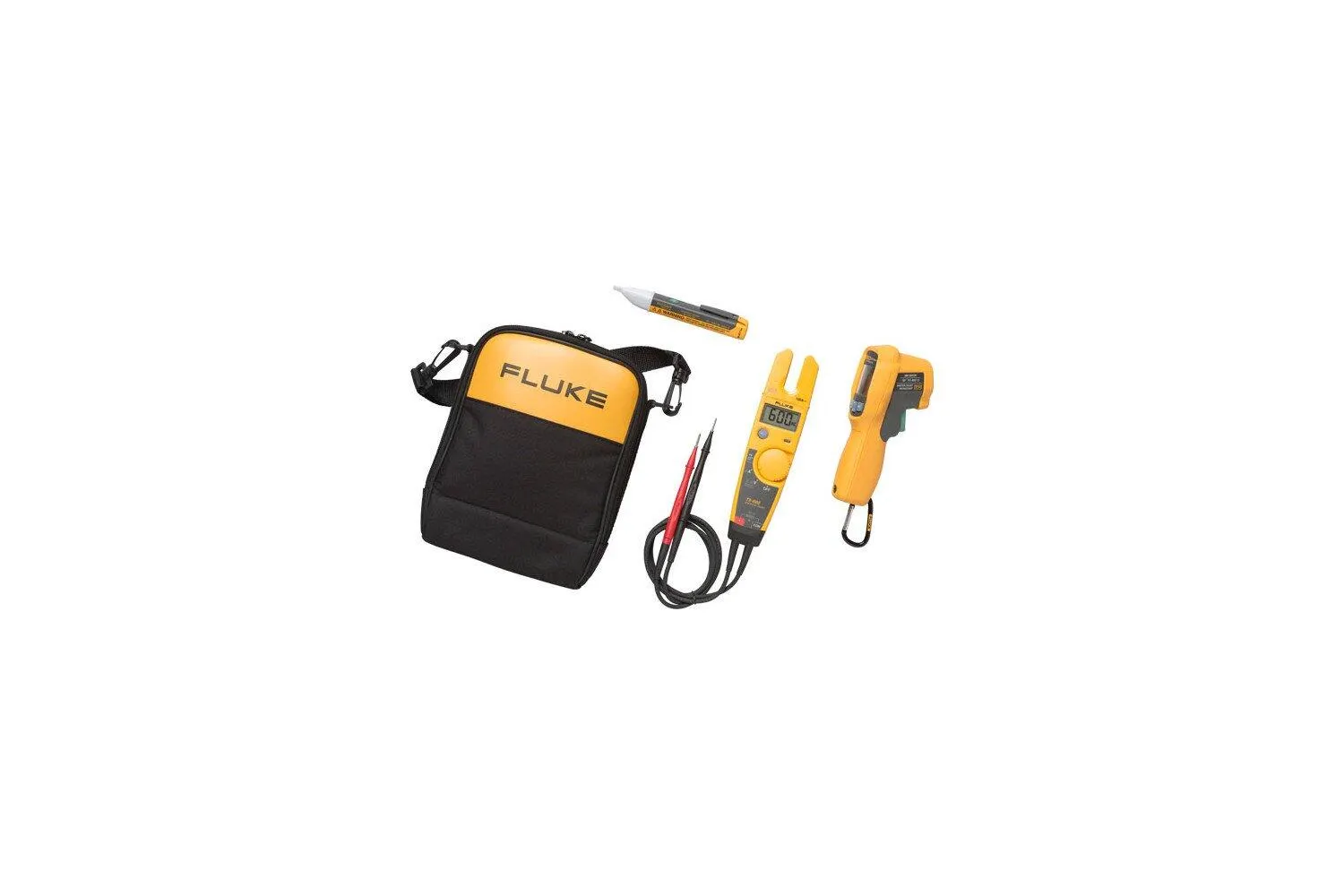

Fluke T5-600/62MAX+/1AC II IR Thermometer, Electrical Tester and Voltage Detector Kit

Fluke T5-600/62MAX+/1AC II IR Thermometer, Electrical Tester and Voltage Detector Kit (part number 4297115) is listed under Safety & Detection / Tools. Jaw opening: 12.9 mm (0.5 in); Max wire size: 1/0 THHN cable; Current range AC rms: 0 to 100.0 A; Accuracy AC current (50/60 Hz): 3% ± 3 counts; AC Response: Averaging; Voltage range AC: 0 to 600 V.

Manufacturer part number (MPN)

4297115

Brand

Fluke

Category

Tools

Jaw opening

12.9 mm (0.5 in)

Max wire size

1/0 THHN cable

Current range AC rms

0 to 100.0 A

Accuracy AC current (50/60 Hz)

3% ± 3 counts

AC Response

Averaging

Voltage range AC

0 to 600 V

Accuracy AC voltage

1.5% ± 2 counts

Voltage range DC

0 to 600 V

Accuracy DC voltage

1% ± 1 count

Resistance range

0 to 1000 Ω

Continuity beeper threshold

On at 400 Ω

Volts indicator LED threshold

Guaranteed on by 30 V AC

Operating temperature

-10°C to 50°C

Storage temperature

-30°C to 60°C

Humidity (without condensation)

0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C)

Dust/water resistance

Yes

Operating altitude

2000 meters max

Temperature coefficient

0.1 x (specified accuracy)/°C ( 28°C)

Measurement Category

IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac

Agency approvals

CSA, TUV

Maximum voltage

600 V between any terminal and earth ground

Size

30.5 x 51 x 203 mm

Weight

300 g

Warranty

Two-years

Battery life

200 hour zinc chloride, 400 hour alkaline

Battery type

2 x AA

Low battery indicator

Yes

Current sensor opening

12.9 mm

Calibration cycle

1 year

Test leads Type

Heavy duty, flexible leads rated for 1000 V use. Field replaceable leads terminate in male shrouded banana plugs

Test leads Probes

One red, one black. Detachable Slim-Reach™ probe tips

Test leads Styles

TP1 Slim Reach™ test brobes

Safety

CAT IV 600 V, CAT III, 1000 V

Temperature range

-30°C to 650°C (-22°F to 1202°F)

Accuracy

±1.0°C or ±1.0% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0

Response time (95%)

< 300 ms (95% of reading)

Spectral response

8 to 14 microns

Emissivity

0.10 to 1.00

Optical resolution

12:1 (calculated at 90% energy)

Display resolution

0.1°C (0.2°F)

Repeatability of readings

±0.5% of reading or < ±0.5°C (1°F), whichever is greater

Power

AA battery

Operating humidity

10% to 90% RH non-condensing at 30°C (86°F)

Storage altitude

12,000 meters above mean sea level

IP rating

IP 54 per IEC 60529

Drop test

3 meters

Vibration and shock

IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms

EMC

EN 61326-1:2006 EN 61326-2:2006

Standards and agency approval Compliance

EN/IEC 61010-1: 2001

Standards and agency approval Laser safety

FDA and EN 60825-1 Class II

HS Code

9030.33
