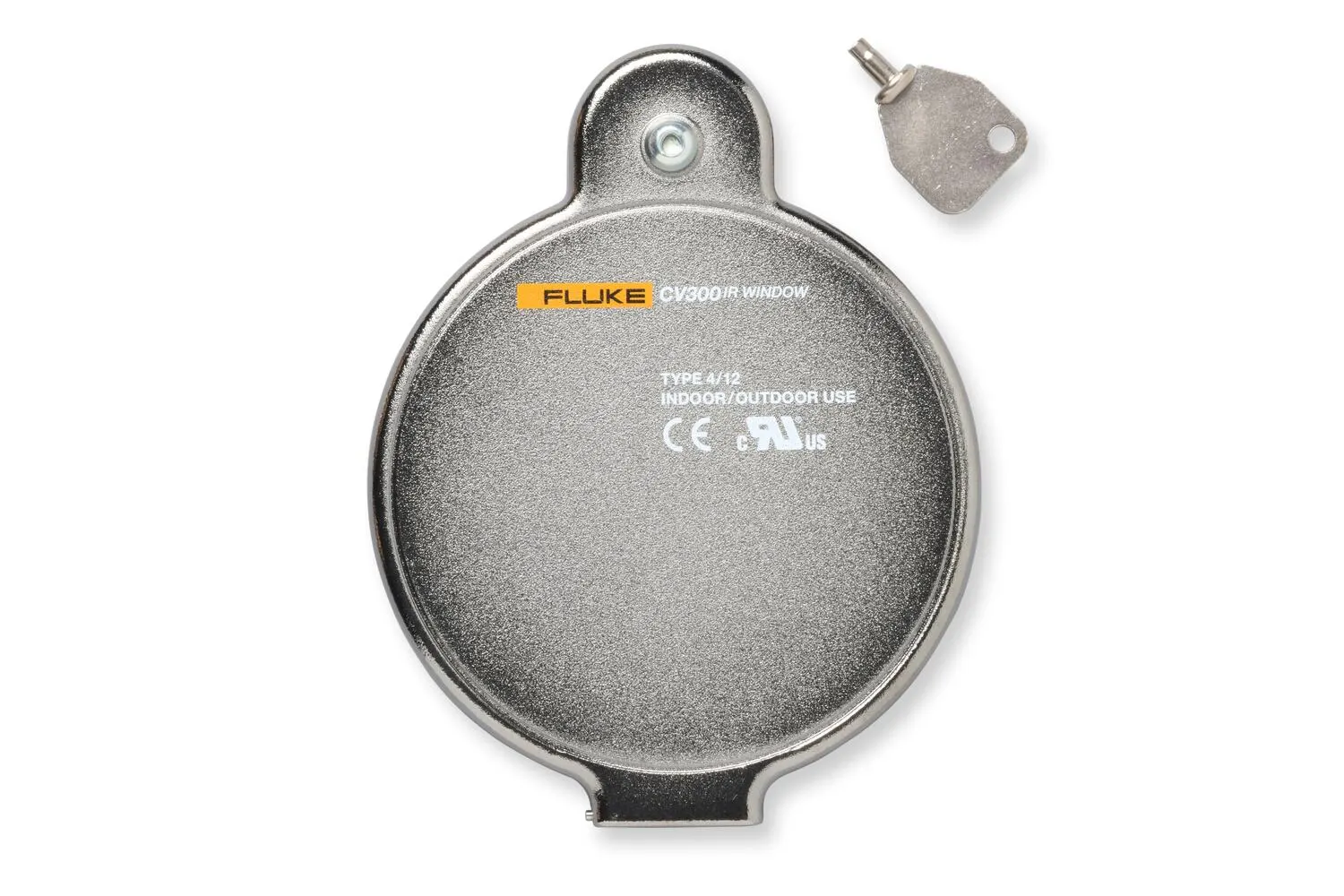

Fluke CV301 75 mm (3 in) Infrared Window
Pricing
Request a quote
We reply within 24 hours
Product Description
CV300 infrared window – less than 5 minute install and grounding, torture tested with quick-turn or security keyed access.
Technical Specifications
- Manufacturer part number (MPN)
- 4338164
- Brand
- Fluke
- Category
- Tools
- Size
- 75 mm (3 in)
- Voltage range
- Any
- NEMA environment type
- Type 4/12 (indoor/outdoor)
- AutoGround™
- Yes
- Operating temperature
- -40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent
- Compatible with all Fluke cameras
- Yes
- Jam nut locking system
- Yes
- Cover and fastener permanently attached
- Yes
- Single-hole install
- Yes
- Hand turn and security key door latch options
- Yes
- Visual inspection and fusion capable
- Yes
- Short/Mid/Long-wave IR and UV capable
- Yes
- Arc-tested (IEEE C37.20.7)
- 63 kA for 30 cycles @ 60 Hz at KEMA
- CSA C22.2 No.
- Yes
- CSA type rating
- Type 4
- IP rating
- IP67 at TUV
- Lloyds register
- Up to 11 kV marine switchgear, indoor or outdoor (offshore only)
- Vibration rating
- IEC60068-2-6 at TUV
- Humidity rating
- IEC60068-2-3 at TUV
- Actual mounting hole diameter required
- 89.89 mm (3.539 in)
- Greenlee® punch kit = punch/die
- 739BB = 1431AV/1432AV
- Recommended max panel thickness
- 10 gage
- Overall window height
- 141.5 mm (5.57 in)
- Overall window width
- 111.5 mm (4.39 in)
- Overall window thickness
- 16.2 mm (0.64 in)
- Door latch
- Security Key
- Optic insert diameter
- 75 mm (2.96 in)
- Viewing aperture diameter
- 67.95 mm (2.675 in)
- Viewing aperture area
- 3626 mm2 (5.62 in2)
- Thickness
- 2 mm (0.08 in)
- Warranty
- Lifetime replacement against manufacturing defects
