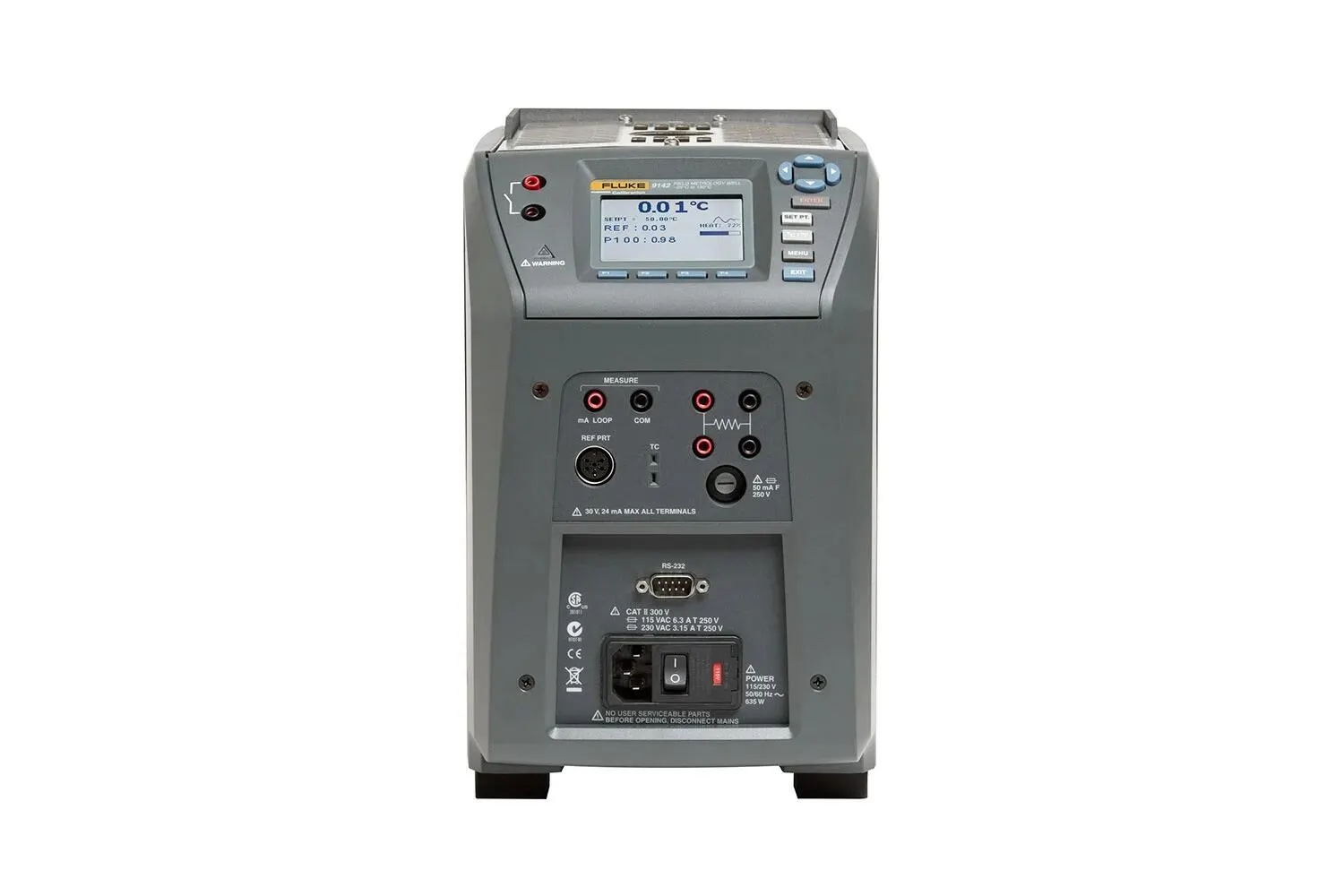

Fluke Calibration 9143 Field Metrology Well

Fluke 9143 Field Metrology Wells: ✅ High performance. ✅ Free shipping at fluke.com. ✅ Unmatched value. ✅ Official Fluke. Learn more

Manufacturer part number (MPN)

3054547

Brand

Fluke

Category

Tools

Temperature range at 23°C

33°C to 350°C (91°F to 662°F)

Display accuracy

±0.2°C Full Range

Stability

±0.02°C at 33°C ±0.02°C at 200°C ±0.03°C at 350°C

Axial uniformity at 40 mm (1.6 in)

±0.04°C at 33°C ±0.1°C at 200°C ±0.2°C at 350°C

Radial uniformity

±0.01°C at 33°C ±0.015°C at 200°C ±0.02°C at 350°C

Hysteresis

0.03

Operating conditions

0°C to 50°C, 0% to 90% RH (non-condensing)

Immersion (well) depth

150 mm (5.9 in)

Insert OD

25.3 mm (1.00 in)

Heating time

5 min: 33°C to 350°C

Cooling time

32 min: 350°C to 33°C 14 min: 350°C to 100°C

Resolution

0.01°

Display

LCD, °C or °F user-selectable

Size (H x W x D)

290 x 185 x 295 mm (11.4 x 7.3 x 11.6 in)

Weight

7.3 kg (16 lb)

Power requirements

100 V to 115 V (±10%), 50/60 Hz, 1400 W 230 V (±10%), 50/60 Hz, 1800 W

Computer interface

RS-232 interface

Calibration

Accredited calibration included

Automation

Use the 1586A Super-DAQ to automate temperature sensor calibration

Reference resistance range

0 ohms to 400 ohms

Reference resistance accuracy2

0 ohms to 42 ohms: ±0.0025 ohms 42 ohms to 400 ohms: ±60 ppm of reading

Reference characterizations

ITS-90, CVD, IEC-751, Resistance

Reference measurement capability

4-wire

Reference probe connection

6-pin Din with Infocon Technology

Built-in RTD thermometer readout accuracy

NI-120: ±0.015°C at 0°C PT-100 (385): ±0.02°C at 0°C PT-100 (3926): ±0.02°C at 0°C PT-100 (JIS): ±0.02°C at 0°C

RTD resistance range

0 ohms to 400 ohms

RTD resistance accuracy‡

0 ohms to 25 ohms: ±0.002 ohms 25 ohms to 400 ohms: ±80 ppm of reading

RTD characterizations

PT-100 (385),(JIS),(3926), NI-120, Resistance

RTD measurement capability

4-wire RTD (2-,3-wire RTD w\ Jumpers only)

RTD connection

4 terminal input

Built-in TC thermometer readout accuracy

Type J: ±0.7°C at 660°C Type K: ±0.8°C at 660°C Type T: ±0.8°C at 400°C Type E: ±0.7°C at 660°C Type R: ±1.4°C at 660°C Type S: ±1.5°C at 660°C Type M: ±1.4°C at 660°C Type L: ±0.7°C at 660°C Type U: ±0.75°C at 600°C Type N: ±0.9°C at 660°C Type C: ±1.1°C at 660°C

TC millivolt range

–10 mV to 75 mV

Voltage accuracy

0.025% of reading + 0.01 mV

Internal cold junction compensation accuracy

±0.35°C (ambient of 13°C to 33°C)

TC connection

Small connectors

Built-in mA readout accuracy

0.02% of reading + 2 mV

mA range

Cal 4-22 mA, Spec 4-24 mA

mA connection

2 terminal input

Loop power function

24 V DC loop power

HS Code

9031.80
