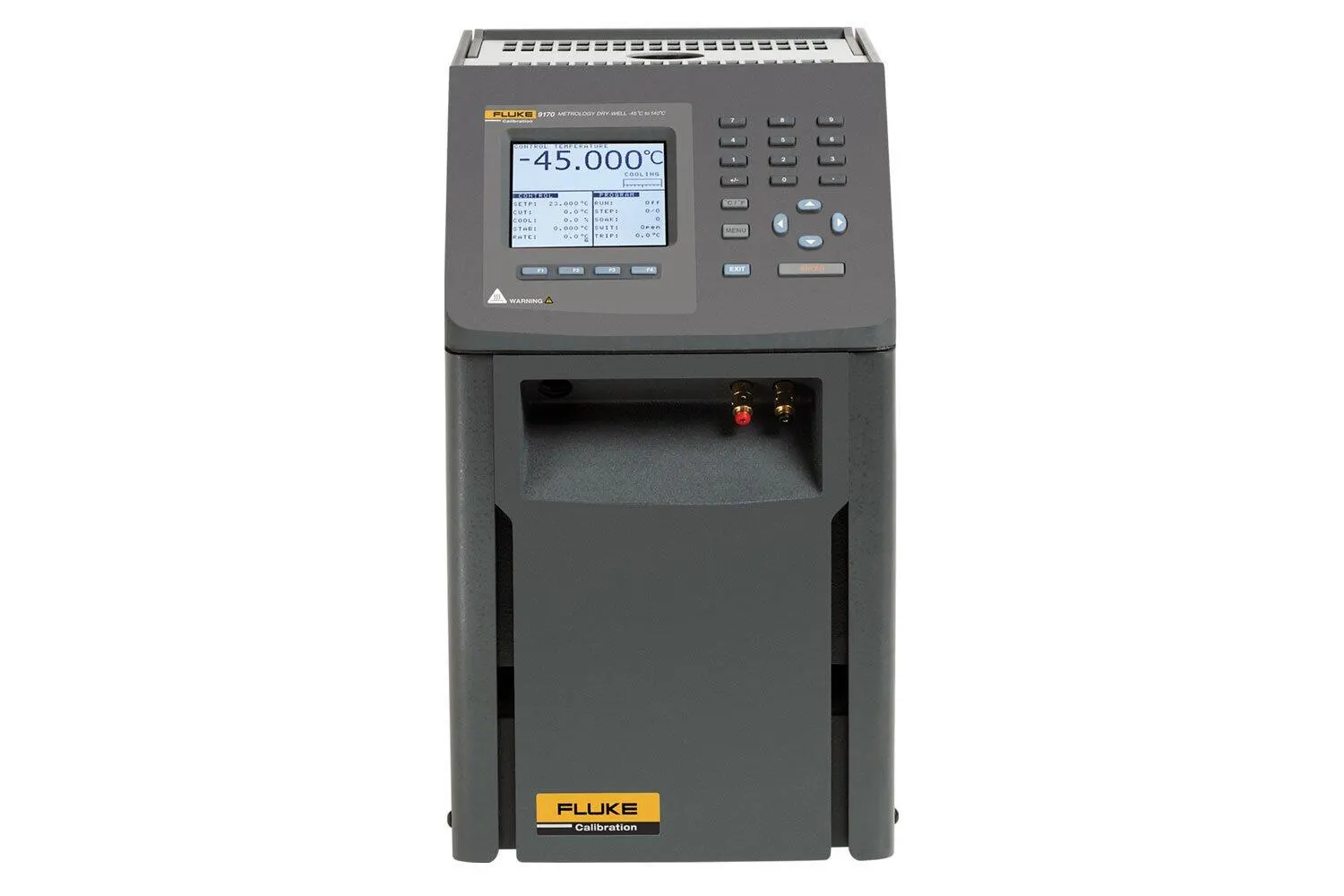

Fluke Calibration 9170 Metrology Well

Combining bath-level performance with dry-well functionality and legitimate reference thermometry, metrology wells bring lab-quality performance to the field.

Manufacturer part number (MPN)

2458800

Brand

Fluke

Category

Tools

Range (at 23°C ambient)

–45°C to 140°C (–49°F to 284°F)

Display accuracy

±0.1°C full range

Stability

±0.005°C full range

Axial uniformity

±0.1°C at –45°C ±0.04°C at –35°C ±0.02°C at 0°C ±0.07°C at 140°C

Radial uniformity

±0.01°C full range

Hysteresis

0.025°C

Well depth

160 mm (6.3 in)

Resolution

0.001°C

Display

LCD, °C or °F, user-selectable

Key pad

Ten key with decimal and ± button. Function keys, menu key, and °C / °F key.

Cooling time

44 min: 23°C to –45°C 19 min: 23°C to –30°C 19 min: 140°C to 23°C

Heating time

32 min: 23°C to 140°C 45 min: –45°C to 140°C

Size (H x W x D)

366 x 203 x 323 mm (14.4 x 8 x 12.7 in)

Weight

14.2 kg (31.5 lb)

Power

115 V AC (±10%), or 230 V AC (±10%), 50/60 Hz, 550 W

Computer interface

RS-232 Interface with 9930 Interface-it control software included

Traceable calibration (NIST)

Data at –45°C, 0°C, 50°C, 100°C, and 140°C

Specifications

Built-in Reference Input

Temperature range

–200°C to 962°C (–328°F to 1764°F)

Resistance range

0 Ω to 400 Ω, auto-ranging

Characterizations

ITS-90 subranges 4, 6, 7, 8, 9, 10, and 11 Callendar-Van Dusen (CVD): R0, a, b, d

Resistance accuracy

0 Ω to 20 Ω: 0.0005 W 20 Ω to 400 Ω: 25 ppm

Resistance resolution

0 Ω to 20 Ω: 0.0001 Ω 20 Ω to 400 Ω: 0.001 Ω

Measurement period

1 second

Probe connection

4-wire with shield, 5-pin DIN connector

Calibration

NVLAP accredited (built-in reference input only), NIST-traceable calibration provided

HS Code

9031.80
