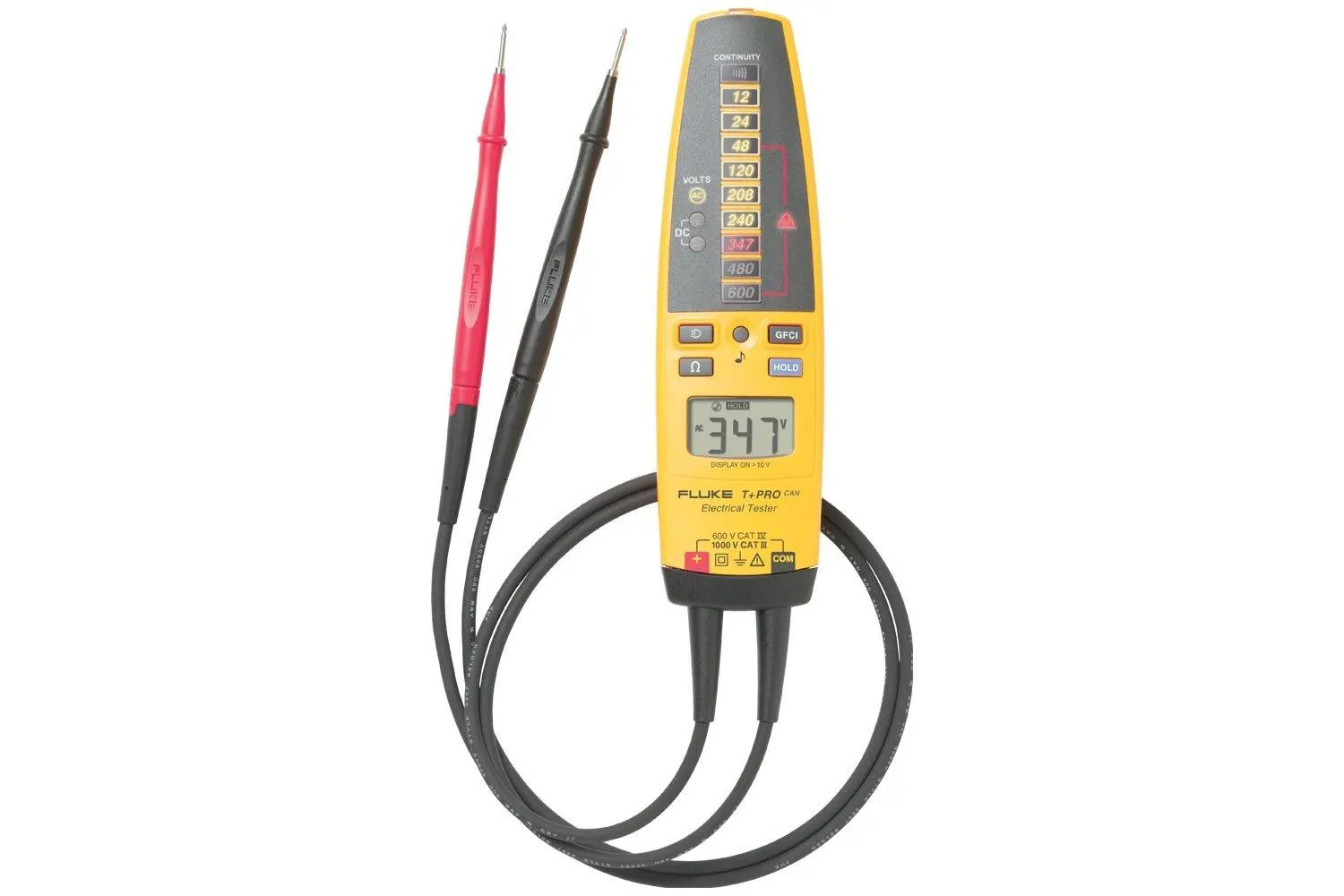

Fluke T+Pro Electrical Tester

The Fluke T+PRO Electrical Tester complies with NFPA 70E regulations by providing rapid indication of voltage levels, faster and safer than old-fashioned solenoid testers even without batteries. Tester helps troubleshoot three-phase systems.

Manufacturer part number (MPN)

2548117

Brand

Fluke

Category

Tools

Temperature Operating

-10°C to 55°C (14°F to 131°F)

Temperature Storage

-30°C to 60°C (-22°F to 140°F)

Relative Humidity 90%

0°C to 30°C (32°F to 86°F)

Relative Humidity 75%

30°C to 40°C (86°F to 104°F)

Relative Humidity 45%

40°C to 50°C (104°F to 122°F)

Altitude Operating

2,000 m (approx. 6,561.6 ft)

Altitude Storage

10,000 m (approx. 32,808.4 ft)

Battery Type/Life

AAA (2); 40 hours

Shock, Vibration

Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument

Safety

ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV Compliance to NFPA 70E1

AC Bandwidth

45 Hz to 66 Hz

Maximum Working Voltage

1000 V AC/DC

Maximum Measurable Voltage

600 V AC/DC

Duty Cycle

Indefinitely for voltages up to 240 V

Voltage Hazard LED

LEDs turn on at voltages > 30 V AC/DC ±35%

LED Voltage Indication Levels

12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V

LEDs

LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%

LCD Accuracy AC voltage

±(3% rdg + 2 digits)

LCD Accuracy DC voltage

±(2% rdg + 2 digits)

LCD Accuracy Resistance

±(5% rdg + 3 digits)

LCD Resolution

0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V

GFCI Test Current

100 V - 150 V @ 6 mA - 9 mA AC, 150 V - 240 V < 12 mA

Standard Input Test Current

< 5 mA

Size (H x W x L)

1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm )

Weight

9.9 oz (0.28 kg)

HS Code

9030.33
