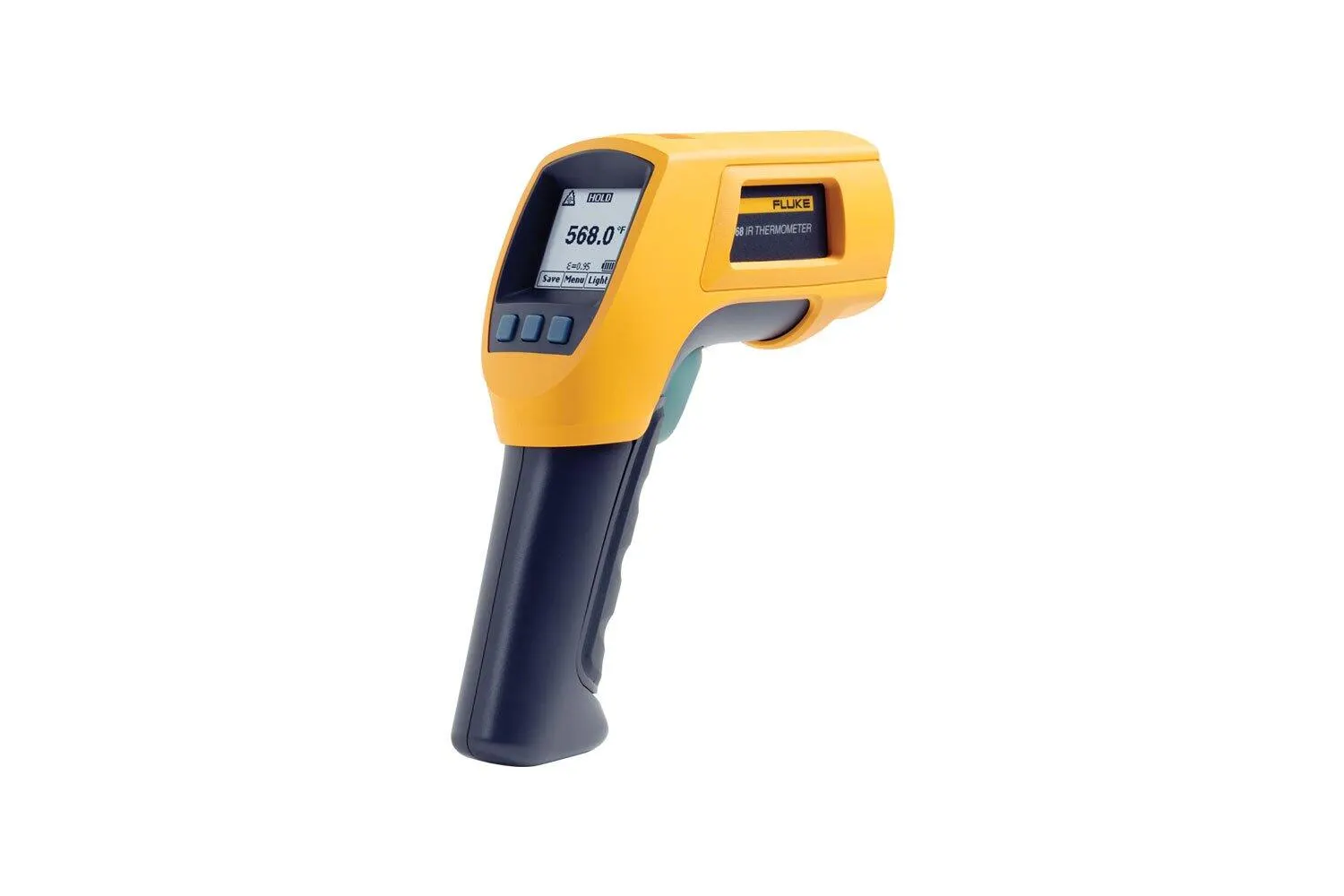

568 Contact & Infrared Temperature Gun

Experience the durability and versatility of the Fluke 568, a two-in-one temperature gun designed for tough industrial, electrical, and mechanical environments. Shop now to enhance your safety and efficiency.

Manufacturer part number (MPN)

2837806 Brand: Fluke Category: Tools Infrared temperature range: -40°C to 800°C (-40°F to 1472°F) Infrared accuracy: < 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); Display resolution: 0.1°C / 0.1°F Infrared spectral response: 8 µm to 14 µm Infrared response time: < 500 msec Thermocouple Type-K input temperature range: -270°C to 1372°C (-454°F to 2501°F) Thermocouple Type-K input accuracy -270°C to -40°C: ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F)) Thermocouple Type-K input accuracy -40°C to 1372°C: ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater Laser sighting: Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm minimum spot size: 19 mm (0.75 in) Emissivity adjustment: By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 Data storage with date/time stamp: 99 points PC interface and cable: USB 2.0 with FlukeView® Forms software Hi/Low alarms: Audible and two-color visual Min/Max/Avg/Dif: Yes Display: Dot matrix 98 x 96 pixels with function menus Backlight: Two levels, normal and extra bright for darker environments Trigger lock: Yes Switchable Celsius and Fahrenheit: Yes Power: 2 AA/LR6 Batteries and USB when used with a PC Battery life If used continuously: Laser and backlight on,12 hours; laser and backlight off, 100 hours Operating temperature: 0°C to 50°C (32°F to 122°F) Storage temperature: -20°C to 60°C (-40°F to 140°F) Bead thermocouple Type-K range: -40°C to 260°C (-40°F to 500°F) Bead thermocouple Type-K accuracy: ±1.1°C (2.0°F) from 0°C to 260°C (32°F to 500°F), typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)

HS Code

9025.19

• OEM-URL https://www.fluke.com/en-us/product/temperature-measurement/ir-thermometers/fluke-568
