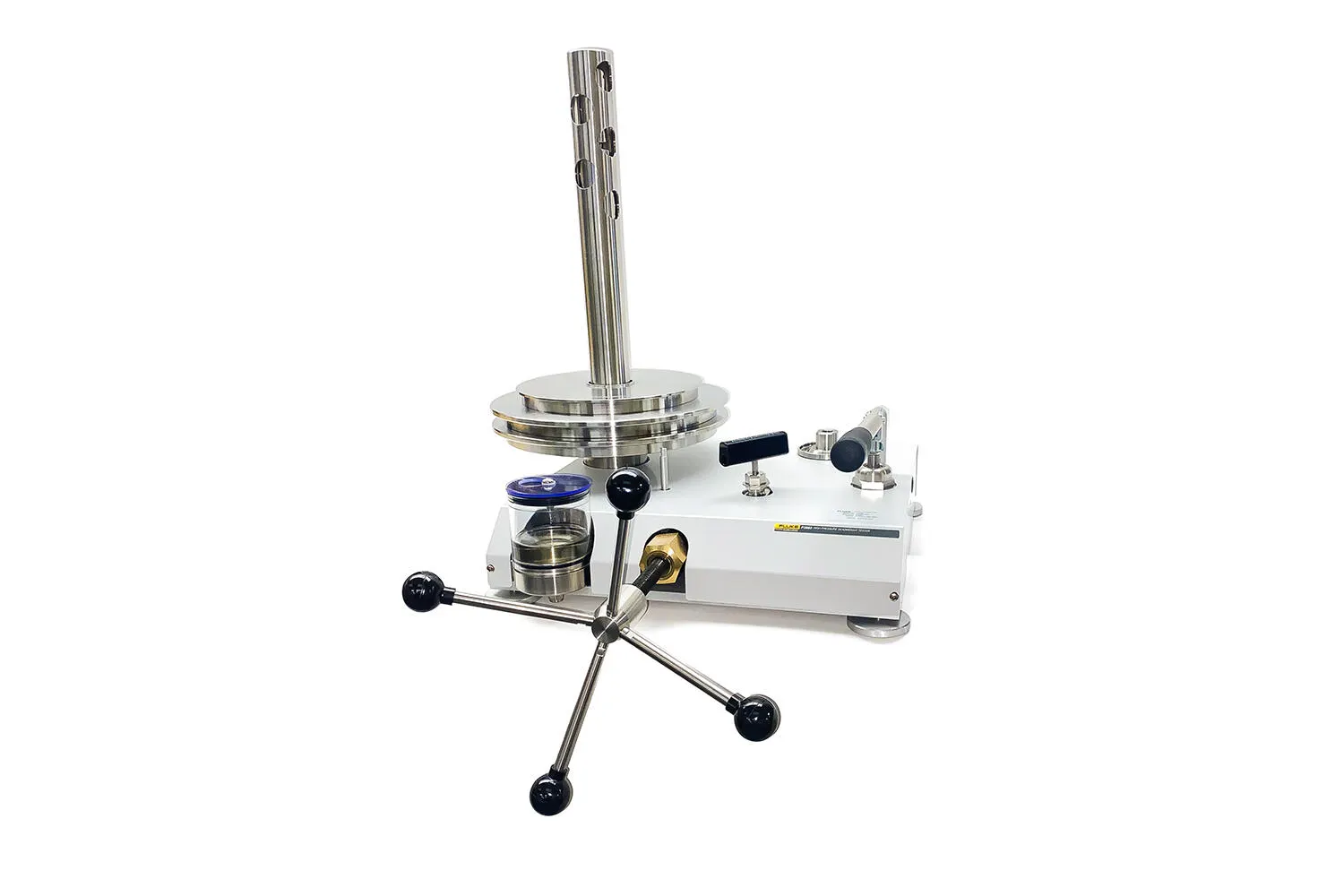

P3100 HP Series Very High-Pressure Hydraulic Deadweight Tester

Calibrate nearly any high-pressure sensing device with the P3100 HP Series Very High-Pressure Hydraulic Deadweight Tester.

Manufacturer part number (MPN)

6111241 Brand: Fluke Category: Tools P3117: 500 psi to 30 000 psi, or 40 bar to 2 000 bar, or 4 MPa to 200 Mpa P3118: 500 psi to 40 000 psi, or 40 bar to 2 600 bar, or 4 MPa to 260 Mpa P3119: 500 psi to 60 000 psi, or 40 bar to 4 000 bar, or 4 MPa to 400 Mpa Standard weight materials: Series 3 non-magnetic, austenitic, stainless steel Density: 7.8 g/cm3 Piston materials: Tungsten carbide with nickel binder Cylinder material: Tungsten carbide with cobalt binder Thermal coefficient of expansion: 11 ppm/°C Test port adaptors: DH500, equivalent to HiP 60-xxxx high pressure fittings (60,000 psi) for 1/4” and 3/8” tube sizes Weight: 23 lbs (10.5 kg) Dimensions (W x D x H): 18” x 20” x 20” (457 mm x 508 mm x 508 mm) Mass set weight: 100 lbs (45.5 kg) Reservoir volume: 150 cc Priming pump: Included with Standard 3117, 3118 and 3119 models minimum weight increments: 2 bar, 0.2 MPa, 20 psi Optional fine increment weights: minimum increments of 0.2 bar, 0.02 MPa, 2 psi Seal materials: Viton and Buna Operating fluid: Sebacate, our reference 3069551 (1 gallon standard) Shipping: Ships as a pallet and a crate

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/pressure-calibration/deadweight-testers/fluke-calibration-p3100-hp-series
