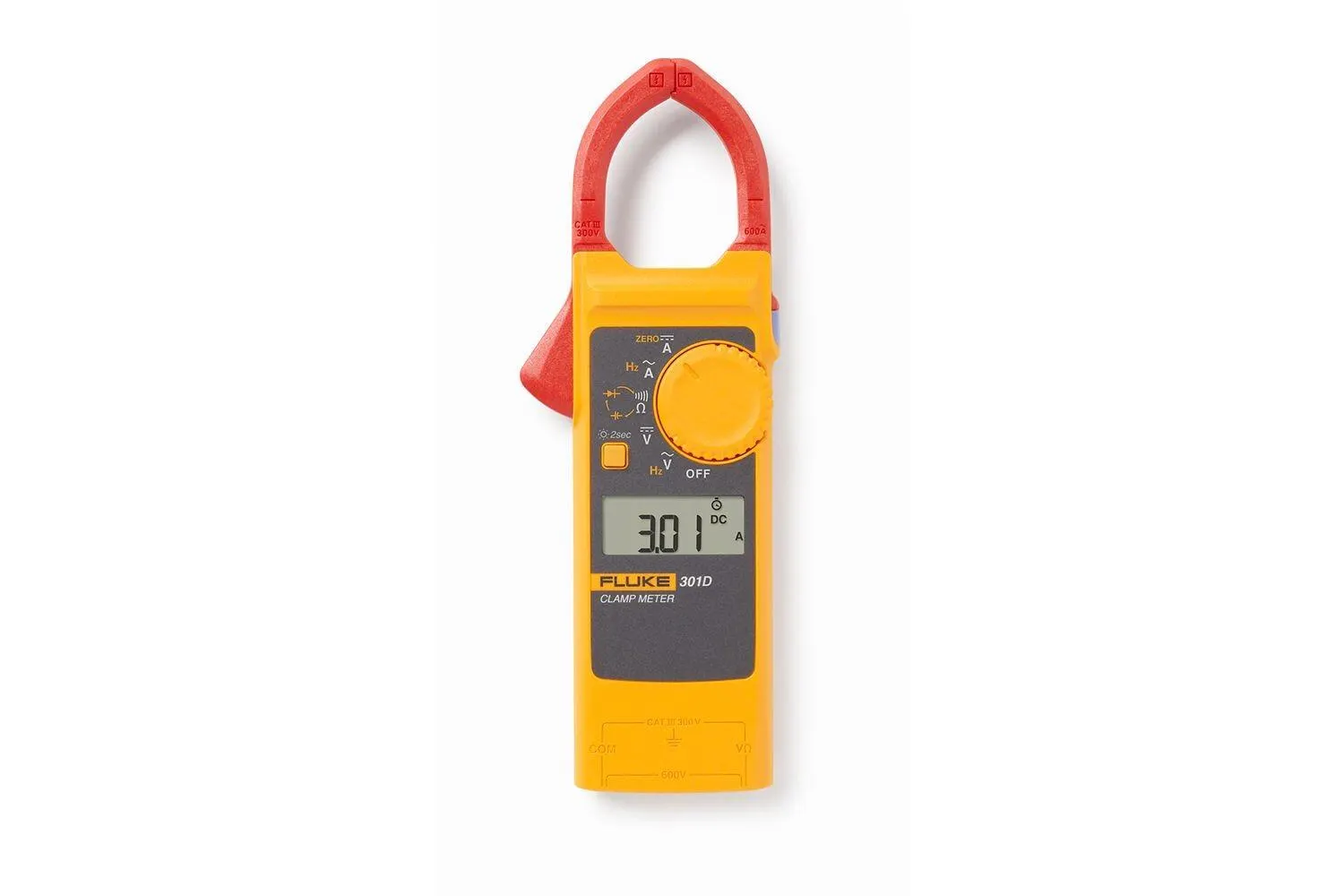

Fluke 301D AC/DC Clamp Meter

The slim and thin jaw can easily fit into tightly packed wires. The lightweight and compact design allows you to carry it around in your pocket

Manufacturer part number (MPN)

6016352 Brand: Fluke Category: Tools AC Current (45 to 400 Hz) Range: 60.00 A Resolution 0.01 A: 0.1 A Accuracy 2% + 10: 2% + 5 DC Current Range: 60.00 A AC Voltage (45 to 400 Hz) Range: 600.0 V AC Voltage (45 to 400 Hz) Resolution: 0.1 V AC Voltage (45 to 400 Hz) Accuracy: 1.5% + 5 DC Voltage Range: 600.0 V DC Voltage Resolution: 0.1 V DC Voltage Accuracy: 1% + 5 Resistance Range: 600.0 Ω 6.000 kΩ 60.00 kΩ Resistance Accuracy: 1% + 5 Voltage Frequency Range: 9.999 Hz 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz Voltage Frequency Accuracy: 0.1% + 3 Current Frequency Range: 45.0-400.0 Hz Current Frequency Accuracy: 0.1% + 3 Capacitance Range: 9.999 uF Accuracy 2% + 5: 5% + 5 Diode Range: 3.000 V Diode Accuracy: 10% Continuity: ● Hold: ● Backlight: ● Safety rating: CAT III 300 V Weight: 154 g Size: 190 mm x 52 mm x 16 mm Jaw Opening: 34 mm Clamp Arm Size: 10 mm X 10 mm Battery: (2) AAA batteries Warranty: 2 year Maximum Voltage between any Terminal and Earth Ground: 300 V Maximum Differential Voltage between V/Ω and COM Terminals: 600 V Display (LCD): 6000 counts, updates 3 times per second Battery Type: 2 AAA, IEC LR03 Battery Life: 500 hours minimum Auto Power Off Time: 20 minutes Temperature: Operating: -10 °C to 50 °C； Relative Humidity: Operating Humidity: Non condensing (<10°C); ≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C; ≤ 45 % RH at 40 °C to 50 °C; Altitude: Operating: 2000 m; Storage: 12000 m Temperature Coefficient: 0.1 x (specified accuracy) /°C (28 °C) Dimensions (H x W x L): 190 mm x 52 mm x 16 mm Ingress Protection Rating: IP30 Safety: IEC 61010--1, IEC61010-2-032 CAT III 300 V, Pollution Degree 2 Electromagnetic Environment: IEC 61326--1: Portable

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/clamp-meters/fluke-301d
