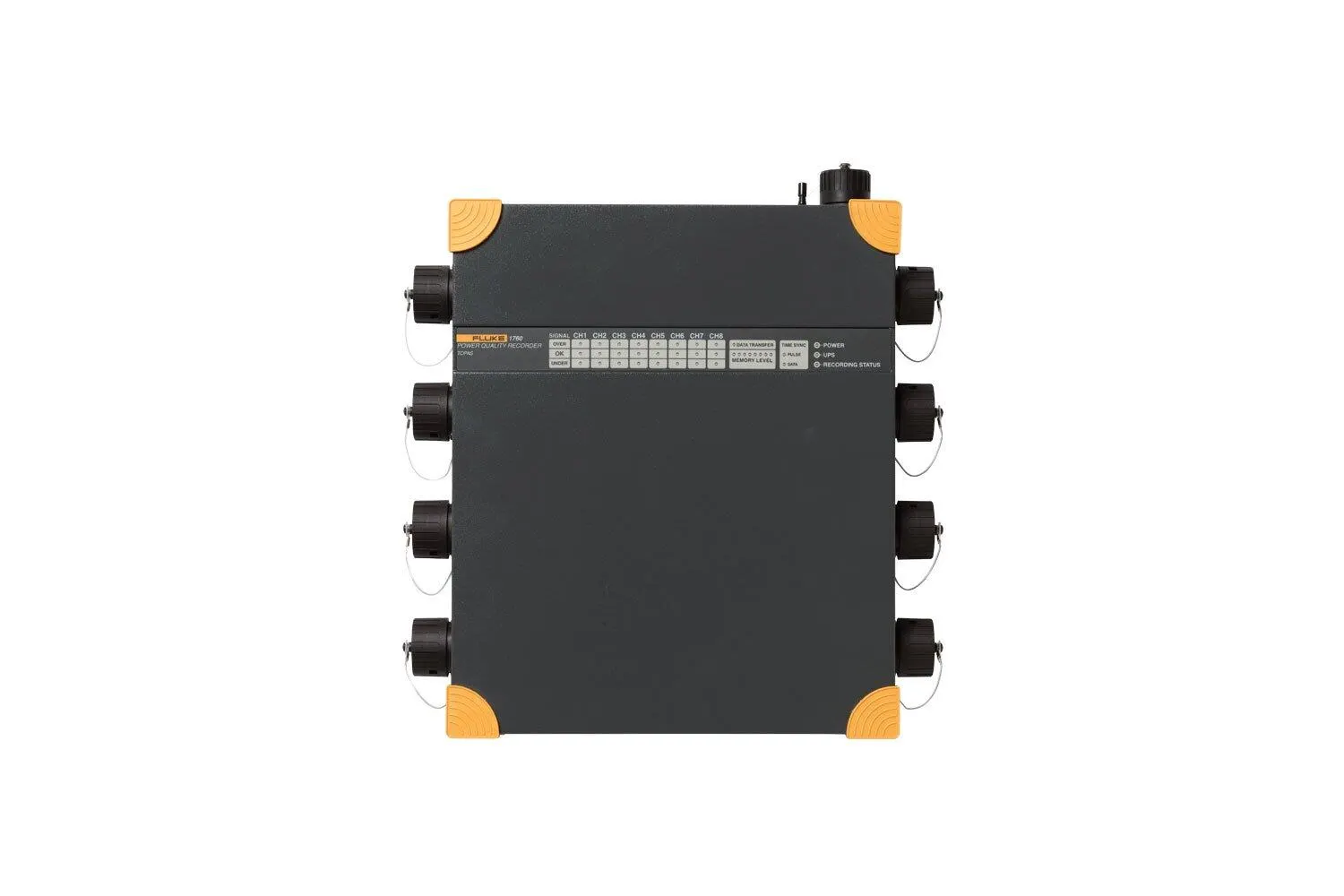

Fluke 1760 Basic Three-Phase Power Quality Recorder

Power Quality Monitor – Fluke’s three-phase power quality recorder is fully compliant to IEC 61000-4-30 Class-A and is consistent with compliance testing.

Manufacturer part number (MPN)

2630732

Brand

Fluke

Category

Tools

Statistical evaluation

Power quality statistics according to EN50160 and DISDIP tables like ITIC, CEBEMA, ANSI

Event strip

Dips, swells and interruptions are detected and stored in the event strip. Also any trigger which fires generates an event added to this strip.

Triggered recordings rms

Aggregation time is adjustable between 10 ms (1/2 cycle), 20 ms (1 cycle), 200 ms (10/12 cycles) or 3 sec (150/180 cycles).

Triggered recordings Oscilloscope

Sample rate is 10.24 kHz for all 8 channels

Triggered recordings Mains signalling

Phases and N-conductor, Voltage and current

Triggered recordings Online mode

Variable refresh rate. This feature allows verification of instrument set up and delivers a quick overview of oscilloscope, transients and events.

Intrinsic uncertainty

refers to reference conditions and is guaranteed for two years

Quality system

developed, manufactured as per ISO 9001: 2000

Environment conditions Operating temp. range

0°C to +50°C; 32°F to +122°F

Environment conditions Working temp. range

-20°C to +50°C; -4°F to +122°F

Environment conditions Storage temp. range

20°C to +60°C; -4°F to 140°F

Environment conditions Reference temperature

23°C ±2 K; 74°F ±2 K

Environment conditions Climatic class

B2 (IEC 654-1), -20°C to +50°C; -4°F to +122°F

Environment conditions Max. operating altitude

2000 m: max. 600 V CAT IV1, power supply: 300 V CAT III 5000 m: max 600 V CAT III1, power supply: 300 V CAT II

Reference conditions Environment temp.

23°C ±2 K ; 74°F ±2 K

Reference conditions Power supply

230 V ±10%

Reference conditions Power frequency

50 Hz / 60 Hz

Reference conditions Signal

declared input voltage Udin

Reference conditions Averaging

10 minute intervals

Housing

Insulated, robust plastics housing

EMC Emission

Class-A as per IEC/EN 61326-1

EMC Immunity

IEC/EN 61326-1

Power supply Range

AC: 83 V to 264 V, 45 to 65 Hz

Power supply Safety

IEC/EN 61010-1 2nd edition

Power supply Power consumption

NIMH, 7.2 V, 2.7 Ah

Power supply Display

Fluke 1760 features LED indicators for the status of the 8 channels, phase sequence, power supply (mains or accumulator), memory usage, time synchronization, and data transfer.

Power supply Power LED

Permanent light: normal power supply from mains. OFF: supply via internal accumulator in case of a power failure.

Channel LEDs 3-color LEDs per channel for

Overload condition Under load condition

Data memory

2 GB Flash memory depending on model

Memory model

Linear

Interfaces

Ethernet (100 MB/s), compatible to Windows® 98/ME/NT/2000/XP RS 232, external modem via RS 232

Baud rate for RS 232

9600 Baud to 115 kBaud

Dimensions (H x W x D)

325 x 300 x 65 mm; 2.8 x 11.8 x 2.6 in

Weight

appr. 4.9 kg; 10.8 lbs (without accessories)

Warranty

2 years

Calibration interval

1 year recommended for Class-A, otherwise 2 years

Range for 50 Hz systems

50 Hz ±15% (42.5 Hz to 57.5 Hz)

Range for 60 Hz systems

60 Hz ±15% (51 Hz to 69 Hz)

Resolution

16 ppm

Sampling frequency for 50 Hz power frequency

10.24 kHz, The sampling rate is synchronized to mains frequency.

Uncertainty for frequency measurements

< 20 ppm

Uncertainty of internal clock

< 1s / day

Measurement intervals

Aggregation of the interval values as per IEC 61000-4-30 Class-A

Min-, Max-values

Half cycle, e.g.: 10 ms rms values at 50Hz

Transients

Sample rate 100 kHz to 10 MHz per channel

Harmonics

as per IEC 61000-4-7:2002: 200 ms

Flicker

as per EN 61000-4-15:2003: 10 min (Pst), 2 h (Plt)

Number of inputs

8 galvanically isolated inputs for voltage and current measurements.

Sensor safety

up to 600 V CAT IV depending on sensor

Basic safety

300 V CAT III

Nominal voltage (rms)

100 mV

Range (peak value)

280 mV

Overload capacity (rms)

1000 V, continuously

Voltage rise rate

max. 15 kV / µs

Input resistance

1 MΩ

Input capacitance

5 pF

Uncertainty at reference conditions

Uncertainty including the voltage sensors is in compliance with IEC 61000-4-30 Class-A. All voltage sensors are suitable for DC up to 5 kHz

With Sensor 1000 V

0,1% at Udin = 480 V and 600 V P-N

Sensor 600 V

0,1% at Udin = 230 V P-N

Intrinsic uncertainty for harmonics

Class I as per EN 61000-4-7:2002

Reference conditions

23°C ±2 K < 60% rH; 74°F ±2 K < 60% rH

Temperature drift

100 ppm / K

Aging

< 0.05% / year

Common mode rejection

> 100 dB at 50 Hz

Noise

Noise voltage, input short-circuited: < 40 µV

DC

±(0.2% rdg + 0.1% sensor)

HS Code

9030.84
