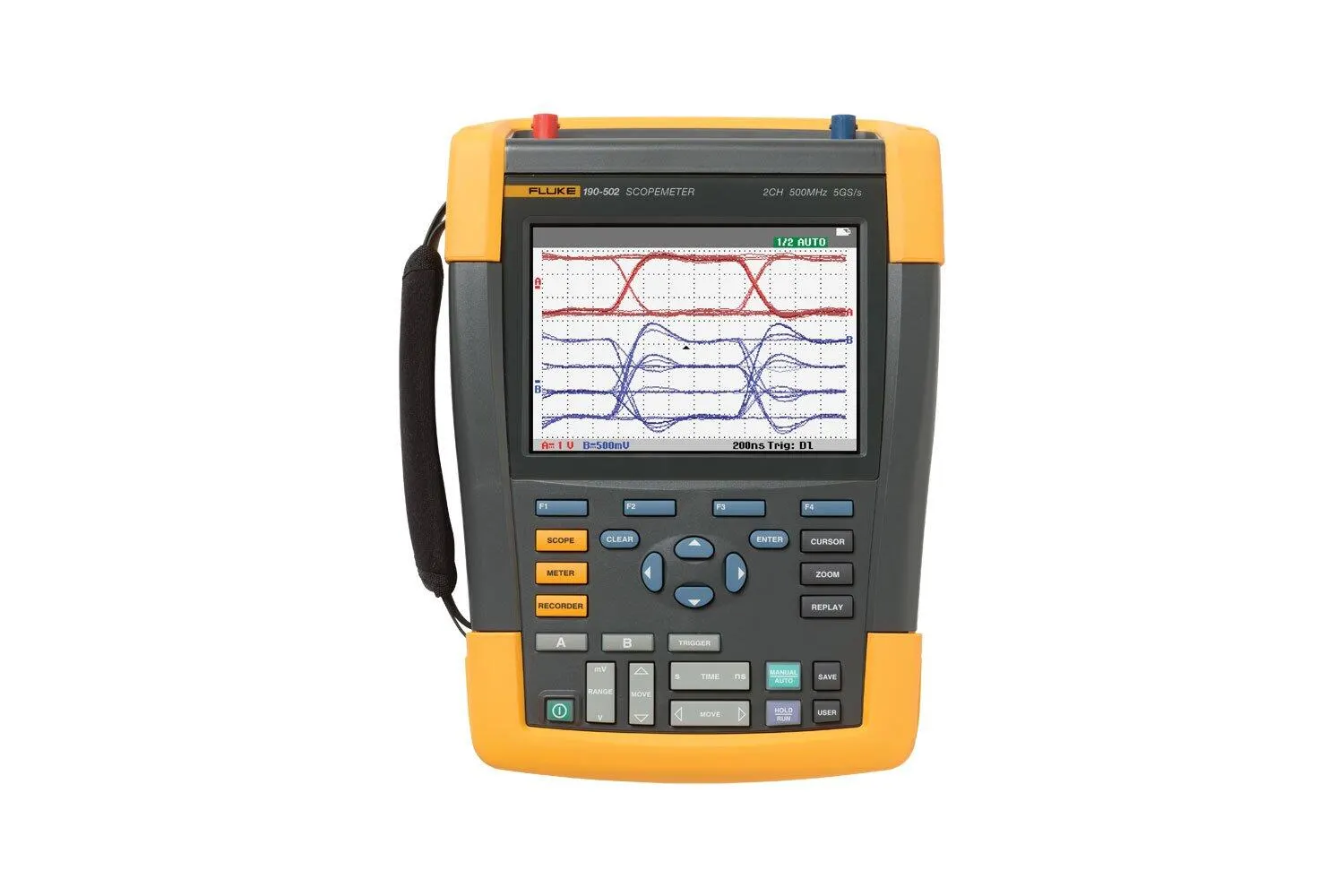

Fluke 190-502 500 MHz ScopeMeter® Test Tool
Pricing
Request a quote
We reply within 24 hours
Product Description
5 GS/s sampling rate, 500 MHz bandwidth with 2 input channels and DMM for electronic field service applications.
Technical Specifications
- Manufacturer part number (MPN)
- 4025645
- Brand
- Fluke
- Category
- Tools
- THS3000
- Fluke 190 ScopeMeter
- Platform
- The Tektronix THS 3000 and Fluke 190 ScopeMeter Test Tool share the same electronics, with some feature differences highlighted below
- Safety rating CAT III
- CAT IV
- IP rating according to IEC529 IP 41
- IP 51
- Software OpenChoice
- FlukeView®
- Probe size Lab size
- Industrial size
- Bandwidth
- 500 MHz
- Number of channels
- 500 MHz: 2 channels
- Real-time sample rate
- 5 GS
- Inputs
- 2 scope plus DMM input
- Independently floating isolated inputs
- Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground
- Timebase range
- 10 ns - 2 min/div
- Input sensitivity
- 2 mV-100 V/div
- Trigger types
- Connect-and-View™, Free Run, Single Shot, Edge, Delay, Dual Slope, Video, Video Line, Selectable pulse width, N-Cycle
- Trigger source
- Any scope input channel, or external via DMM input
- Glitch capture
- 8 ns
- Scope measurements
- Cursor: 7
- Maximum record length
- ScopeRecord mode: 30,000 pts
- Persistence
- Digital persistence giving analog oscilloscope-like waveform decay
- Maximum resolution
- 5000 counts
- Measurements
- VDC, VAC rms, VAC + DC rms, Resistance, Continuity, Diode Test, Current (through clamp or shunt), Temperature °C or °F (using optional converter)
- Memory
- 2 Channel
- Display
- 153 mm full color LCD with fast update rate
- Operating temperature
- 0 °C to 40 °C Including Batteries
- Storage temperature
- -20 °C to +60 °C
- Operating altitude
- Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V
- Electrical safety
- 1,000 V CAT III/600V CAT IV (EN61010-1)
- Size
- 270 x 190 x 70 mm
- Weight
- 2.2 kg
- Warranty
- 3-years on main instrument, 1-year on accessories
- Li-Ion battery
- BP290 2400 mAh Li-ion battery up to 4 hours included standard
Standards & Compliance
- HS Code
- 9030.20
