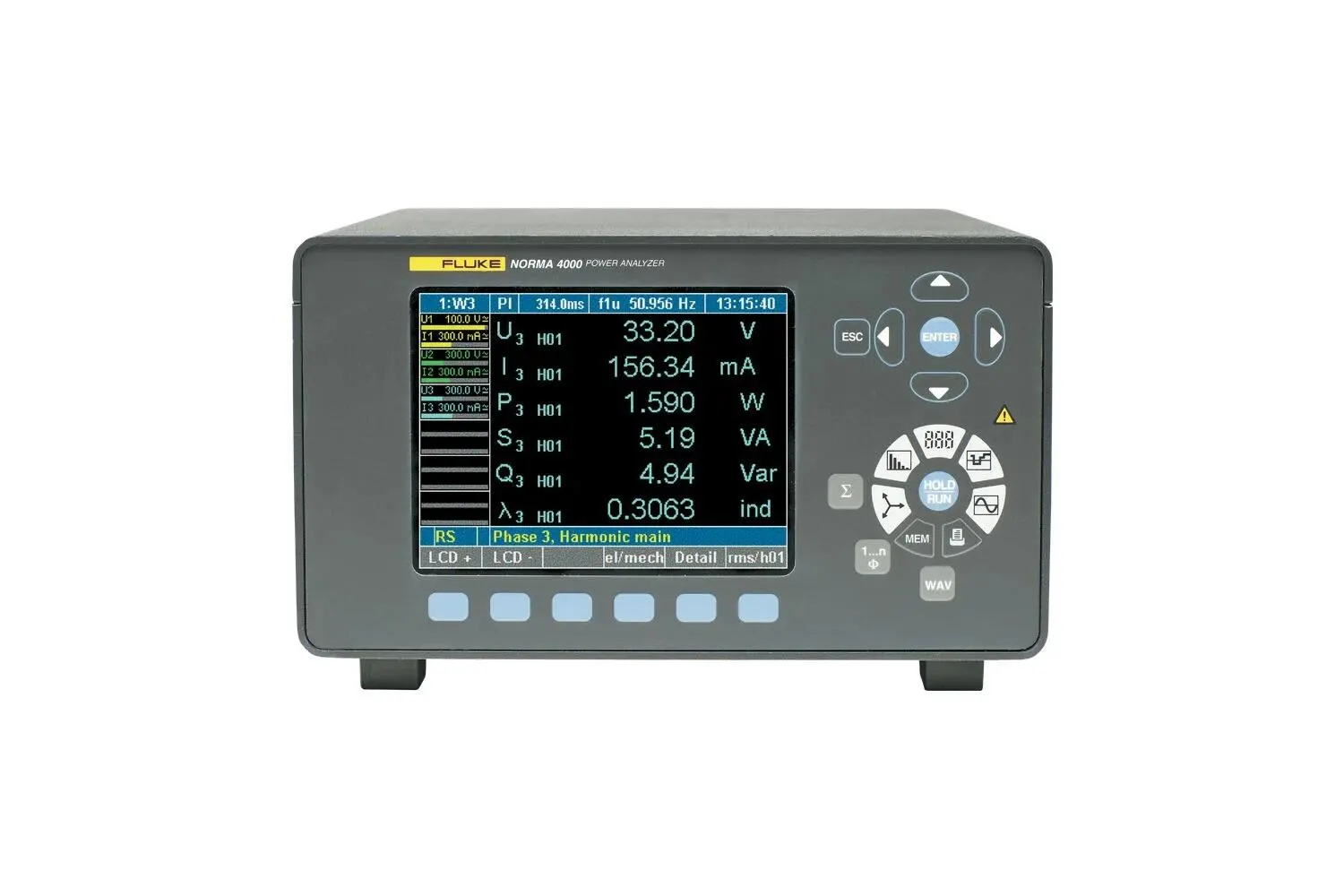

Fluke Norma 4000 Power Analyzers

Fluke Norma Power Analyzers deliver precision measurements of 1 or 3 phase current and voltage, harmonics analysis, and Fast Fourier Transformation analysis.

Manufacturer part number (MPN)

2539612

Brand

Fluke

Category

Tools

Number of Phases

1 to 3

Weight

Approx. 5 kg (11 lb)

Size

150 x 237 x 315 mm

On-board Printer

No

Display

Color, 5.7 in / 144 mm - 320 x 240 pixel

Bandwidth

DC to 3 MHz or DC to 10 MHz depending on input module

Basic Accuracy

0.2%, 0.1% or 0.03% depending on input modules

Sampling Rate

0.33 MHz or 1 MHz depending on input modules

Voltage Input Range

0.3 V to 1000 V

Current Input Range (direct, not via shunt)

0.03 mA to 20 A depending on input module

Memory for Configurations

4 MB

Memory for Settings

0.5 MB

Fast Fourier Transformation (FFT)

To the 40th harmonic

RS232/USB Interface

Standard

Digital Oscilloscope (DSO)

Simultaneous display of up to 3 measured values on sample level. Quick view of curve form and distortion.

Integration function (energy)

Simultaneous display of up to 6 configurable numeric values. Start/Stop conditions and positive negative direction available.

Vector Display

Vector display of HO1 up to 6 signals. For easy testing of the right connection of the instrument and quick overview of the phase angle of each signal.

Recorder

Display of average values over time for trend determination.

RAM data memory

Storing of sample and average values; setting of start and stop conditions.

Configuration

Set up the analyzer to measure and display data in the format required.

Working Temperature Range

5°C to 35°C (41°F to 95°F)

Storage Temperature Range

-20°C to 50°C (-4°F to 122°F)

Housing Material

Fluke Norma Power Analyzers are extremely compact and equipped with a solid metal case to meet stringent EMC requirements.

Climatic Class

KYG DIN 40040, max. 85% relative humidity, non-condensing.

Power supply

85 V AC to 264 V AC, 50 Hz to 60 Hz, DC 100 to 260 V, approx. 40 VA European plug with switch. Binding post for current available on some models.

Measuring Inputs

Safety sockets 4 mm, 2 for each input. External shunt connection over BNC socket.

Operation

Membrane keyboard with cursor – function keys and direct functions.

Connections

Rear panel of the 3-phase Analyzer

Range

DC and 0.2 Hz to sample rate

Accuracy

±0.01% of measured value (reading)

Options

IEEE 488.2 / 1 MBit/s

Electrical Safety

EN 61010-1 / 2nd Edition 1000 V CAT II (600V CAT III)

Maximum inputs

For voltage inputs Measurement range 1000 Veff, 2 kVpeak

Test voltage Net input

case (protective conductor): 1.5 KV AC

Test voltage Net connection

Measurement input: 5.4 kV AC

Test voltage Measurement inputs

Case: 3.3 kV AC

Test voltage Measurement input

input: 5.4 kV

Electromagnetic susceptibility Emission

IEC 61326-1, EN 50081-1, EN 55011 Class B

Electromagnetic susceptibility Immunity

IEC 61326-1 / Annex A (industrial sector), EN 50082-1

PP42 Accuracy

0.2% (0.1% rd + 0.1% rg)

PP42 Current range

20 A

PP42 Sampling rate

341 kHz

PP42 Bandwidth

3 MHz

PP50 Accuracy

0.1% (0.05% rd + 0.05% rg)

PP50 Current range

10 A

PP50 Sampling rate

1 MHz

PP50 Bandwidth

10 MHz

PP54 Accuracy

0.1% (0.05% rd + 0.05% rg)

PP54 Current range

10 A

PP54 Sampling rate

341 kHz

PP54 Bandwidth

3 MHz

PP64 Accuracy

0.03% (0.02% rg + 0.01% rg)

PP64 Current range

10 A

PP64 Sampling rate

341 kHz

PP64 Bandwidth

3 MHz

Continuous load (Imin) Range (Imax)

0.3 A

Nominal current (calibration point)

32 A

Basic accuracy at calibration point [%]

± 0.03

Basic accuracy at nominal current [%]

± 0.03

Nominal voltage drop [V]

320 mV

Nominal resistance [Ohm]

10 mΩ

Short time overrange (5s load 15s interval)

100A/ 1s-5s

Angular accuracy [°/kHz]

± 0.1

Temperature coefficient [ppm/K]

≤10

Weight (kg / lbs)

0.62 /1.36

HS Code

9030.84
