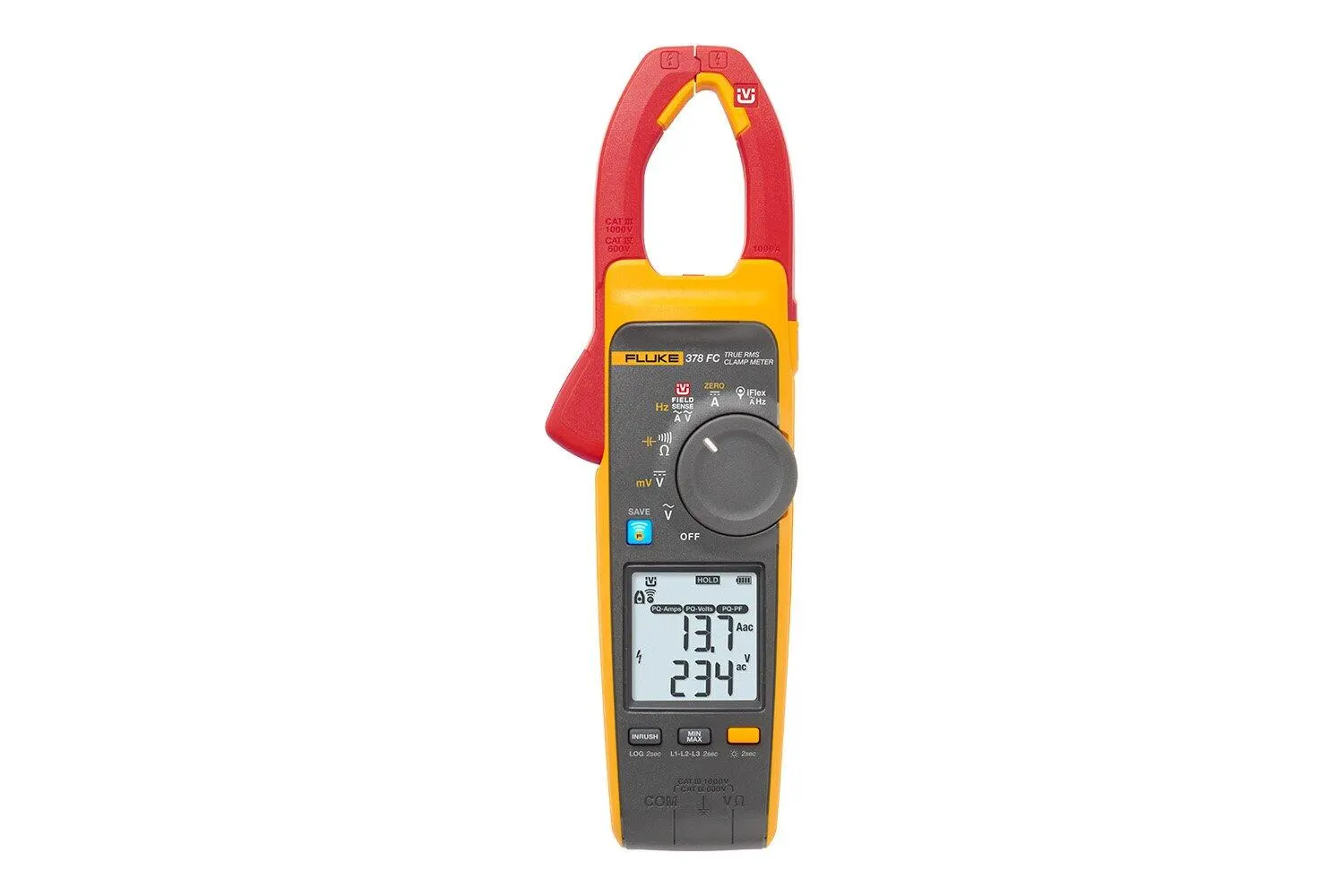

Fluke 378 FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex

Non-contact voltage True-rms clamp meter with power quality function. Get Fluke 378 FC price, manual, reviews, how to use and specifications.

Manufacturer part number (MPN)

5111812

Brand

Fluke

Category

Tools

Battery Type

2 AA IEC LR6 alkaline

Battery Life

200 hour

Display

Dual readout

Automatic Power Off

20 minutes

Range

999.9 A

Resolution

0.1 A

Accuracy

2 % ±5 digits (45 Hz to 66 Hz)

Crest Factor (50/60 Hz)

3 @ 500 A 2.5 @ 600 A 1.42 @ 1000 A Add 2 % for C.F. >2

Distance from Optimum

i2500-10 Flex

A 0.5 in (12.7 mm)

1.4 in (35.6 mm)

B 0.8 in (20.3 mm)

2.0 in (50.8 mm)

C 1.4 in (35.6 mm)

2.5 in (63.5 mm)

Accuracy ≤4/0 AWG

3 % ±5 digits (45 Hz to 66 Hz)

Trigger Level

5 Hz to 10 Hz, ≥10 A 10 Hz to 100 Hz, ≥ 5 A 100 Hz to 500 Hz, ≥ 10 A

Size (L x W x H)

274 mm x 86 mm x 47 mm

Weight (with Batteries)

463 g

Jaw Opening

34 mm

Flexible Current Probe Diameter

7.5 mm

Rogowski Coil Length

450 mm

Operating Temperature

-10 °C to 50 °C

Storage Temperature

-40 °C to 60 °C

Operating Humidity (without condensation)

Non condensing (<10 °C) ≤90 % RH (10 °C to 30 °C) ≤75 % RH (30 °C to 40 °C) ≤45 % RH (40 °C to 50 °C)

Temperature Coefficients

Add 0.1 x specified accuracy for each degree C >28 °C or <18 °C

Ingress Protection

IEC 60529: IP30 (jaw closed)

Operating Altitude

2000 m

Storage Altitude

12 000 m

International

IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2, CISPR 11: Group 1, Class B

Korea (KCC)

Class A equipment (Industrial Broadcast & Communications Equipment)

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

General

IEC 61010-1: Pollution degree 2

Measurement

IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V

Current Clamp for Leakage Current Measurements

IEC 61557-13: Class 2, ≤30 A/m

Radio Frequency Certification

FCC ID: T68-FBLE IC:6627A-FBLE

Frequency Range

2405 MHz to 2480 MHz

Output Power

<100 mW

HS Code

9030.33
