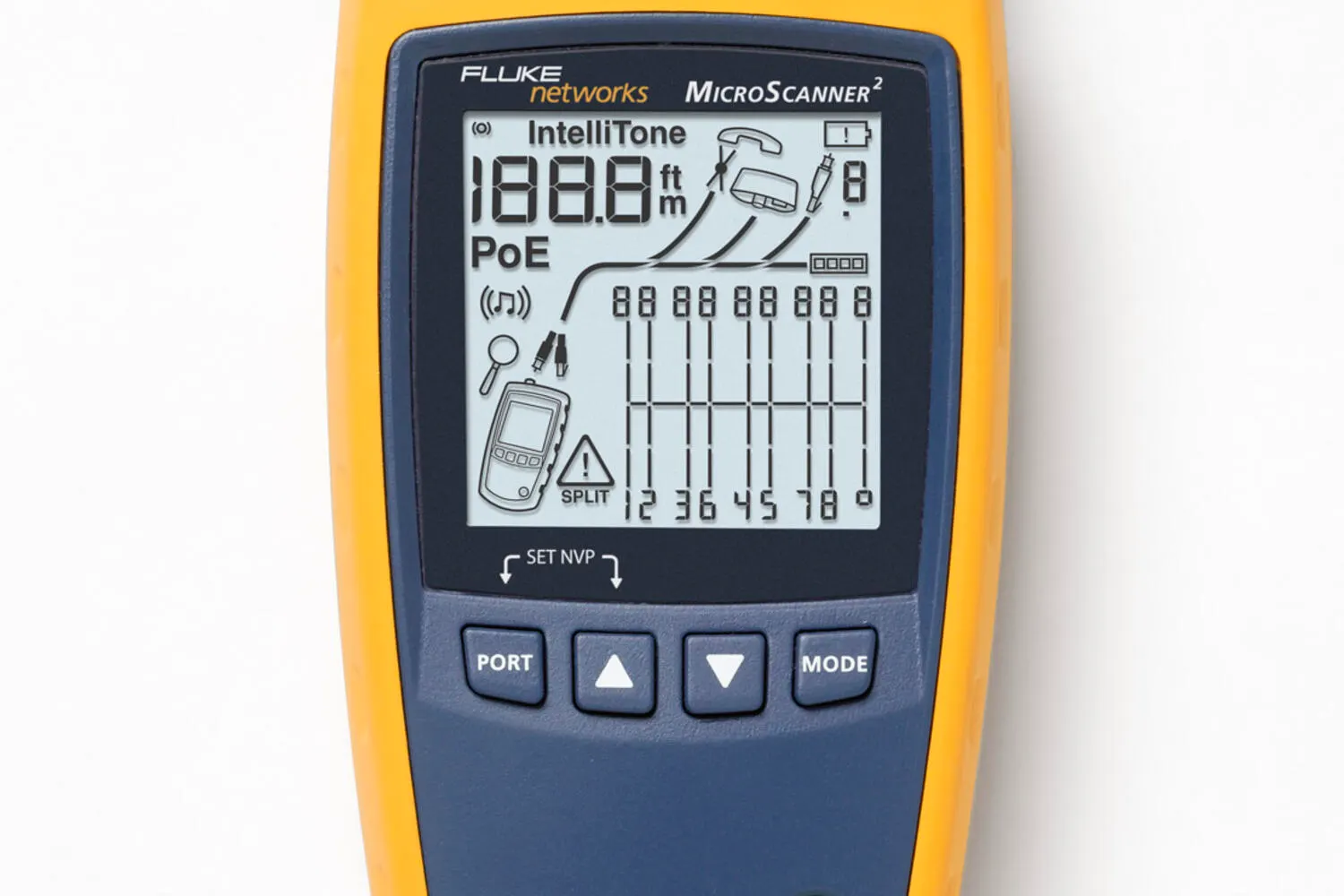

Fluke Networks MicroScanner™ 2 Industrial Ethernet Cable Verifier

MicroScanner™ 2 Industrial Ethernet Cable Verifier kit for troubleshooting operational networks. Includes Multi-Connector adapter and patch cables. See details here.

Manufacturer part number (MPN)

5258578

Brand

Fluke

Category

Tools

Operating temperature

32 °F to 113 °F (0 °C to 45 °C)

Storage temperature

-4 °F to +140 °F (-20 °C to +60 °C)

Operating relative humidity (% RH without condensation)

90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C)

Shock and Vibration

Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached

Safety

IEC 61010-1 3rd Edition

Altitude

4,000 m; Storage: 12,000 m

EMC

IEC 61326-1

Test connectors

Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable.

Power

Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD

Display

Monochrome LCD with backlight

Cable test

Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. Displays results on one screen.

Tone

Generates IntelliTone™ and normal analog toning signals

PoE

MicroScanner2: Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices

Cable types tested

Twisted pair: UTP, FTP, SSTP Coaxial (MicroScanner2): 75 Ω, 50 Ω, 93 Ω

Length test

Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error. Calibration: User-settable NVP for twisted pair and coax (MicroScanner2). Can determine actual NVP with known length of cable.

Wiremap test

Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.

Ethernet port detection

MicroScanner2: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps.

Tone generator

Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe.

HS Code

9030.40
