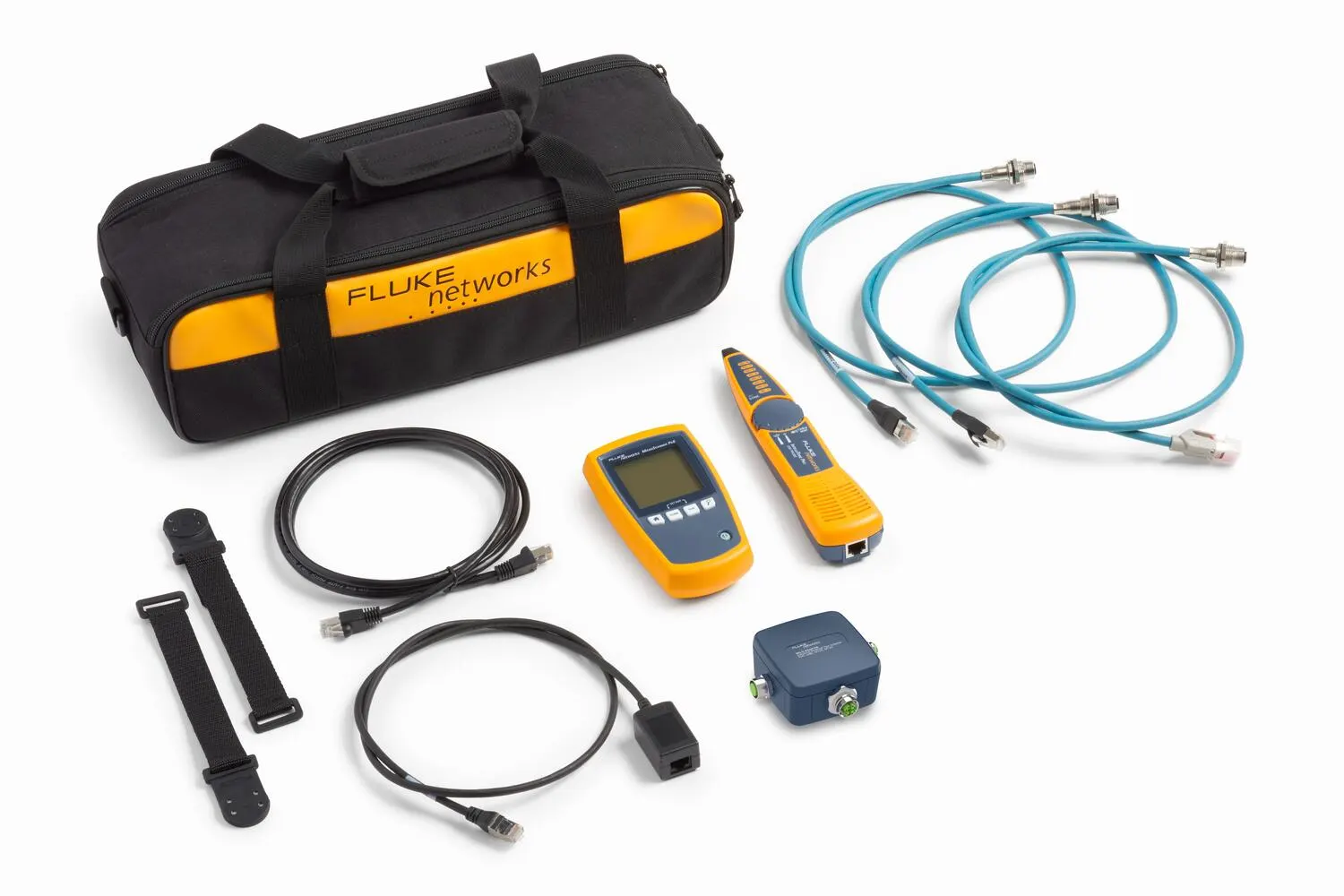

Fluke Networks MicroScanner™ PoE Industrial Ethernet Cable Verifier Kit

The MicroScanner™ PoE quickly determines if a problem is caused by a bathroom or unconnected cable, insufficient power, or a Powered Device. See what's in the kit.

Manufacturer part number (MPN)

5258569

Brand

Fluke

Category

Tools

Operating temperature

32 °F to 113 °F (0 °C to 45 °C)

Storage temperature

-4 °F to +140 °F (-20 °C to +60 °C)

Operating relative humidity (% RH without condensation)

90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C)

Shock and Vibration

Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached

Safety

IEC 61010-1 3rd Edition

Altitude

4,000 m; Storage: 12,000 m

EMC

IEC 61326-1

Test connectors

Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs.

Power

Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD

Display

Monochrome LCD with backlight

Cable test

Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner™ PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen.

Tone

Generates IntelliTone™ and normal analog toning signals

PoE

MicroScanner™ PoE: Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco’s Universal Power over Ethernet) compatible PoE devices

Cable types tested

Twisted pair: UTP, FTP, SSTP

Length test

Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Typical accuracy: ± 4% or 0.6 m (2 ft) whichever is greater. NVP uncertainty is an additional error. Calibration: User-settable NVP for twisted pair. Can determine actual NVP with known length of cable.

Wiremap test

Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults.

Ethernet port detection

MicroScanner™ PoE: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps.

Tone generator

Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe.

HS Code

9030.40
